Details

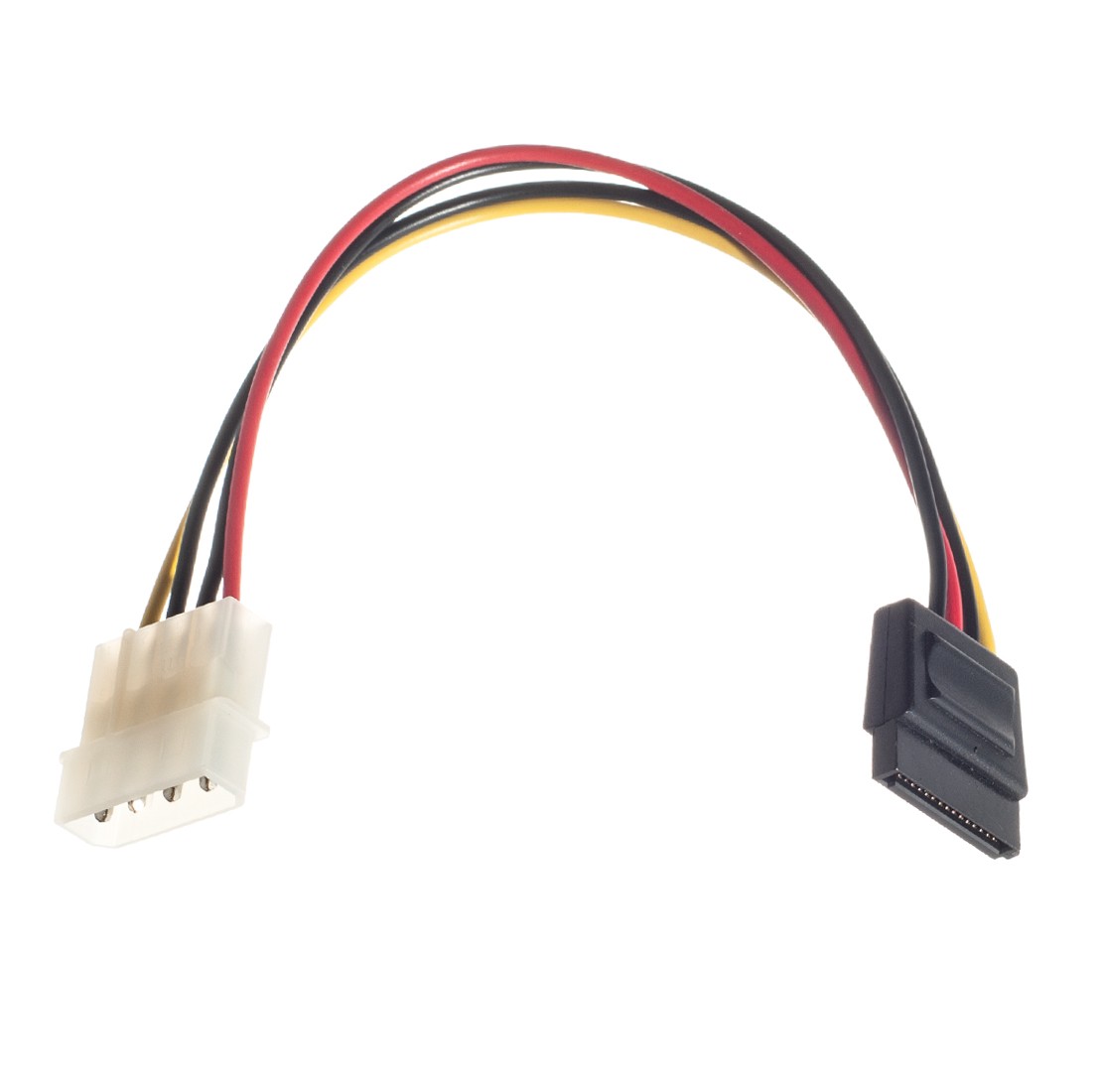

This 10 cm adapter powers a SATA device from a 4-pin Molex plug of the power supply. The male 4-pin Molex connector plugs into the Molex cable, and the SATA power connector feeds a drive, fan hub, pump or any other SATA powered device.
Properties
- Type
- Power adapter cable
- Input

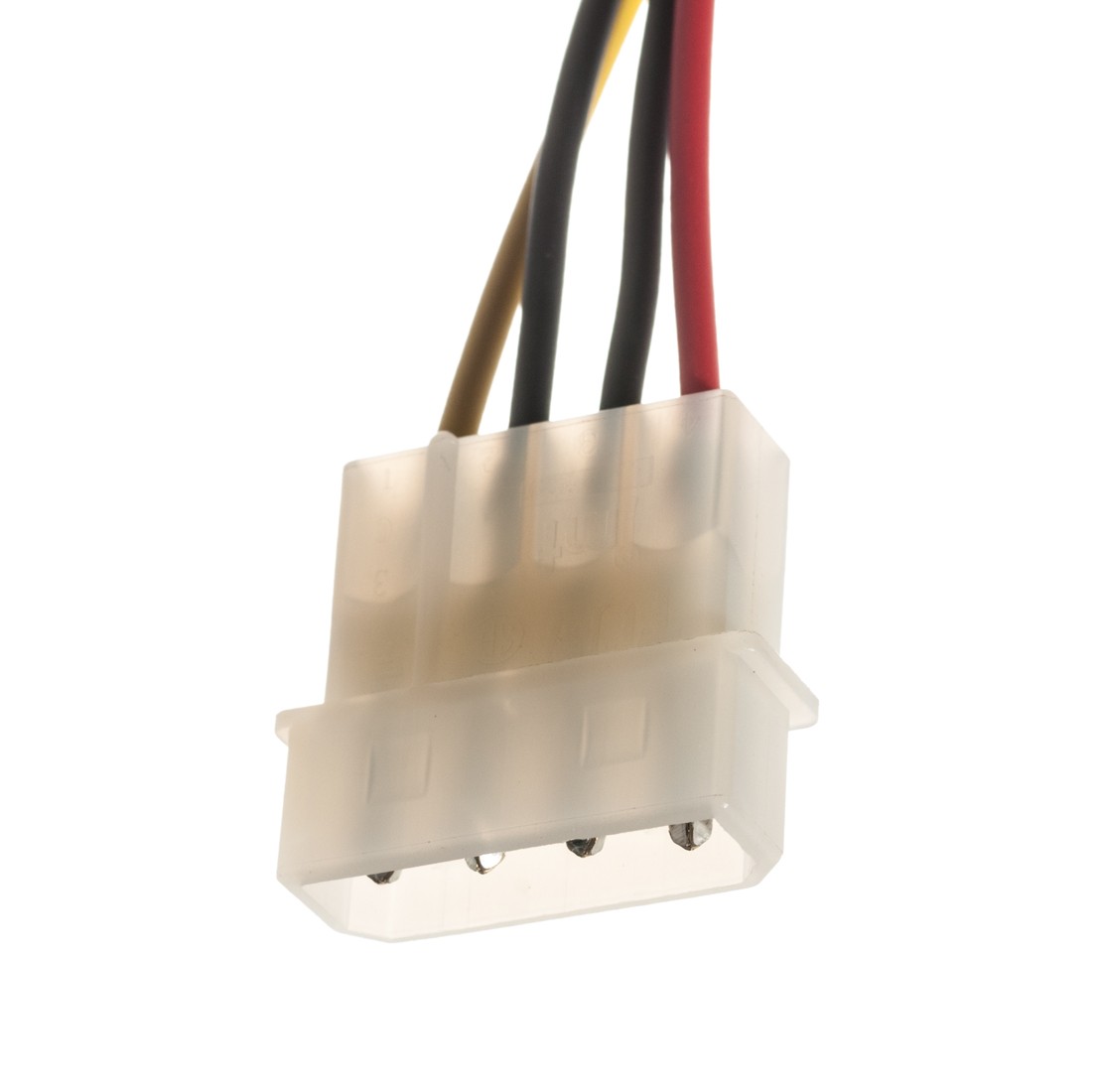

- 4-pin Molex, male
- Output

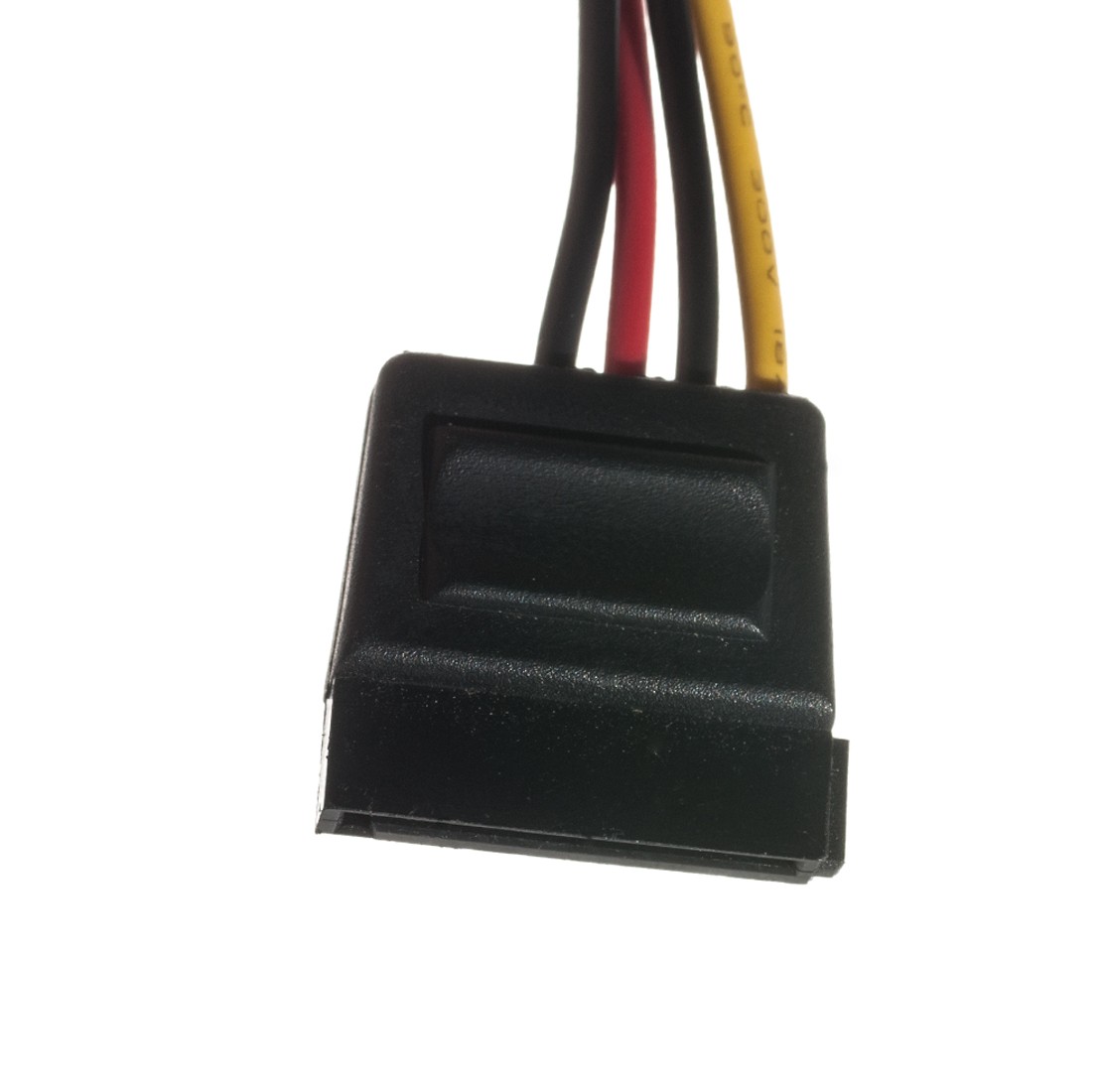

- SATA power, female
- Length
- 10 cm
- Pieces in the pack
- 1
SATA power from a Molex plug
Many power supplies, and many older ones especially, have spare Molex plugs but run out of SATA plugs. The short adapter turns a free Molex plug into a SATA plug right where it is needed.
No 3.3V line
A 4-pin Molex connector carries 12V and 5V only, so the SATA connector of this adapter has no 3.3V supply. Drives, fan hubs and pumps work normally; the rare device that needs 3.3V from the SATA plug does not.
Technical data
| Model | 4M-SATA-10 |
| Input | 4-pin Molex peripheral connector, male |
| Output | SATA power, female |
| Length | 10 cm |
| Wires | Yellow, black, black, red |
| Supply lines | 12V and 5V |
In the box
- 1x 4-Pin Molex Peripheral Power Connector to SATA Power Adapter
