Details
This compact adapter turns a 15-pin SATA power plug of the power supply into a 4-pin Molex female connector. It is a solid block without a cable: push the SATA plug of your power supply onto the adapter and plug the Molex device, for example a pump, fan, fan controller or lighting, into the other end.
Properties
- Type
- Power adapter, solid block
- Input
- 15-pin SATA power, male
- Output
- 4-pin Molex, female
- Hot plug
- Supported
- Pieces in the pack
- 1
Molex power from a SATA cable
Modern power supplies often have more SATA power plugs than Molex plugs. This adapter lets you run an older 4-pin Molex device from a free SATA plug, with no extra cable in the case.
Solid adapter

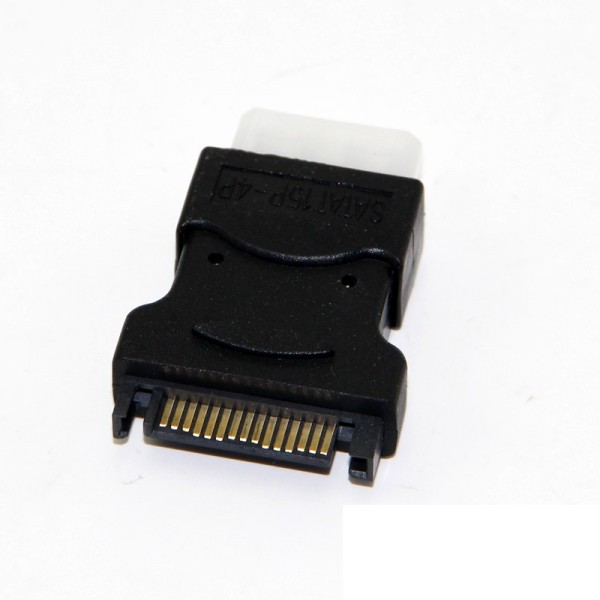

The black block holds the SATA connector on one side and the white Molex connector on the other. It is marked SATA15P-4P and supports hot plug.
Technical data
| Part number | CAB310 |
| Type code | SATA15P-4P (printed on the adapter) |
| Input | 15-pin SATA power, male |
| Output | 4-pin Molex (IDE), female |
| Hot plug | Supported |
Notes
- A SATA power connector carries less current than a 4-pin Molex connector; use the adapter for devices with a modest power draw.
In the box
- 1x 15-Pin SATA to 4-Pin Molex Connector
