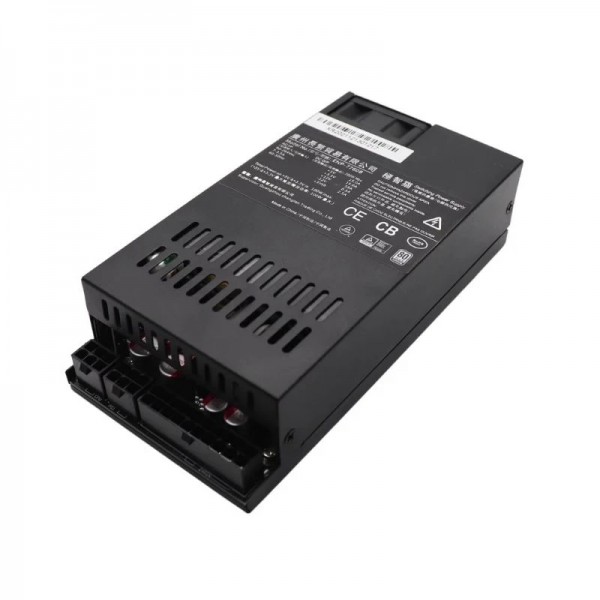

The Wisecat Flex 700W 80+ Platinum Modular PSU is based on the ENP-7760B PSU design. The PSU rated output power is 700W. It is a high efficiency design with 80 Plus Platinum certification. It has a fully modular design with black silicone cables. This efficient design offers up to 94% efficiency, resulting in minimal wasted electricity and low operating costs for the user.
The PSU supports the following connectors:
1x 14-to-24-Pin motherboard connector
1x 4+4-Pin EPS connector
2x 6+2-Pin PCIE connector
2x SATA connector
1x MOLEX connector
Technical specifications:
Product No: ENP-7760B
Max. DC Output: 700W
Load Range:
+3.3V: 15A MAX
+5V: 15A MAX
+5VSB: 2.5A MAX
+12V: 58A MAX
-12V: 0.3A MAX
Input Voltage: 100-240V
Efficiency: 90%~94% @ 20%~100% loading
Certification: 80 PLUS Platinum
Dimension: 40 x 80 x 161 mm
Warranty: 2 years
Pinout:
Additional Information
Manufacturer | XWORKS |
---|---|
Color | Black |
Overall Dimensions | 40 x 80 x 161 mm |
Modularity | Fully Modular |
Input Voltage | 100-240V |
Output Power | 12V |
Included | 1x Flex 700W Modular PSU 1x 24-Pin Power Breakout Cable -24-Pin MB Power Cable - 14.5cm - 4+4-Pin EPS Cable - 25cm -SATA Power 2x Connector Cable - 37cm overall length 2x 6+2-Pin PCIE Cable - 26cm 6x Zip Tie - 14cm 4x 6/32 x 6mm PSU screws 1x 120v AC Power Cord |
Material | No |
