Details

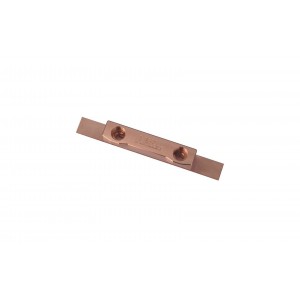

The HEATKILLER® SW-X DIY is a universal water cooler for mainboard voltage converters. This cooler can be used to cool voltage converters on motherboards for which no specially adapted cooler is available. Other locations are also conceivable. The base plate must be brought to the individual dimensions and provided with mounting holes.
The base plate has the basic dimensions of 130 x 15 x 2 mm.
A thermal conductive agent is recommended. This is not included in the scope of delivery. Screws and nuts for fastening are included.
Technical data:
Material: electrolyte copper
Dimensions (lid): 80 x 17 x 17.5 mm
Dimensions (base plate): 130 x 15 x 2 mm
Weight: 125g
Connections: 2x G1/4“
Pressure tested: 5 bar
Additional Information
| Manufacturer | Watercool |
|---|---|
| Product Type | Mosfet Block |
| Motherboard Compatibility | Universal |
| Cooling Plate Material | Copper |
| Top Cover Material | Copper |
| Number of Ports | 2x G1/4 |
| Color | Copper |
| Included | 1x HEATKILLER® SW-X 80 DIY 1x Mounting material |
| Material | Copper |
