Details

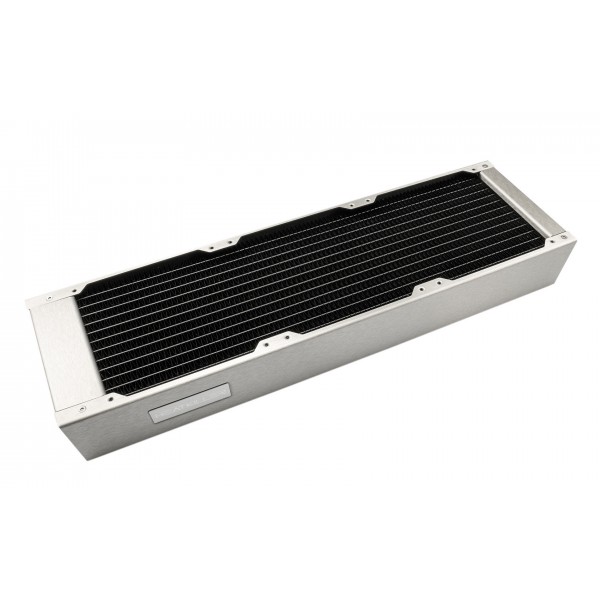

A 360 mm radiator for three 120 mm fans, 48 mm thick. The Watercool HEATKILLER RAD 360-L Stainless Steel is a mesh radiator with a brass pre-chamber and brass cooling channels, copper fins, brushed stainless steel side panels and two G1/4 ports.
Properties
- Fans
- 3x 120 mm, M3 screws
- Size
- 398 x 120 x 48 mm
- Thickness
- 48 mm (L series)
- Ports
- 2x G1/4
- Material
- Brass pre-chamber and channels, copper fins
- Weight
- 1.4 kg
The HEATKILLER RAD series
The HEATKILLER RAD series is Watercool's line of mesh radiators. It comes in two strengths: the Small (S) RADs are 30 mm thick and the Large (L) RADs 48 mm, so this 360-L is the thick one.
Finishing and quality control in Germany
Watercool says it succeeded in creating a high-performance mesh radiator with a unique look, in cooperation with a well-known manufacturer from Asia. The cooling cores are manufactured strictly in accordance with Watercool's specifications. The radiator housing is produced directly on Watercool's premises in Waren, which means the assembly and quality control are ultimately performed in Germany.
High cooling performance over the entire speed range
The goal of the development was to produce competitive radiators with a wide performance range. Accordingly, Watercool says the HEATKILLER RAD provides a very good cooling performance with slow rotating fans, and that it scales very well with increasing speed. For maximum cooling performance it can of course also be used in push/pull mode, with three fans on each side.
The best raw materials in use
Watercool uses only high quality raw materials as the basis for the HEATKILLER RAD. The pre-chamber and the cooling channels are made of brass, while the cooling fins are made of copper. The side panels are laser-cut from 1 mm thick steel plates or stainless steel, and subsequently brushed or powder-coated in black or white, depending on the finish. On this one they are brushed stainless steel. The front sides are brushed stainless steel and, in Watercool's words, significantly contribute to the exclusive look.
Easy integration into the cooling circuit
Integration into the cooling circuit is done through two standard G1/4 inch threads. The required connections are not included in the scope of delivery, so plan on two fittings for your tube. The small width of only 120 mm ensures you have a maximum of flexibility when you place it, and it takes three 120 mm fans.
Technical data
| Dimensions | 398 x 120 x 48 mm |
| Weight | 1.4 kg |
| Color | Brushed Stainless Steel |
| Connectors | 2 x G1/4 thread |
| Fan compatibility | 120 mm fans |
| Radiator mounting | M3 |
Notes
- Fan screws may not reach deeper than 5 mm into the radiator; longer screws might damage the pipes. Watercool's mounting material lists M3x30 and M3x5 screws, 4 per fan.
- The side panels can be removed for maintenance.
- Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor as coolant.
In the box
- 1x HEATKILLER RAD 360-L STAINLESS STEEL
Watercool's assembly instructions cover the whole HEATKILLER RAD series, with the dimensions of every size and how to remove a side panel.
