Details

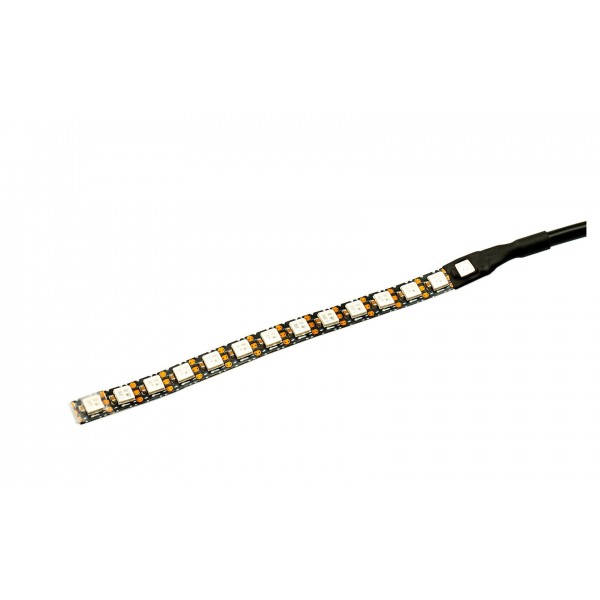

A 100 mm addressable LED strip for the HEATKILLER® Tube 150 and Tube 200 reservoirs, with a 5V 3-pin aRGB plug on a cable of around 40 cm. The Watercool HEATKILLER High Luminous aRGB LED Stripe S (78041) carries 144 LEDs per meter on a black PCB only 6 mm wide.
Properties
- For
- HEATKILLER® Tube 150 and Tube 200 (Size S)
- Size
- 100 mm long, 6 mm wide PCB
- LEDs
- 144 per meter, addressable
- Plug
- 3-pin aRGB, 5V, cable around 40 cm
Bright, addressable light
Watercool made its High Luminous aRGB LED Stripes to provide a stylish illumination for your high-end hardware, in all colors of the RGB space. Watercool says the 144 LEDs per linear metre ensure an immense luminance and a powerful colour representation. The black PCB is extremely slim, only 6 mm wide, while Watercool finds that this makes the strips also look appealing. The same strips are, by the way, used by Watercool to illuminate different HEATKILLER® products.
Connecting it
Using its 3-PIN aRGB connector, the cable can be connected directly to the mainboard. Thereby most common standards are supported, such as AURA from Asus, AORUS RGB Fusion and MSi Mystic Light, etc. If desired, the stripe can instead be operated from a separate RGB controller with support for addressable LEDs, such as one from our addressable RGB controllers.
Compatibility
The compatibility is defined by size, and this Size S stripe fits the following:
- HEATKILLER® Tube 150
- HEATKILLER® Tube 200
The other sizes are separate articles. Size XS goes with the HEATKILLER® Tube 100, the HEATKILLER® IV for GTX 1080 and 1070, and the HEATKILLER® IV for TITAN X and GTX 1080Ti. Size M covers the HEATKILLER® IV for Radeon RX 5700 / XT, for ASUS RTX 2080 Ti STRIX, for GTX 1080 and 1070 FTW/FTW2, and for RTX 2080 and 2080 Ti Series. It also fits the HEATKILLER® V for RTX 3080/3090 and 3080 Ti Series.
Specifications
| Voltage | 5V |
| Connector | 3-Pin (5VDG, 5V) |
| PCB width | 6 mm |
| PCB length | 100 mm |
| LED / Meter | 144 |
Notes
- Warning from Watercool: connect this stripe only to an addressable RGB header. On a regular RGB header it can damage both the stripe and the header.
In the box
- 1x Watercool HEATKILLER High Luminous aRGB LED Stripe S
