Valkyrie Syn 360mm ARGB LCD All-in-One CPU Cooler - White (VK-AIOSY360W)

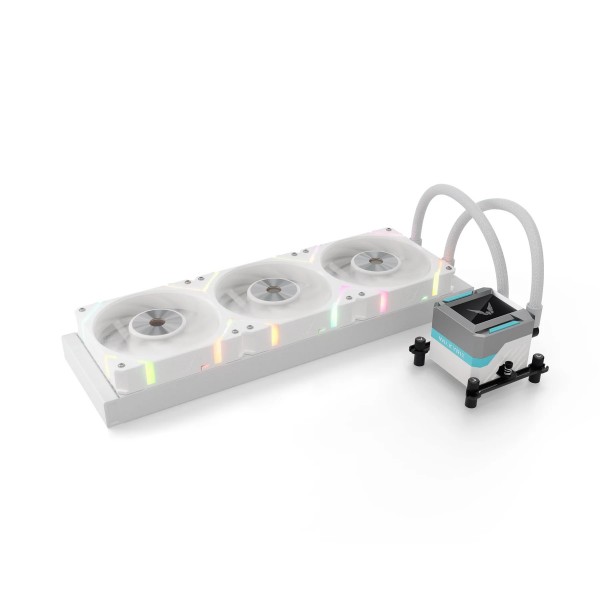

The Valkyrie Syn 360 is an all-in-one CPU liquid cooler with a 2.4 inch LCD screen on the pump, a high-speed PWM pump, a 360 mm aluminum radiator and three Valkyrie X12 A-RGB 120 mm fans. The screen shows system stats, images or videos. Valkyrie rates the Syn 360 for CPUs up to 300 W TDP and includes its Valkyrie Hub for tidy wiring. This is the white version.

Properties

Type

All-in-one CPU liquid cooler with LCD, prefilled

Screen

2.4 inch LCD, 320 x 240

Radiator

360 mm aluminum, 379 x 120 x 27 mm

Fans

3x Valkyrie X12 A-RGB, 120 mm

Pump

800 to 2,600 rpm, PWM

CPU TDP

up to 300 W

CPU sockets

Intel LGA 1851, 1700, 1200, 1151; AMD AM5, AM4

Lighting

3-pin 5V A-RGB

Color

White

Warranty

5 years international

Your own picture on the pump

The 2.4 inch LCD screen (320 x 240 pixels) sits in the pump top. Valkyrie says you can use it to monitor real-time performance stats or to show your own images and videos. The screen connects to a USB 2.0 header on the motherboard, and a TF (microSD) card is in the box.

High-speed pump

Valkyrie calls the Syn pump its advanced patented pump. It reaches up to 2,600 rpm: the range is 800 to 2,600 rpm (plus or minus 10%) at 12 V with 4-pin PWM control. The pump unit measures 80 x 68 x 60 mm and is joined to the radiator by 395 mm FEP tubes in a corrugated braided sleeve.

X12 fans on a 360 mm radiator

The 379 x 120 x 27 mm aluminum radiator is fitted with three Valkyrie X12 A-RGB fans. Each fan runs from 800 to 2,150 rpm, moves up to 80 CFM (135.92 m³/h) with 3.14 mmH2O static pressure and stays at a maximum of 29 dBA. The fans use fluid dynamic bearings, 4-pin PWM speed control and addressable RGB lighting.

Valkyrie Hub included

The included Valkyrie Hub connects up to seven devices. It takes SATA power and passes fan speed and A-RGB lighting on through one CPU_FAN and one A-RGB header on the motherboard. Valkyrie notes that the red FAN_01 port of the hub must have a 4-pin fan plugged in. The pump connects to the AIO_PUMP header.

Mounting

The kit carries an Intel backplate with brackets, an AMD bracket pair and a nut socket for the mounting nuts. Valkyrie lists the cooler for Intel LGA 1851, 1700, 1200 and 1151 and for AMD AM5 and AM4; the installation guide also shows the mounting on Intel LGA 2011 and 2066 with the included LGA2011 bolts. Thermal paste is in the box.

Technical data

Notes

• Valkyrie makes the Syn in black and white. This listing is the white version.
• Peel the protective sticker off the cold plate before you mount the block; Valkyrie points out that it is critical to cooling performance.
• Use the shorter fan screws to fix the fans to the radiator. The extended screws are not for fixing the fans.

In the box

• 1x Syn 360 AIO cooler (radiator, pump with LCD and tubes)
• 3x Valkyrie X12 A-RGB 120 mm fan
• 1x Wire kit and Valkyrie Hub set
• 1x TF card
• 1x Intel backplate
• 2x Intel brackets
• 2x AMD brackets
• 4x Intel / AMD bolts
• 4x LGA2011 bolts
• 4x Nuts
• 1x Nut socket
• 12x Fan screws
• 12x Extended fan screws
• 12x Radiator screws
• 1x Thermal paste

Valkyrie's installation guide is a PDF.
