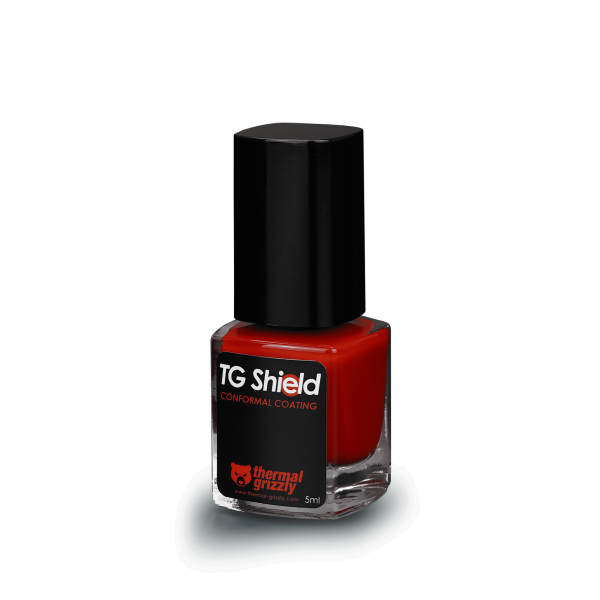

Thermal Grizzly Shield - 5ml (TG-ASH-050-RT)

Thermal Grizzly Shield (TG Shield) is 5ml of red, high-temperature protective coating that you brush onto PC components to protect them against liquid metal, such as Conductonaut, or other electrically conductive heat transfer agents.

Properties

Amount

5ml

Color

Red

Curing time

30 min at 20°C

Operating temperature

-20°C to +150°C

Typical application

CPUs, GPUs, motherboards

What it is for

The coating is for use on PC components that sit next to an electrically conductive thermal conductor, and it provides reliable protection when used in combination with such a compound. Its high application temperature allows the use on all common CPUs, and Thermal Grizzly's data sheet adds mainboards and graphics cards.

Applying it

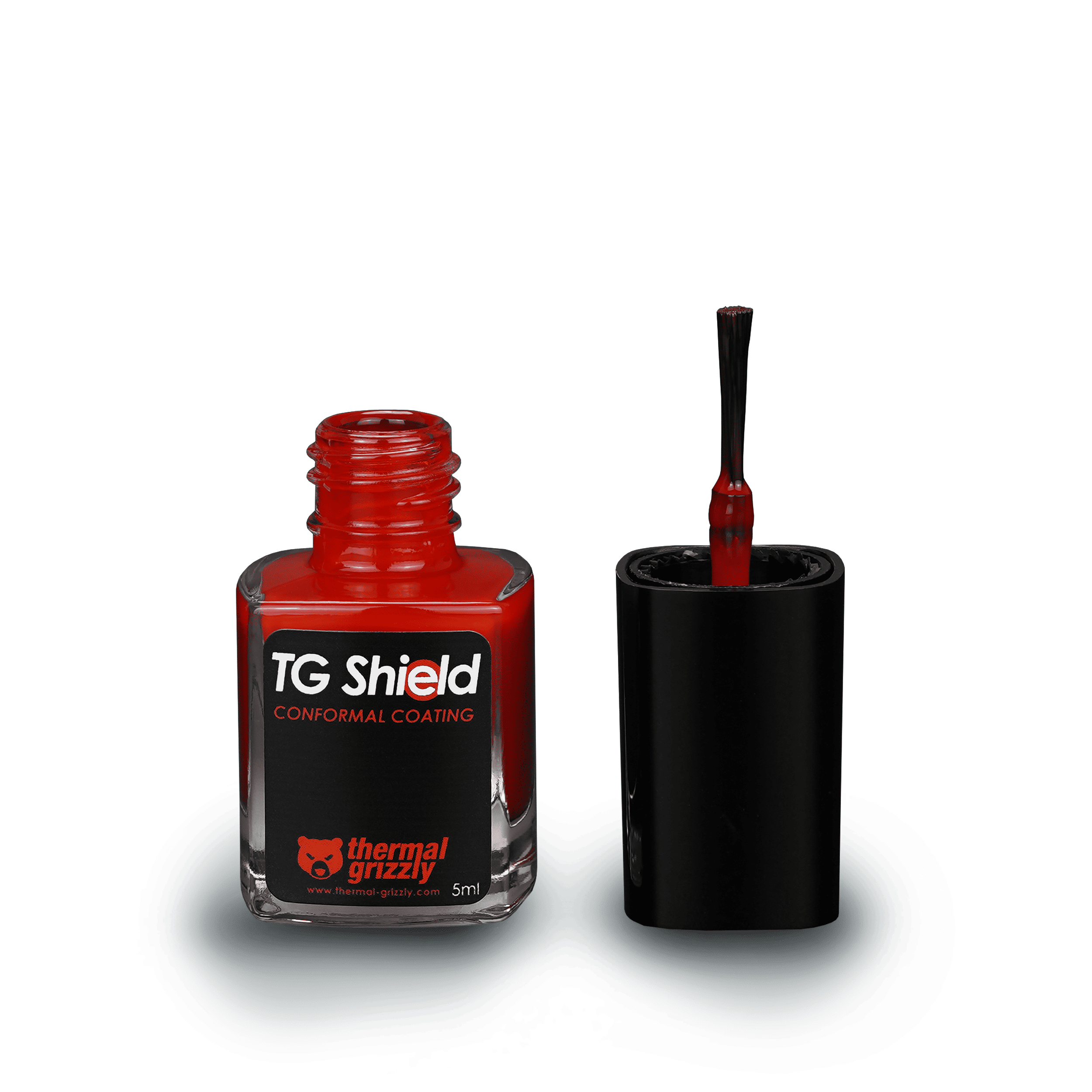

The integrated brush allows for precise, even and easy application. The coating is optimized for fast drying: it cures in 30 minutes at 20°C.

Thermal Grizzly's data sheet and safety data sheet are both PDFs.
