Details

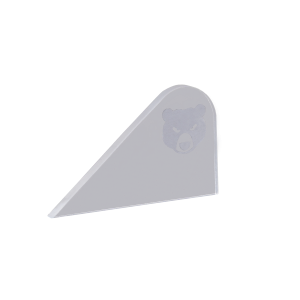

Thermal Grizzly Scraper, 3 pack (TG-SC-3): acrylic scrapers for removing solder residues, silicone adhesive and other coarse contaminants from a delidded CPU. It is the cleanup tool for after one of the CPU delidding tools has taken the heatspreader off.
Properties
- Amount
- 3 pieces
- Material
- Acrylic
- Tip
- Narrow
- For
- Silicone adhesive on the package (PCB), indium solder on the dies
What it is for

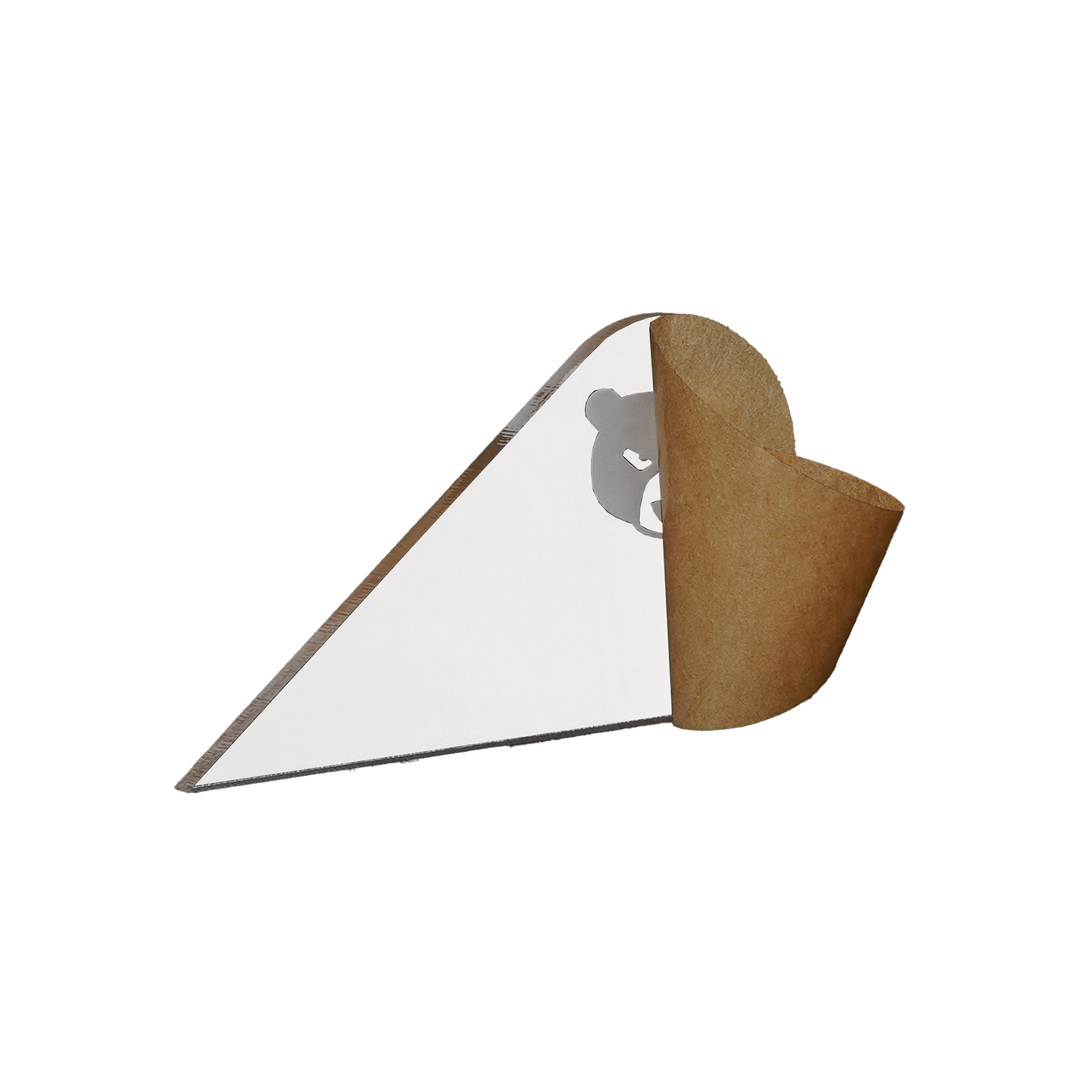

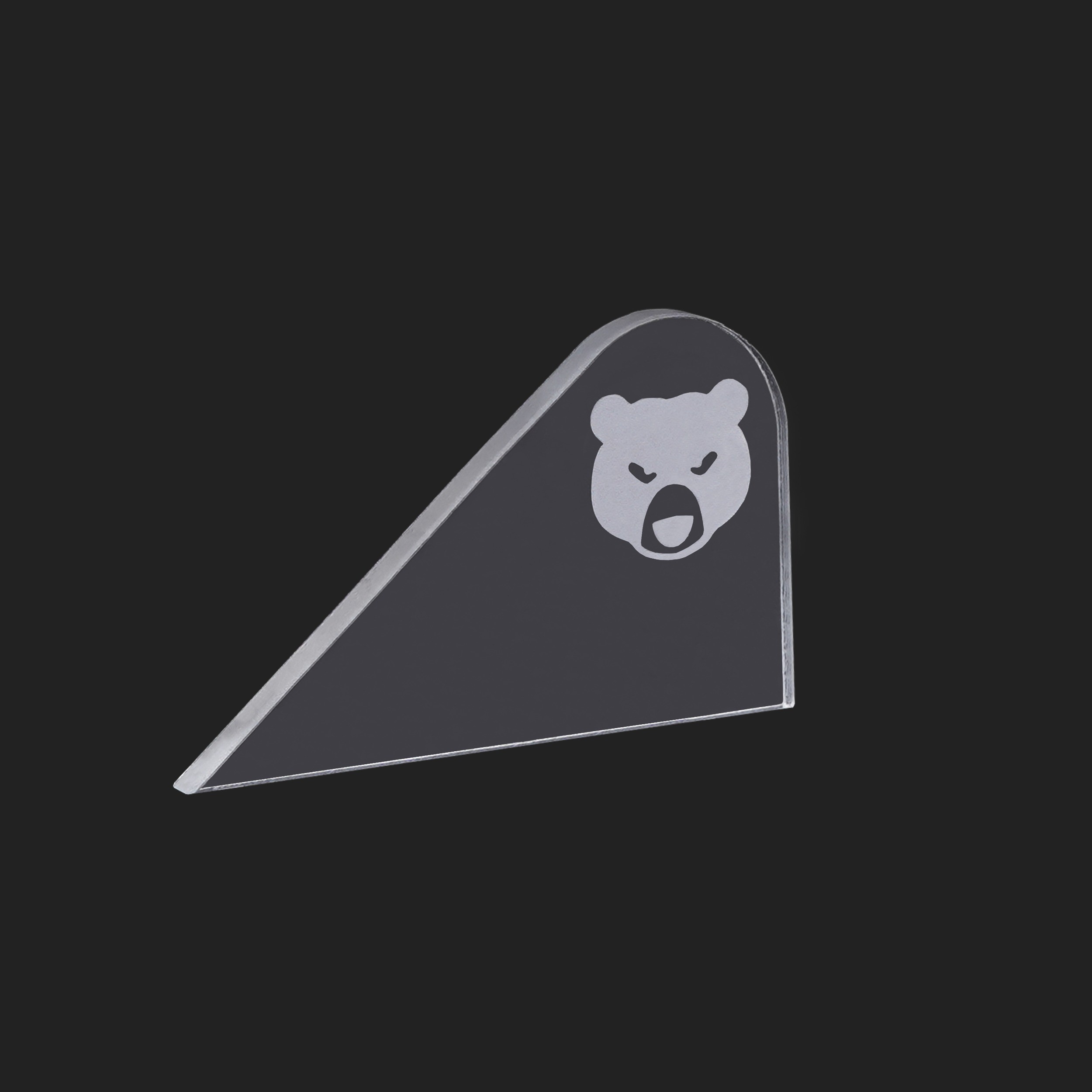

Each scraper is made from acrylic and features a narrow tip. Thermal Grizzly specifically developed that tip to remove, for example, the silicone adhesive left on the package (PCB) of a delidded processor, or residual indium solder from the CPU dies. The ergonomic design ensures a firm and secure grip during use.
Note on handling

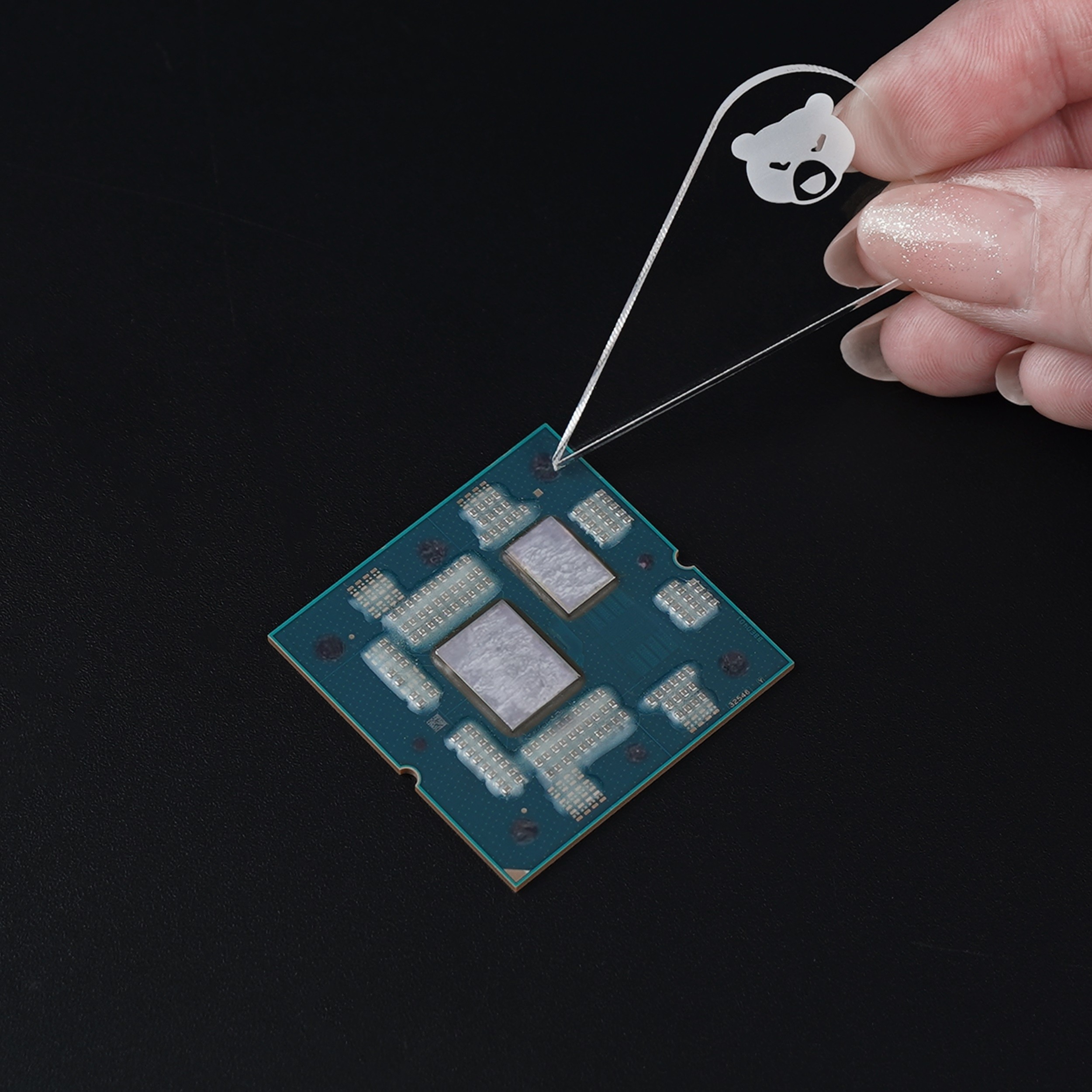

Careful and precise handling is essential to avoid damaging the small electronic components on the CPU package or the dies themselves. When the job is indium solder on the die(s), it is recommended to first gently scrape the surface with the TG Scraper. Then clean the remaining solder residue from the die surfaces using liquid metal, such as Conductonaut.

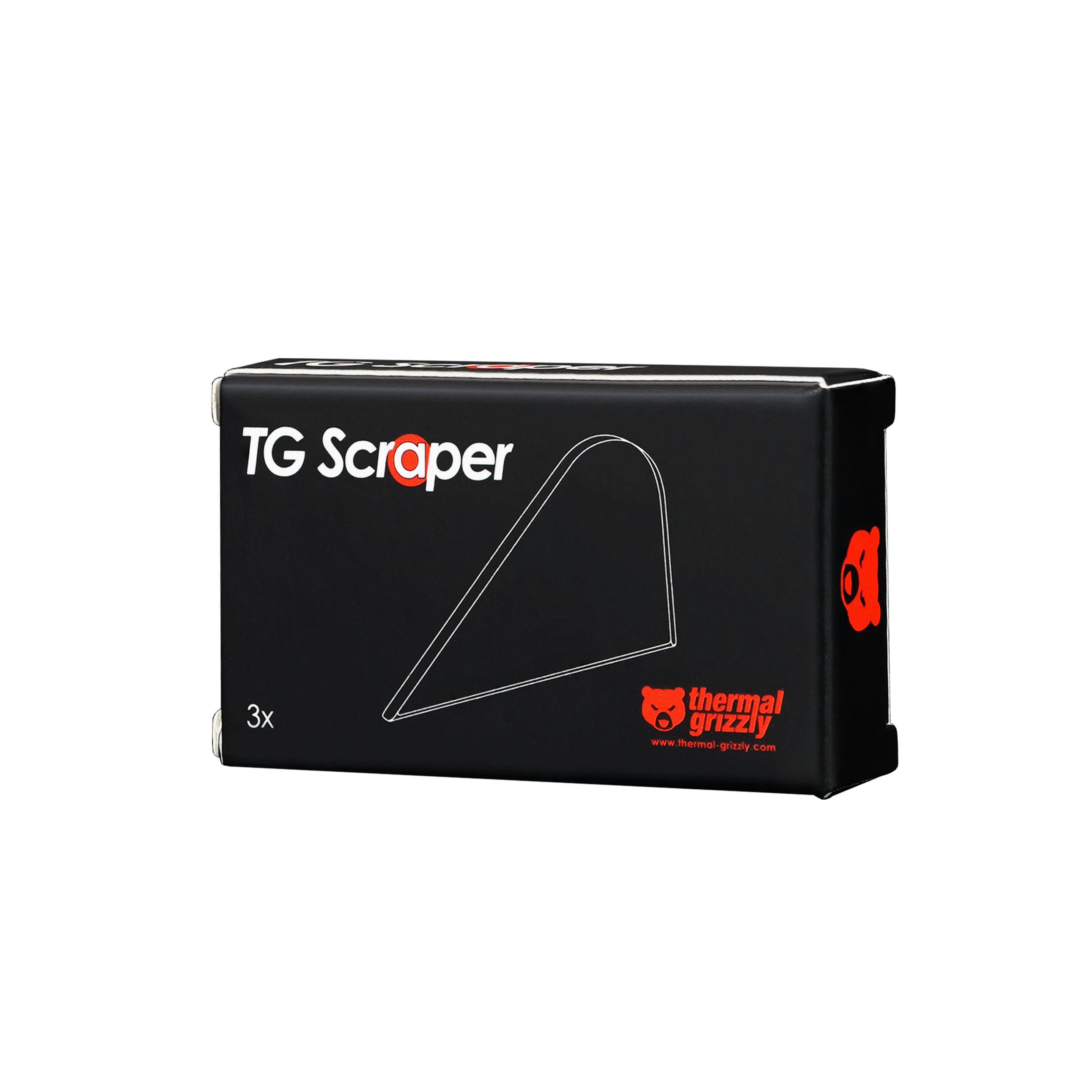

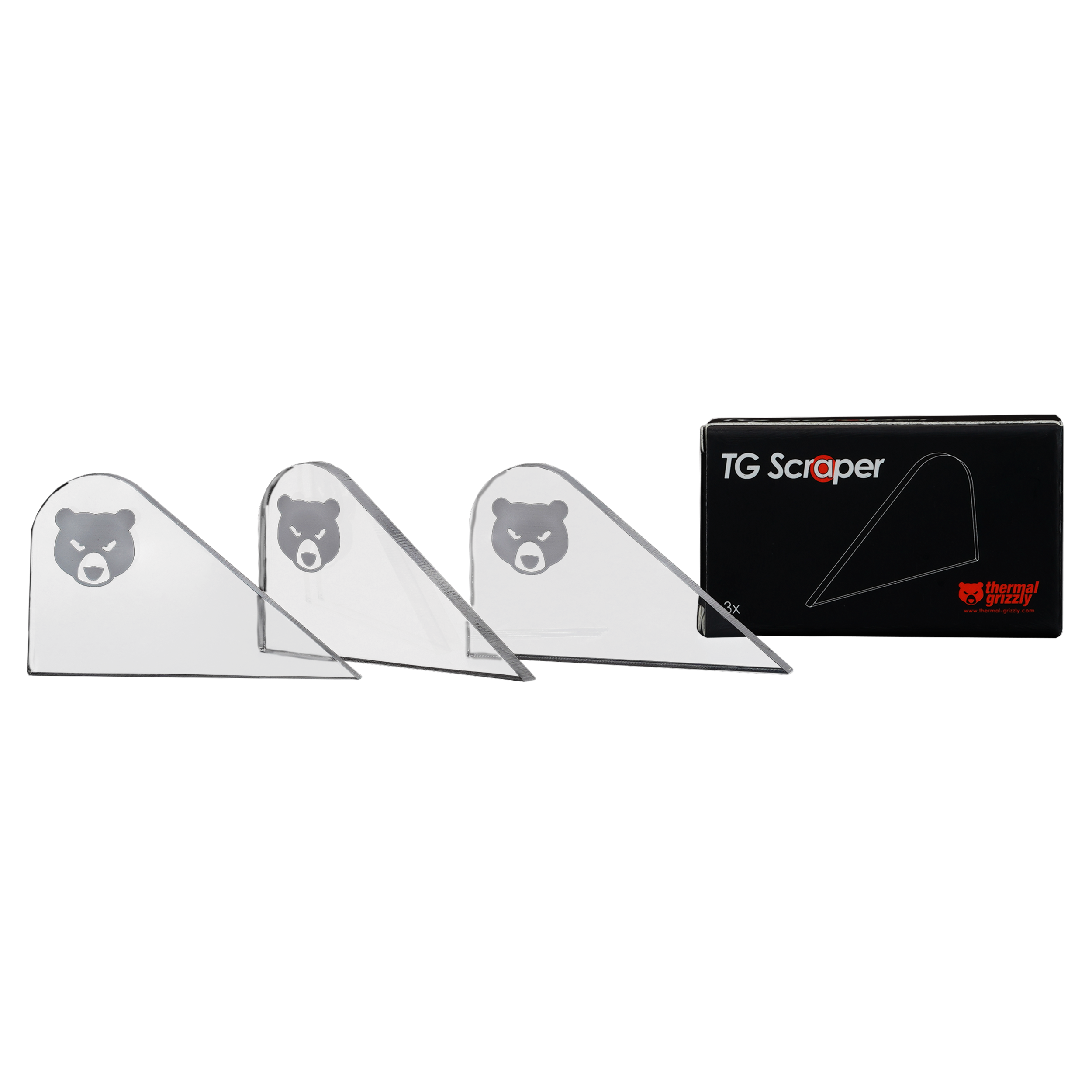

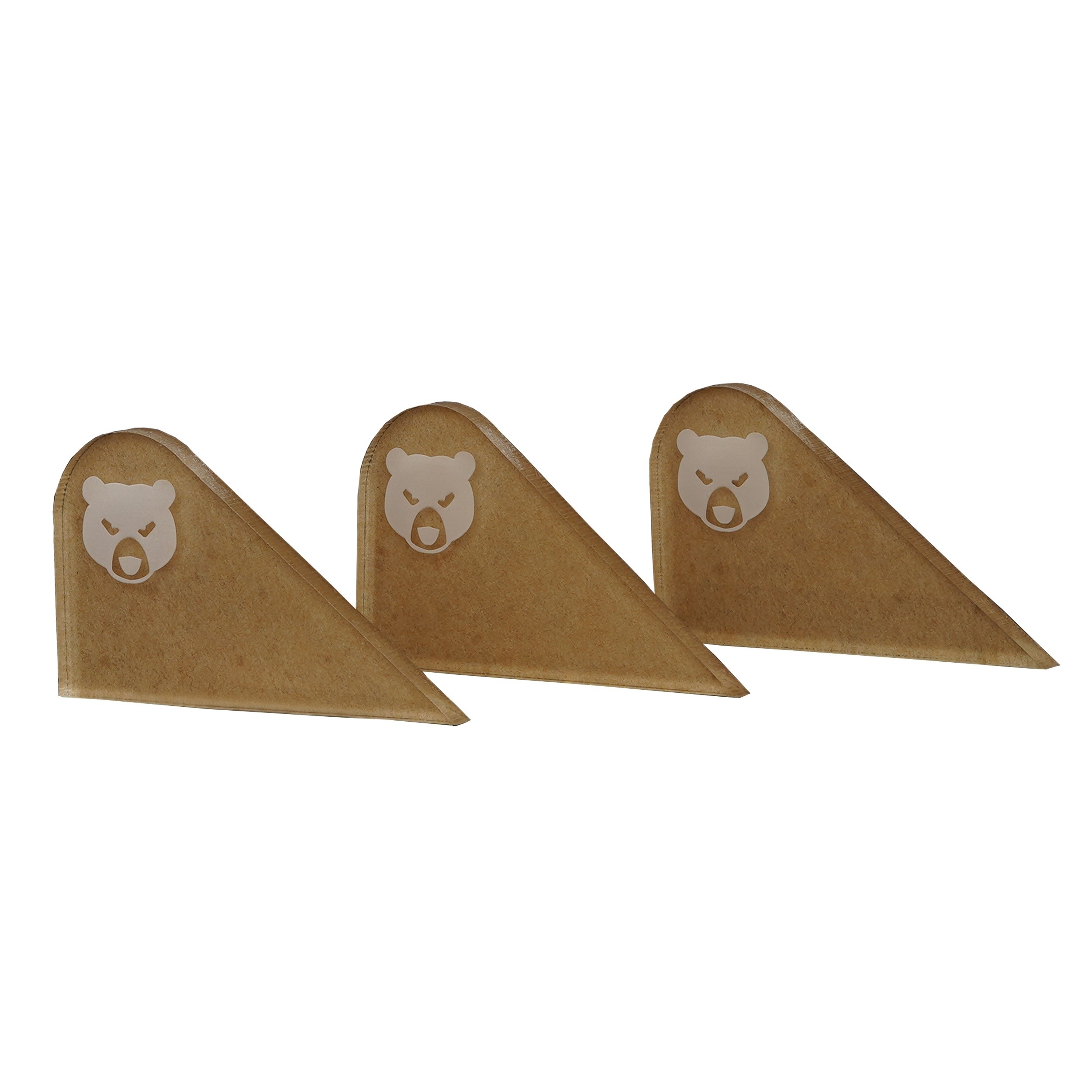

In the box
- 3x TG Scraper
