Details

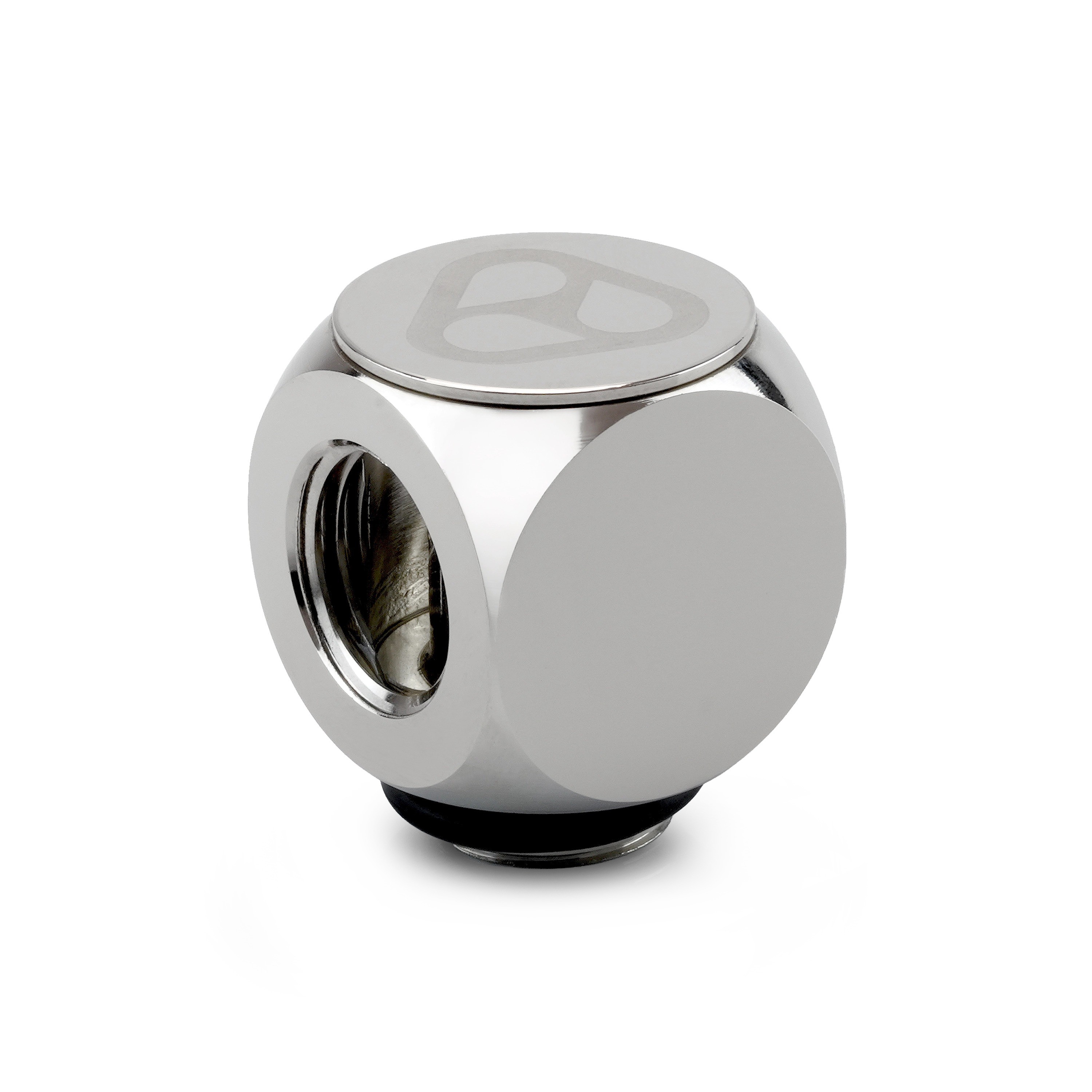

Thermal Grizzly's DeltaMate Rotary - T in Gloss Nickel is a rotary T fitting with one male and two female G1/4" threads for a custom water cooling loop. The same fitting comes in black and matte nickel.
Properties
- Type
- Rotary, T
- Threads
- 1x G1/4" male, 2x G1/4" female
- Material
- Brass, glossy nickel plating
- O-rings
- EPDM
- Install
- 8mm Straight End Hex Key

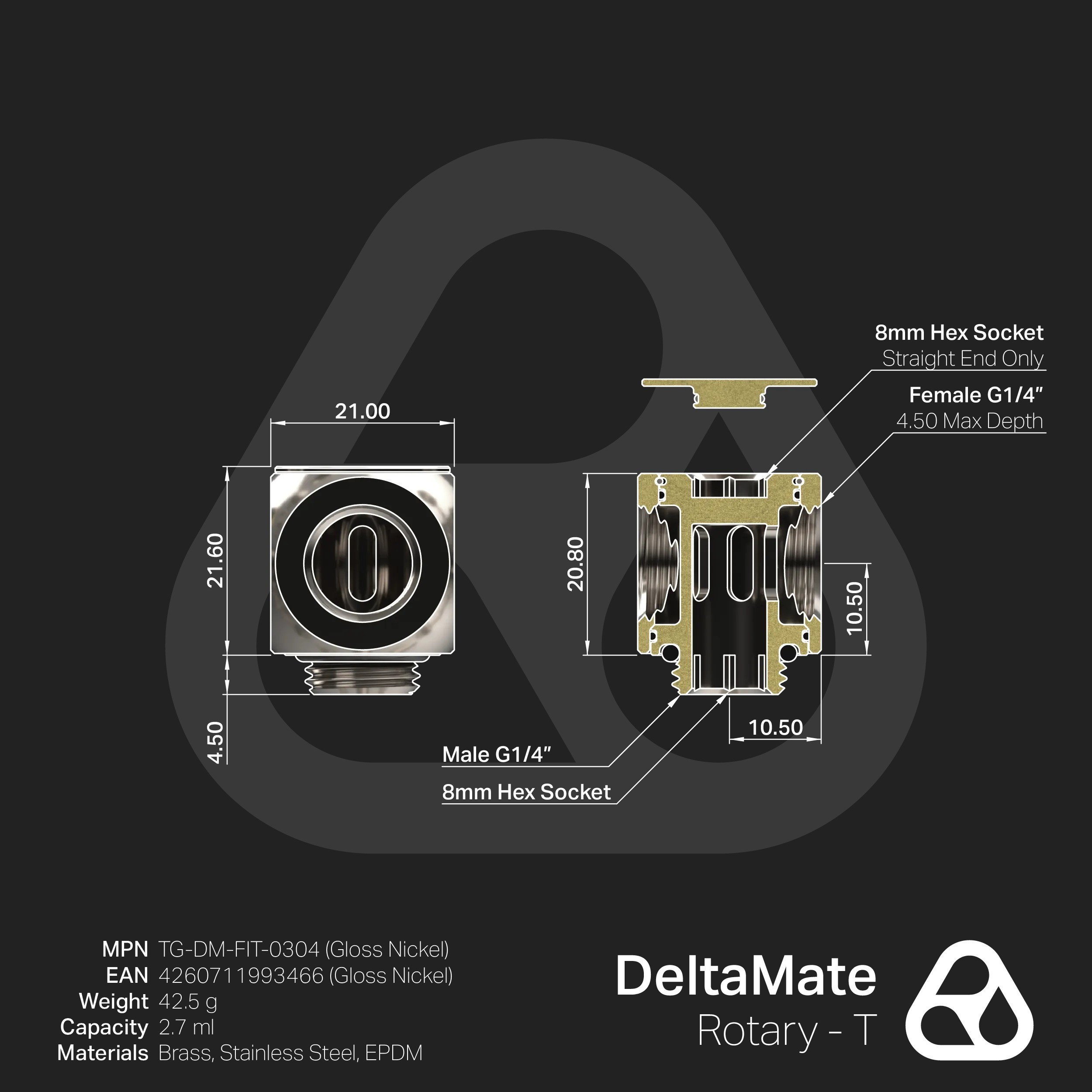

- Thread depth
- 4.5 mm maximum
Threads and rotary joint

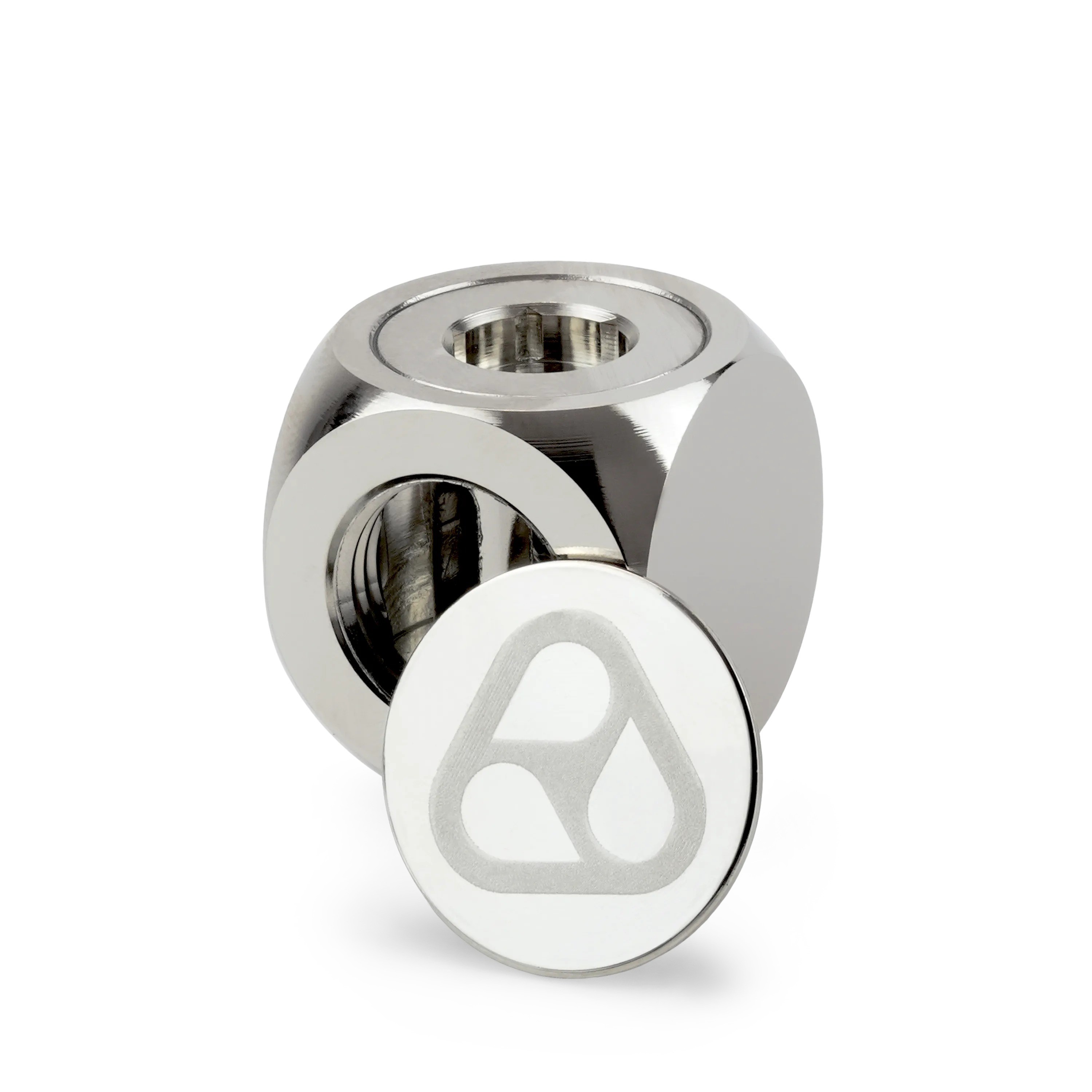

The small dimensions allow modular combination with other DeltaMate Rotary and Extender Fittings. Subsequent fittings secure the joint: when additional ones are screwed in, they mechanically lock the rotary joint together for what Thermal Grizzly calls maximum security. The fitting includes an aesthetic cover with the DeltaMate logo, which can be rotated to any orientation. The included cover is optional.
General information
DeltaMate Rotary Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a loop. As expected from Thermal Grizzly quality, the fitting is precisely machined from brass. Brass is an alloy of copper and zinc. It has the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The fitting offers a finish in the form of a glossy nickel plating that is premium in appearance, in Thermal Grizzly's words, and also easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Due to its compact size, the fitting is easy to install in tight places and SFF builds. Note that it requires a Straight End key, and that the maximum thread depth is 4.5mm! Every DeltaMate fitting has the same uniform outer diameter, which ensures seamless integration of the individual parts. Thermal Grizzly calls the design elegant and minimal, and it integrates seamlessly with all the other fittings in the range.
In the box
- 1x DeltaMate Rotary T fitting, gloss nickel
- Optional cover with DeltaMate logo
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
