Details

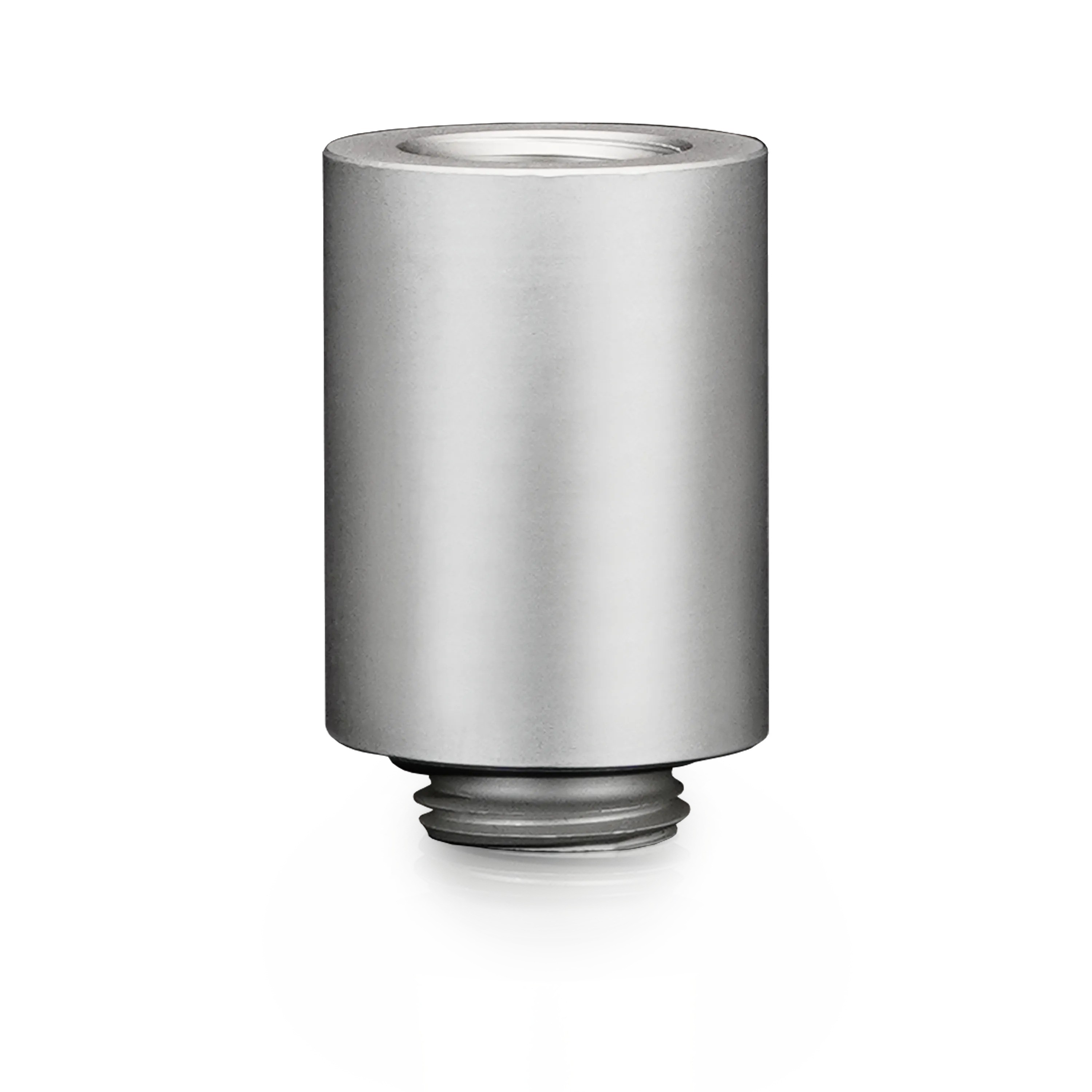

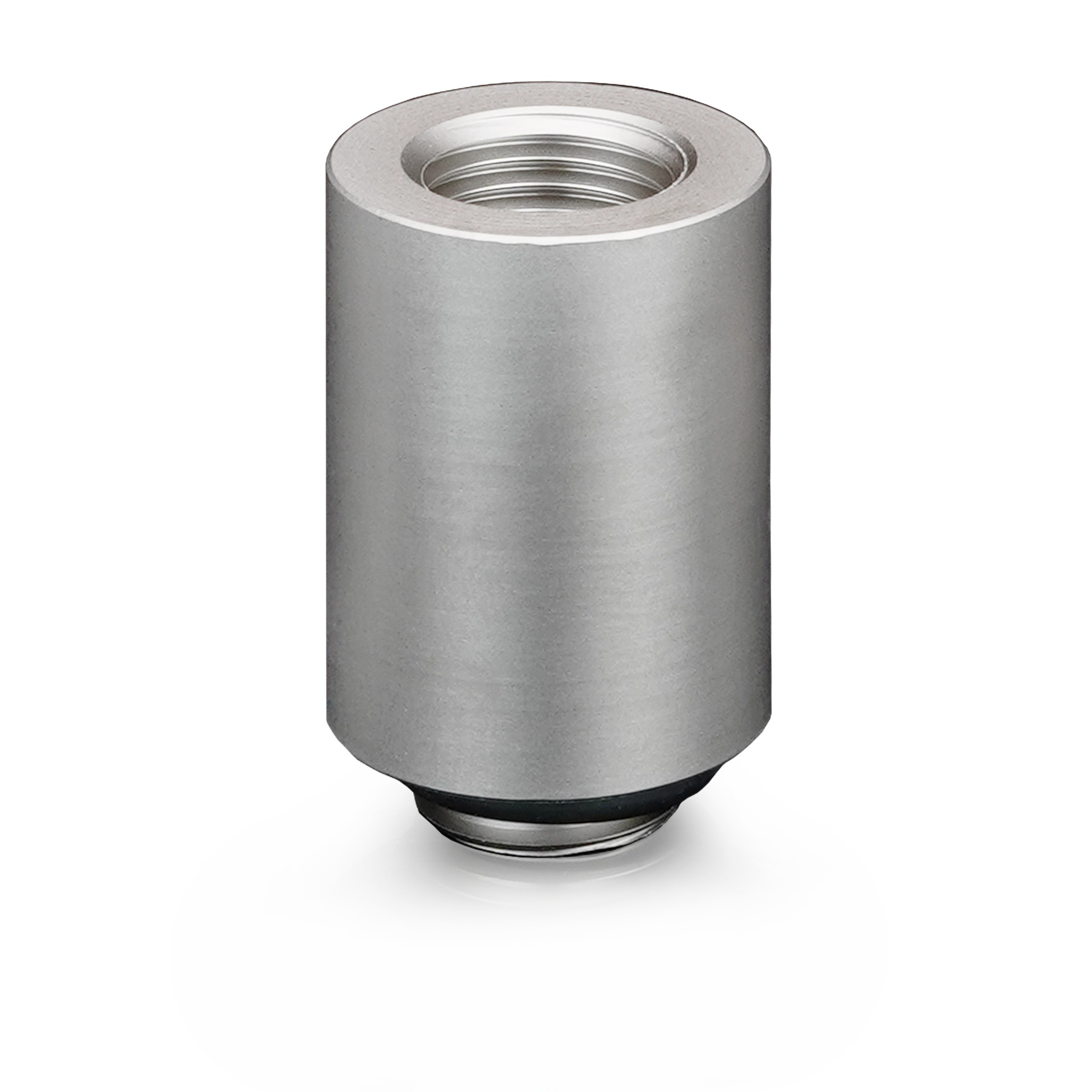

Thermal Grizzly's DeltaMate 28mm Male to Female Extender Fitting (MF28) in Matt Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 28 mm. The same extender comes in black and as a matt nickel 6 pack.
Properties
- Added spacing
- 28 mm, fixed length
- Threads
- G1/4" male to G1/4" female
- Material
- Brass, matt nickel plating
- O-rings
- EPDM
- Install
- 8mm hex key
- Weight
- 63 g, 65 g boxed

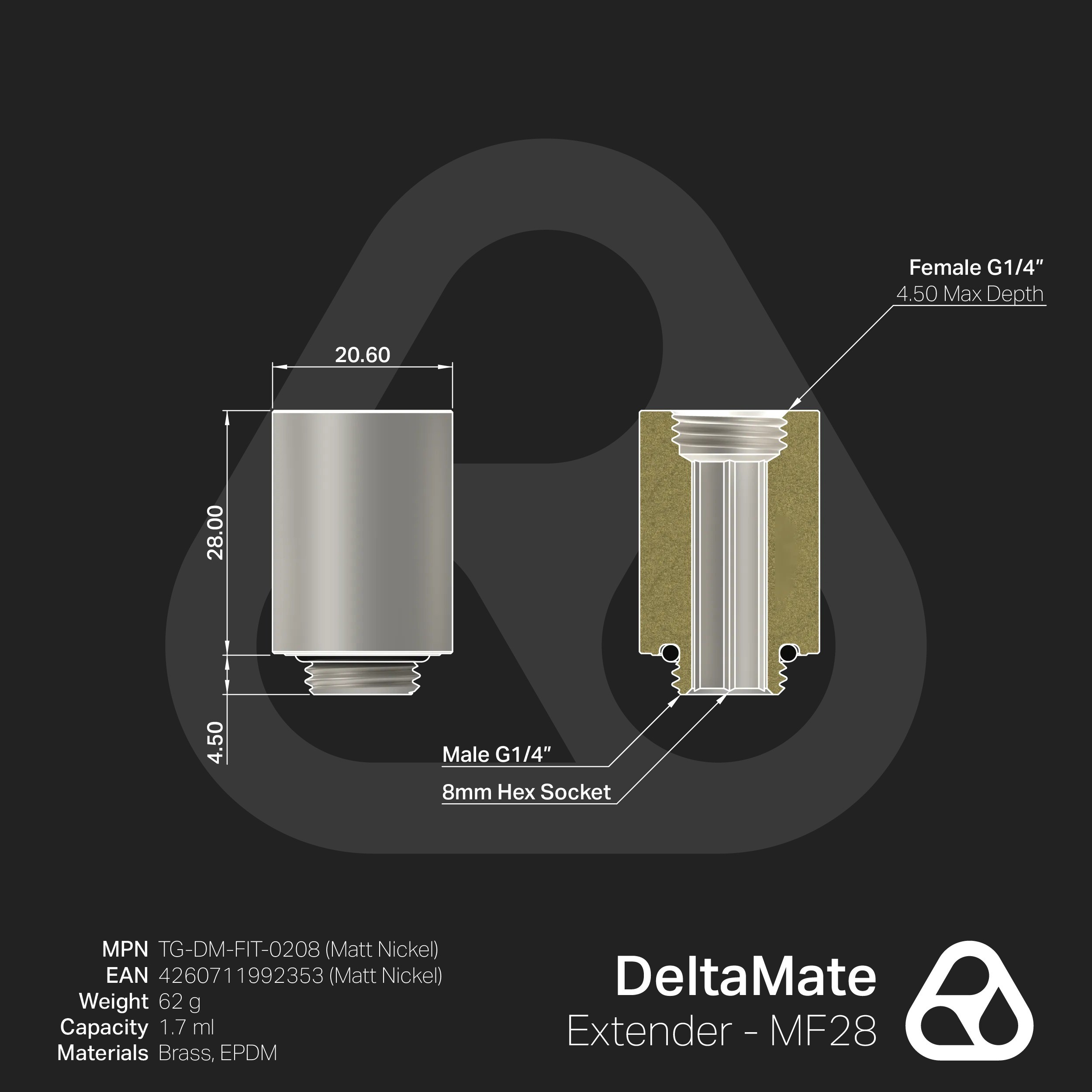

Threads and spacing

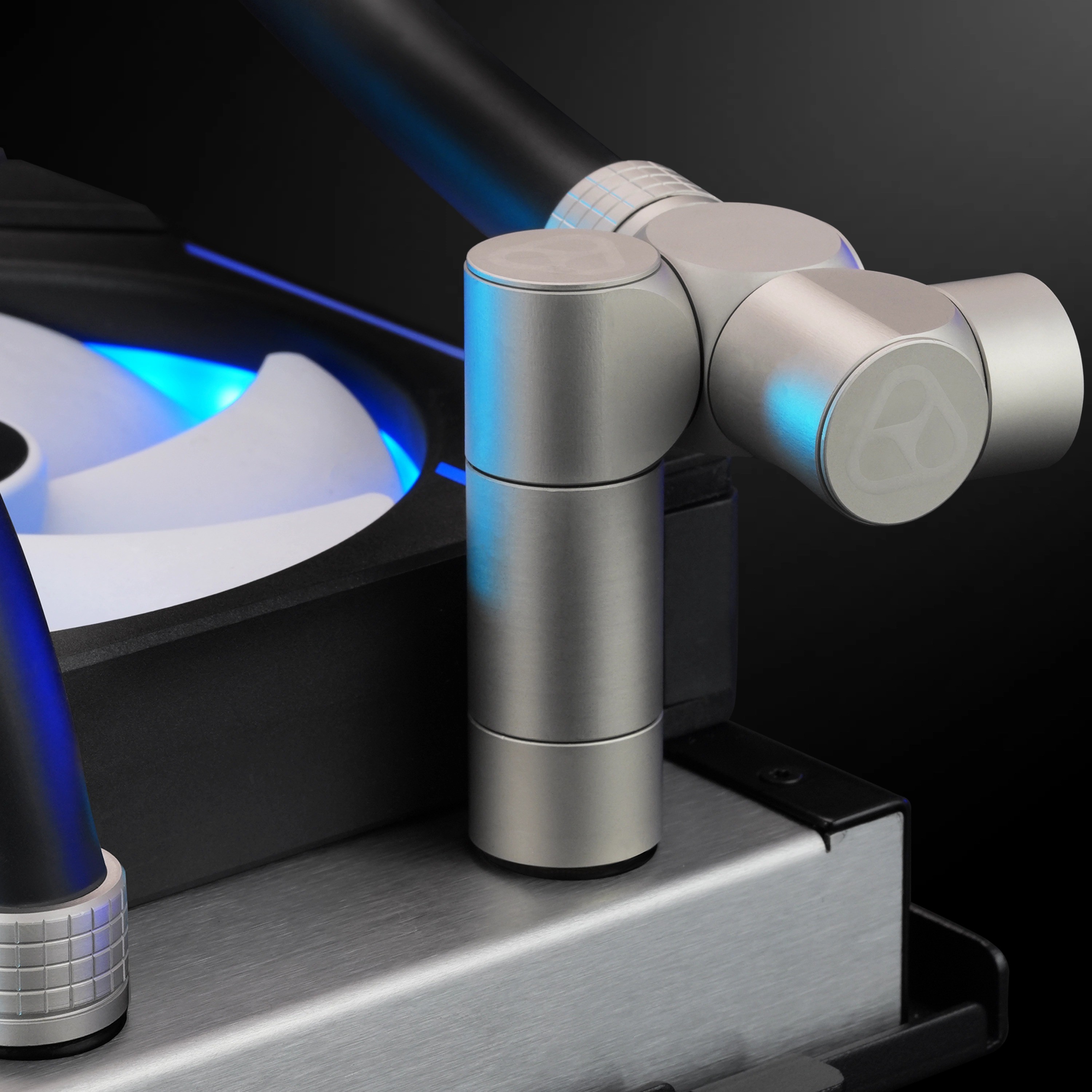

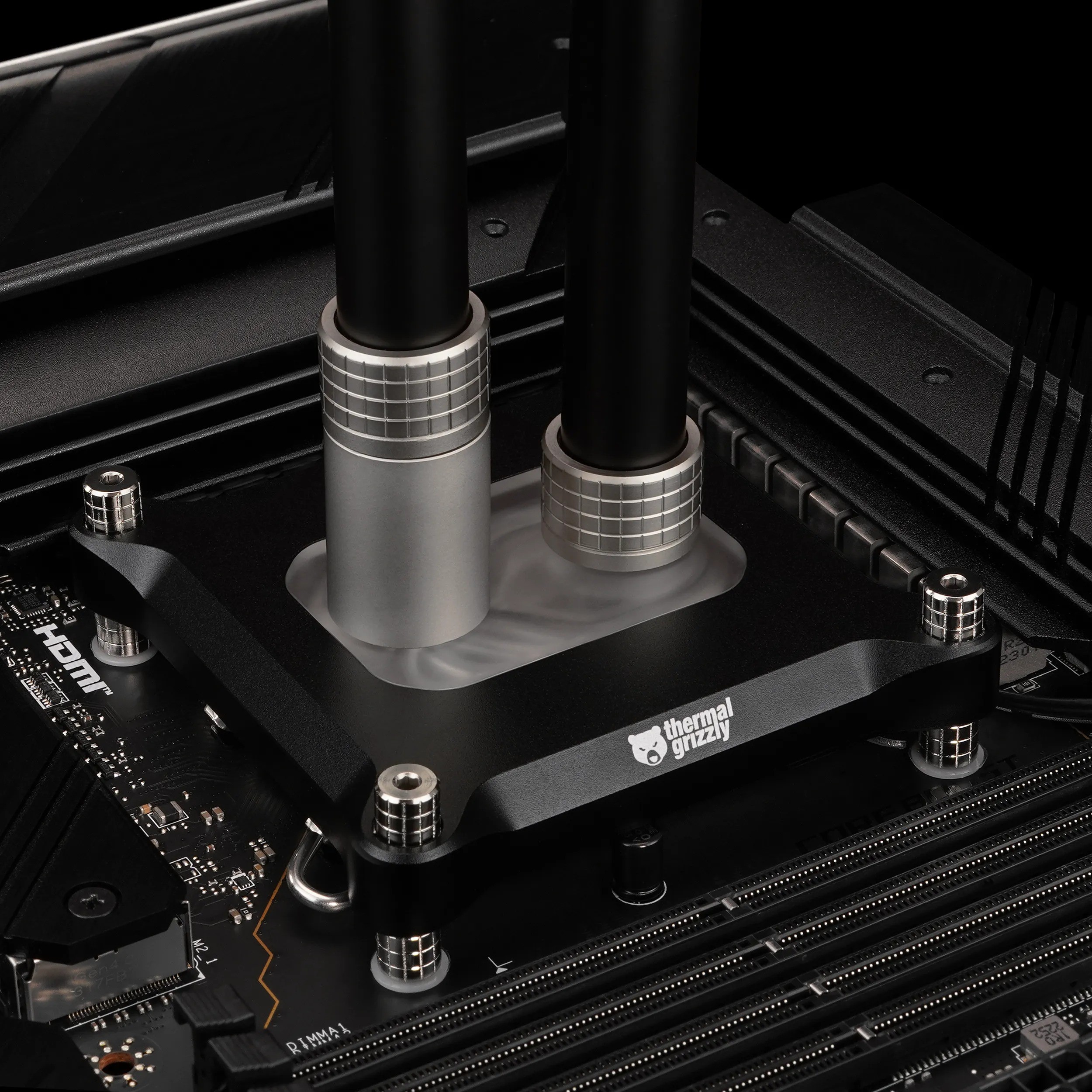

The MF28 features one G1/4" male thread and one G1/4" female thread. It is a practical way to increase the distance between ports and fittings by a set 28mm. It is commonly used to add clearance for memory modules and fans, or for two parallel tubes in the same plane. Note the maximum thread depth: 4.5mm! The other matt nickel lengths are the MF7, MF10 and MF14.
General information
DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matt nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.
In the box
- 1x DeltaMate MF28 extender fitting, matt nickel
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
