Details
DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.
General information
The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

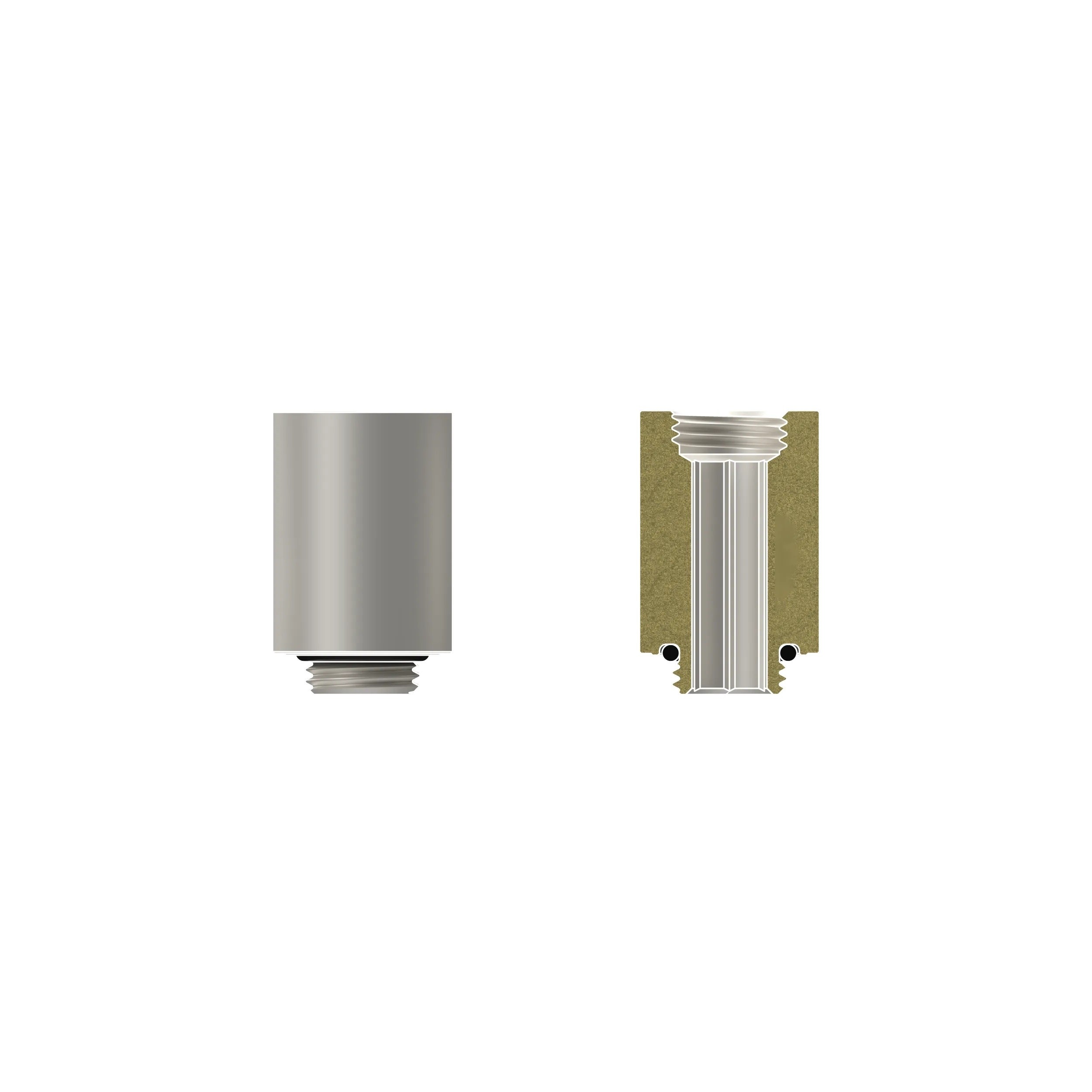

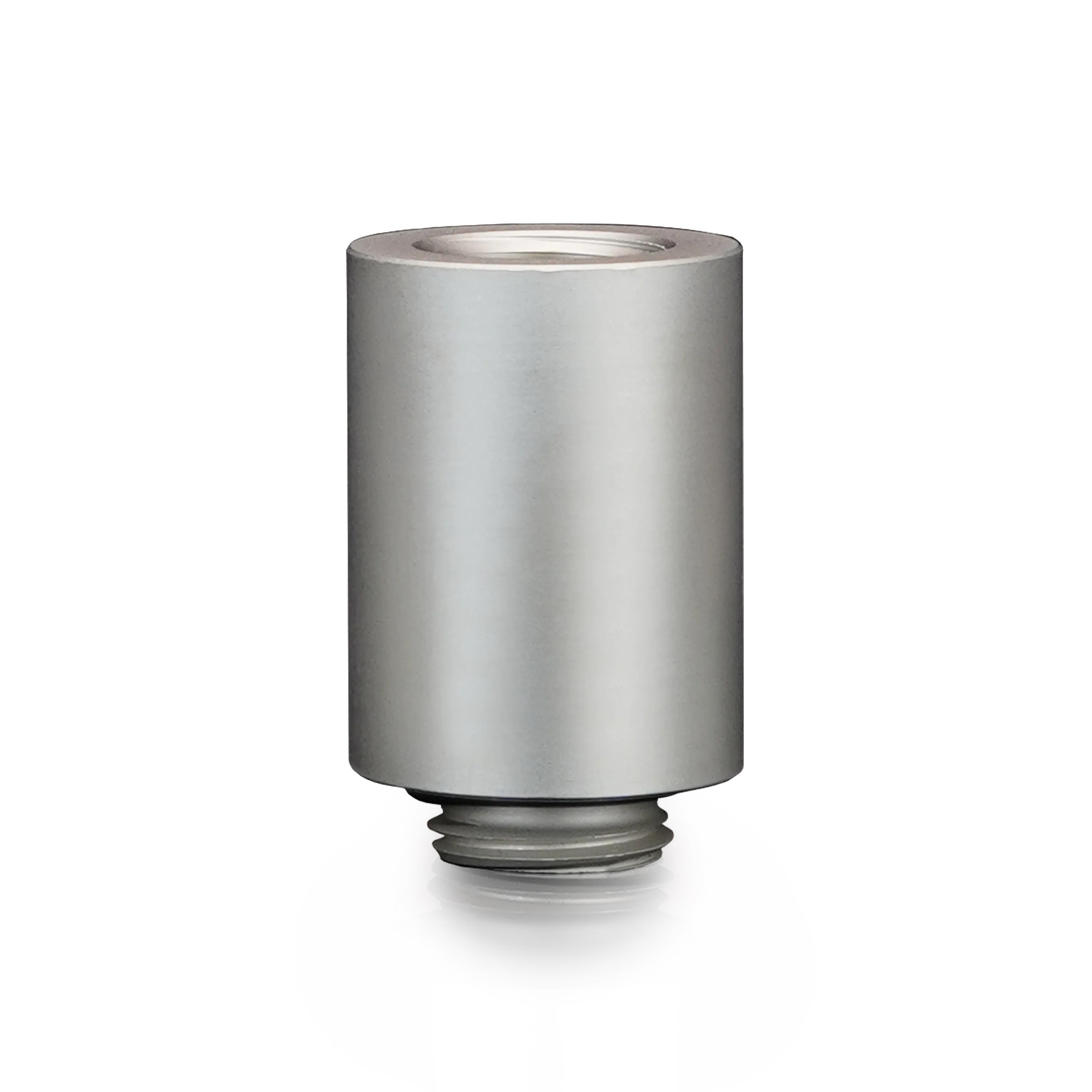

The DeltaMate Extender - MF28 features one G1/4″ male thread and one G1/4″ female thread, and is finished with a matt nickel plating that’s both premium in appearance and easy to clean. Used as an extension fitting, it’s installed between the water-cooling component’s port and the fitting, increasing the spacing by 28 mm. Commonly used to add clearance for memory modules and fans or two parallel tubes in the same plane.
Properties
- Commonly used to add clearance for memory modules and fans or two parallel tubes in the same plane.
- Practical fixed length extender to increase the spacing between ports and fittings by 28mm.
- Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
- Robust design allows installation with an 8mm hex key.
Note:
Maximum thread depth 4.5mm!
Additional Information
| Manufacturer | Thermal Grizzly |
|---|---|
| Fitting Type | Extender Fitting |
| Tubing Dimensions | Threaded |
| Fitting Thread | G1/4 |
| Color | Nickel |
| Included | 1x Thermal Grizzly DeltaMate 28mm Male to Female Extender Fitting - MF28 - Matt Nickel |
| Material | Brass |
