Details
DeltaMate Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.
General information
The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

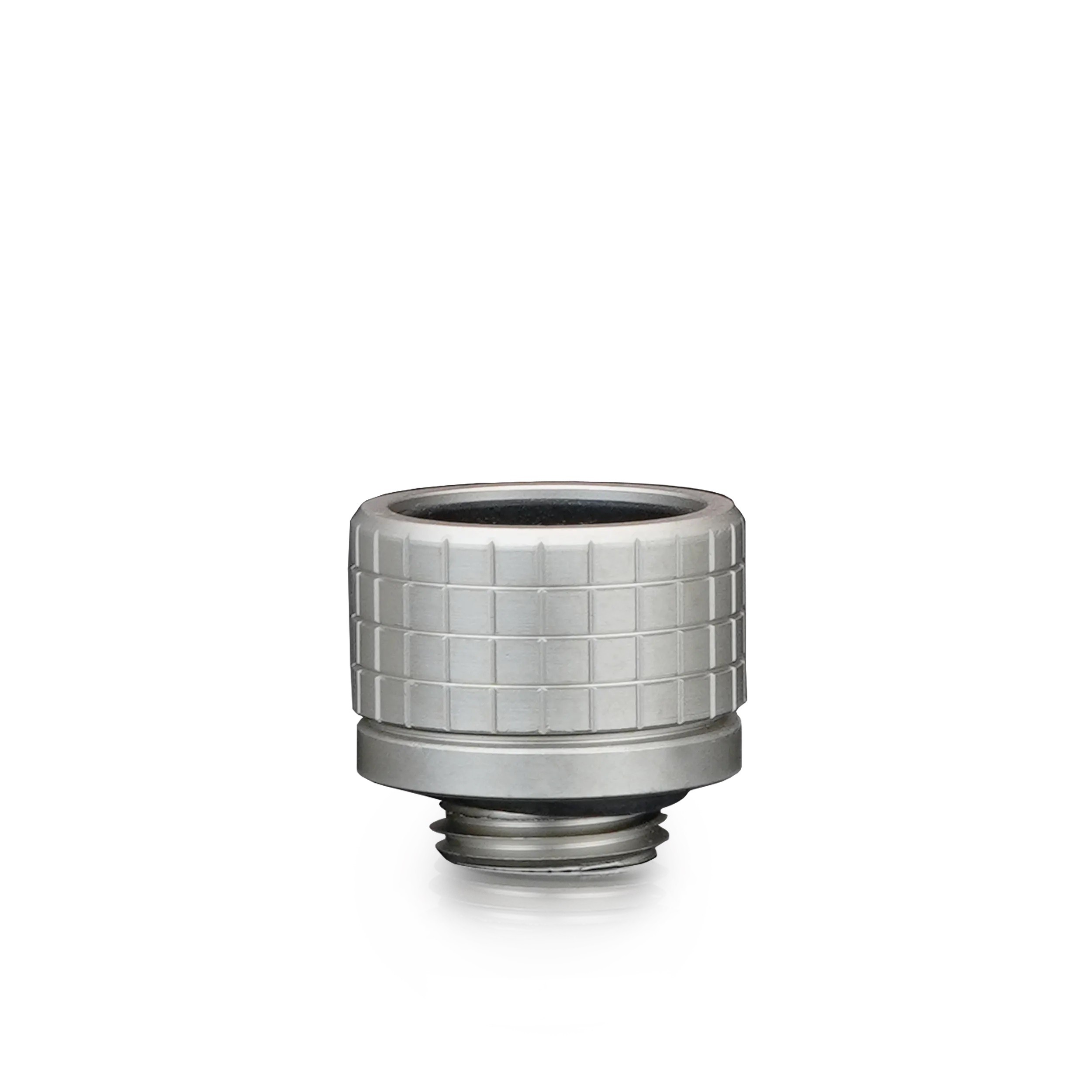

The DeltaMate HT16 fitting in matt nickel is designed for tubes (hard tubes) made of rigid plastics or metals with a 16 mm outer diameter. The HT16 fitting is designed for ease of tube measuring and installation. For this, the tube does not penetrate into the fitting but is mounted on top of it. For a premium finish that is also easy to clean, the fittings are coated with matt nickel finish.
- Flat base enables tubing to be installed from any direction with complete visibility.
- High surface area custom O-ring securely grips the tubing with high retention force.
- Compact overall dimensions facilitate installation in almost any watercooling loop.
- Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
- Robust design allows installation with an 8mm hex key.
Note:
Only for hard tubes with 16mm outer diameter
Additional Information
| Manufacturer | Thermal Grizzly |
|---|---|
| Fitting Type | Compression Fitting |
| Tubing Dimensions | 16/12mm Hardline Tube |
| Fitting Thread | G1/4 |
| Color | Nickel |
| Included | 1x Thermal Grizzly DeltaMate 16mm HardTube Compression Fitting - HT16 - Matt Nickel |
| Material | Brass |
