Details

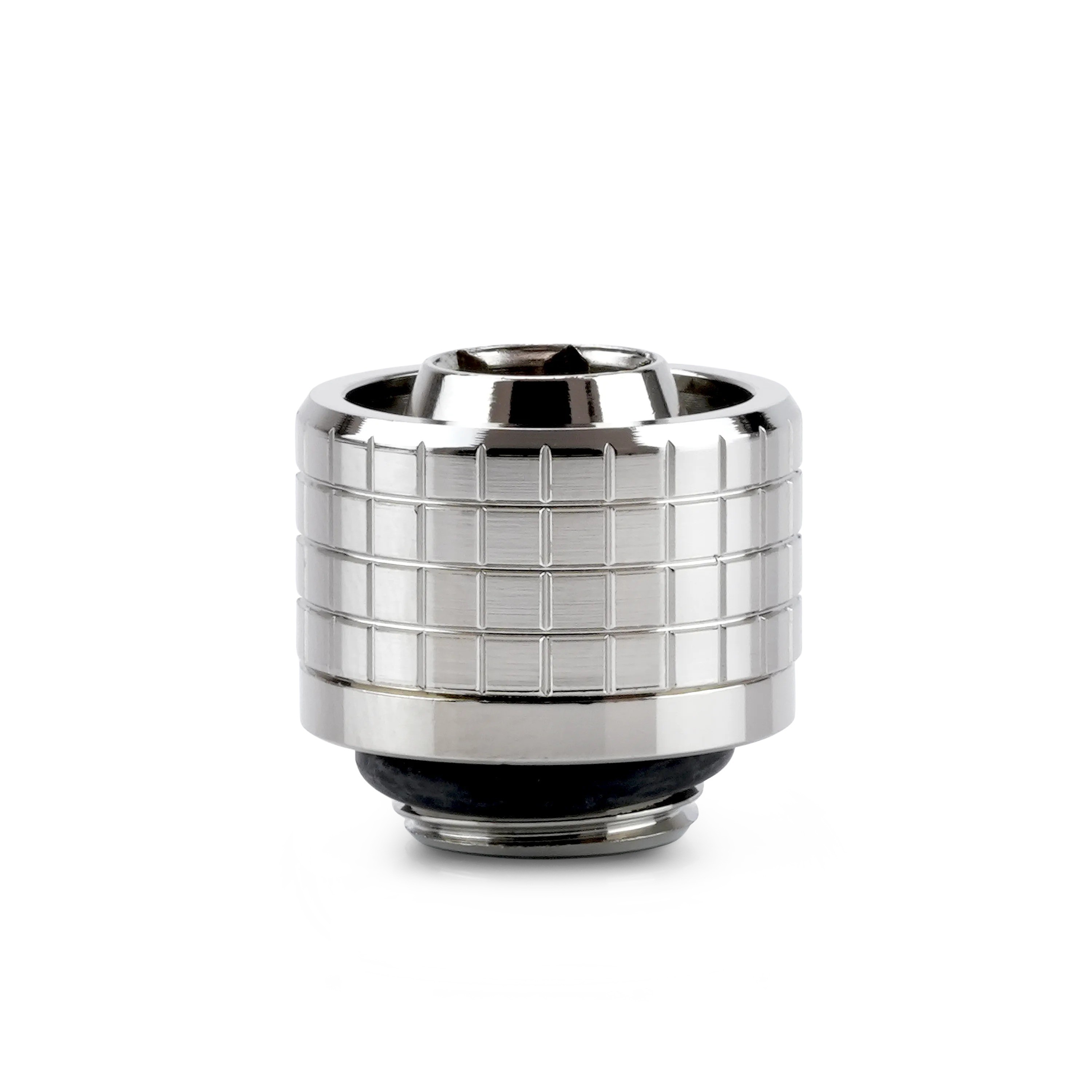

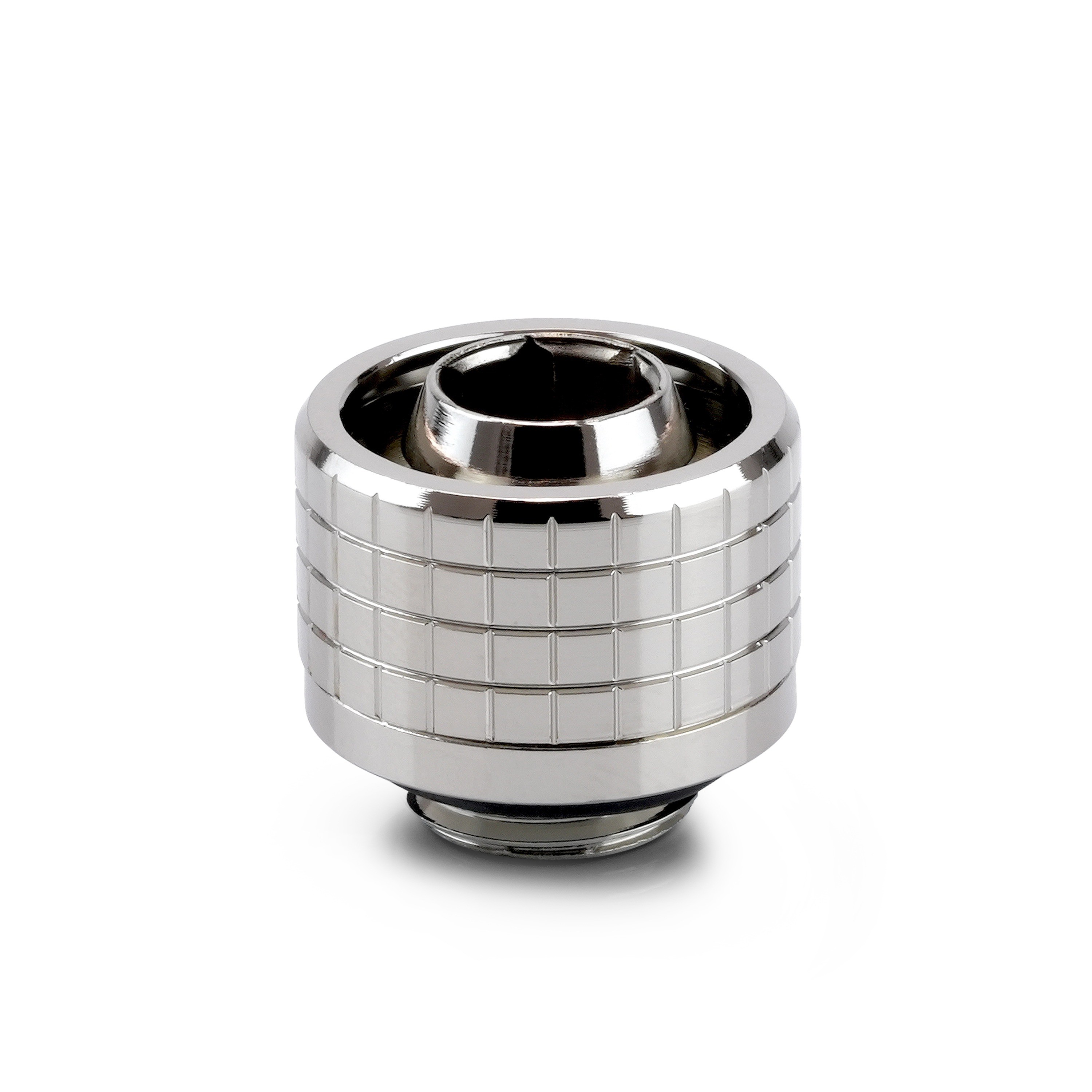

Thermal Grizzly's DeltaMate 16/10mm SoftTube Compression Fitting ST16 in Gloss Nickel is a G1/4" fitting for soft tubes with a 10/16 mm diameter. The same fitting comes in black and matte nickel, we also list it as a 6 pack, and for 13/10 mm soft tubing there is the ST13.
Properties
- Tubing
- Soft tube, 10 mm inner / 16 mm outer diameter
- Thread
- G1/4"
- Material
- Brass, glossy nickel
- O-ring
- EPDM
- Install
- 8 mm hex key
General information
DeltaMate fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As is expected from Thermal Grizzly quality, the fittings are precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The glossy nickel finish the fittings are coated with is, in Thermal Grizzly's words, premium and also easy to clean.
Tube installation

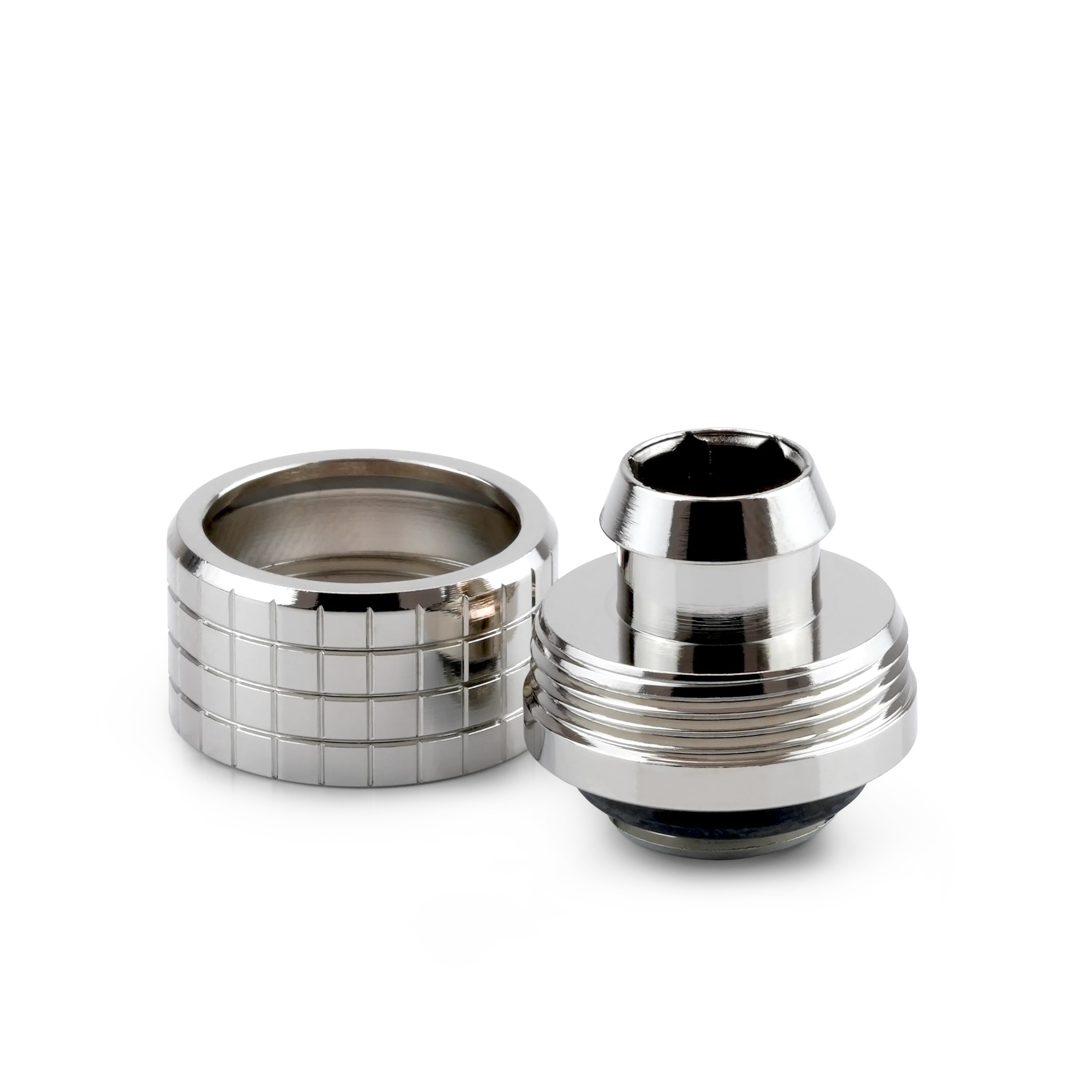

The ST16 fitting in glossy nickel is suitable for soft tubes made of flexible plastics. A single tapered barb allows straightforward installation for a wide range of flexible tubes. In combination with it, a knurled compression ring securely grips the tubing with high retention force, and that allows for easy and secure tube installation.
Note: The fitting is only for tubes with 10mm inner diameter / 16mm outer diameter.

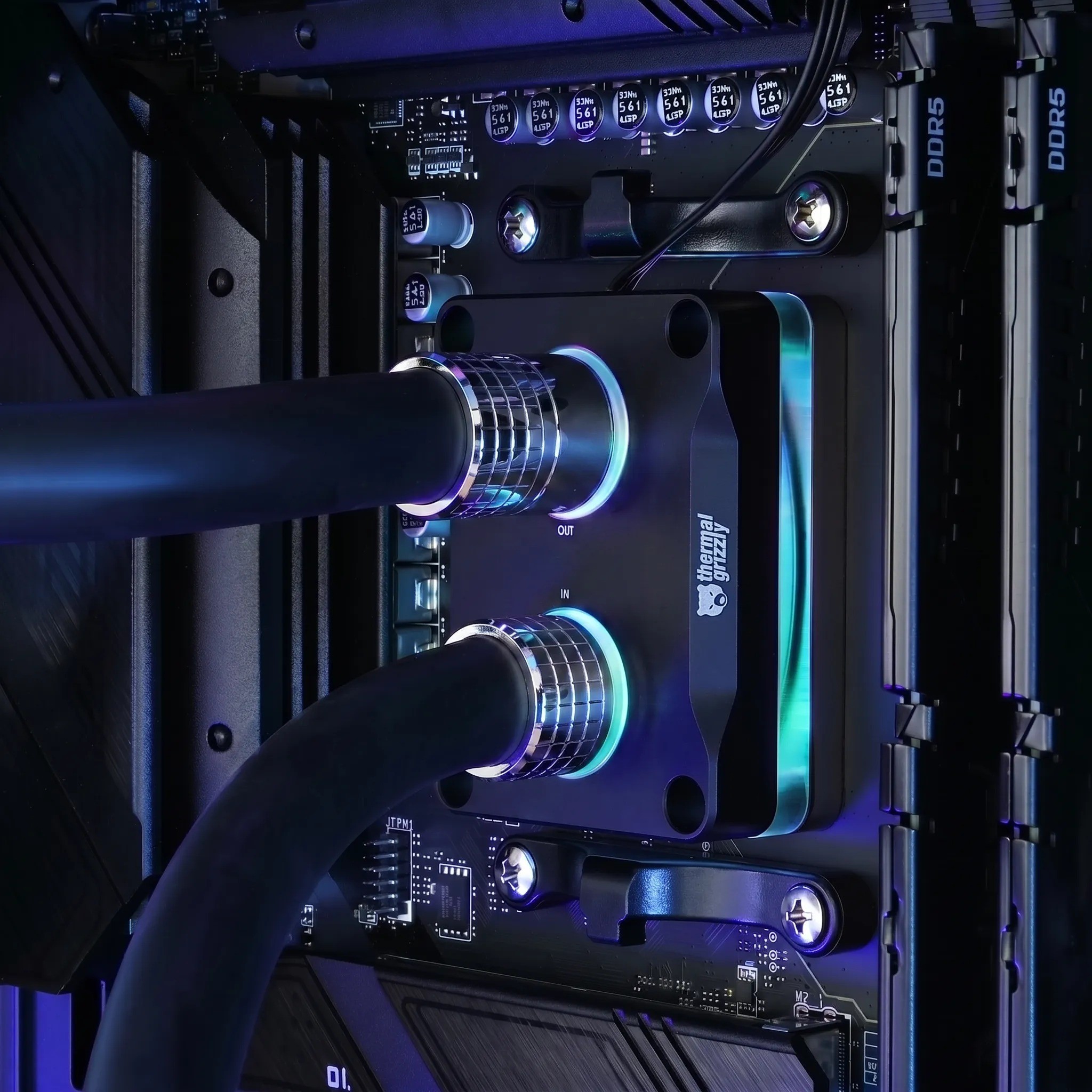

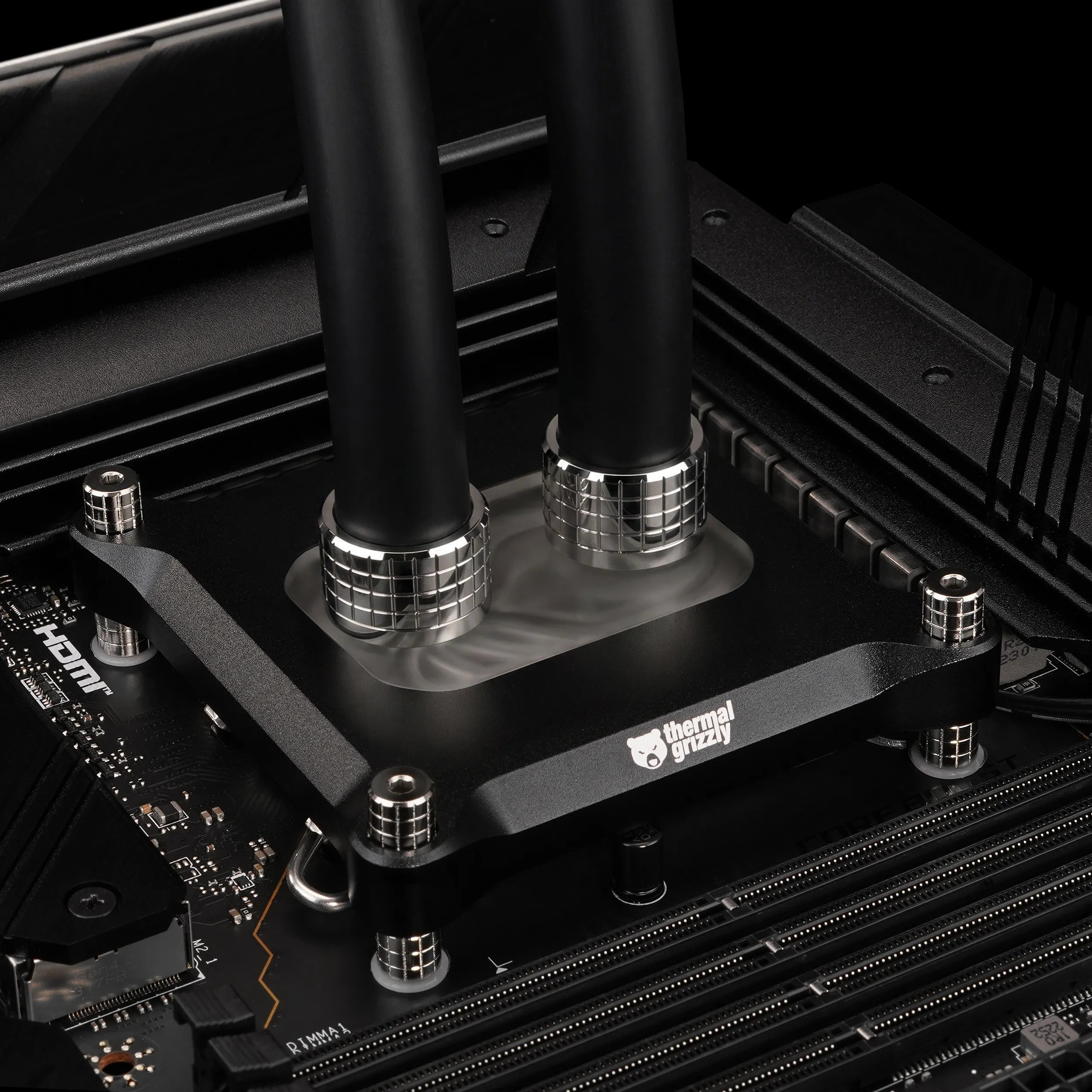

Fit in the loop
Installation is done using an 8 mm hex key (8mm), which the robust design of the DeltaMate fittings allows for. The compact overall dimensions facilitate installation in almost any watercooling loop. All DeltaMate fittings have the same uniform, consistent outer diameter, which ensures completely seamless integration of the individual components.
In the box
- 1x DeltaMate ST16 16/10mm SoftTube compression fitting, gloss nickel

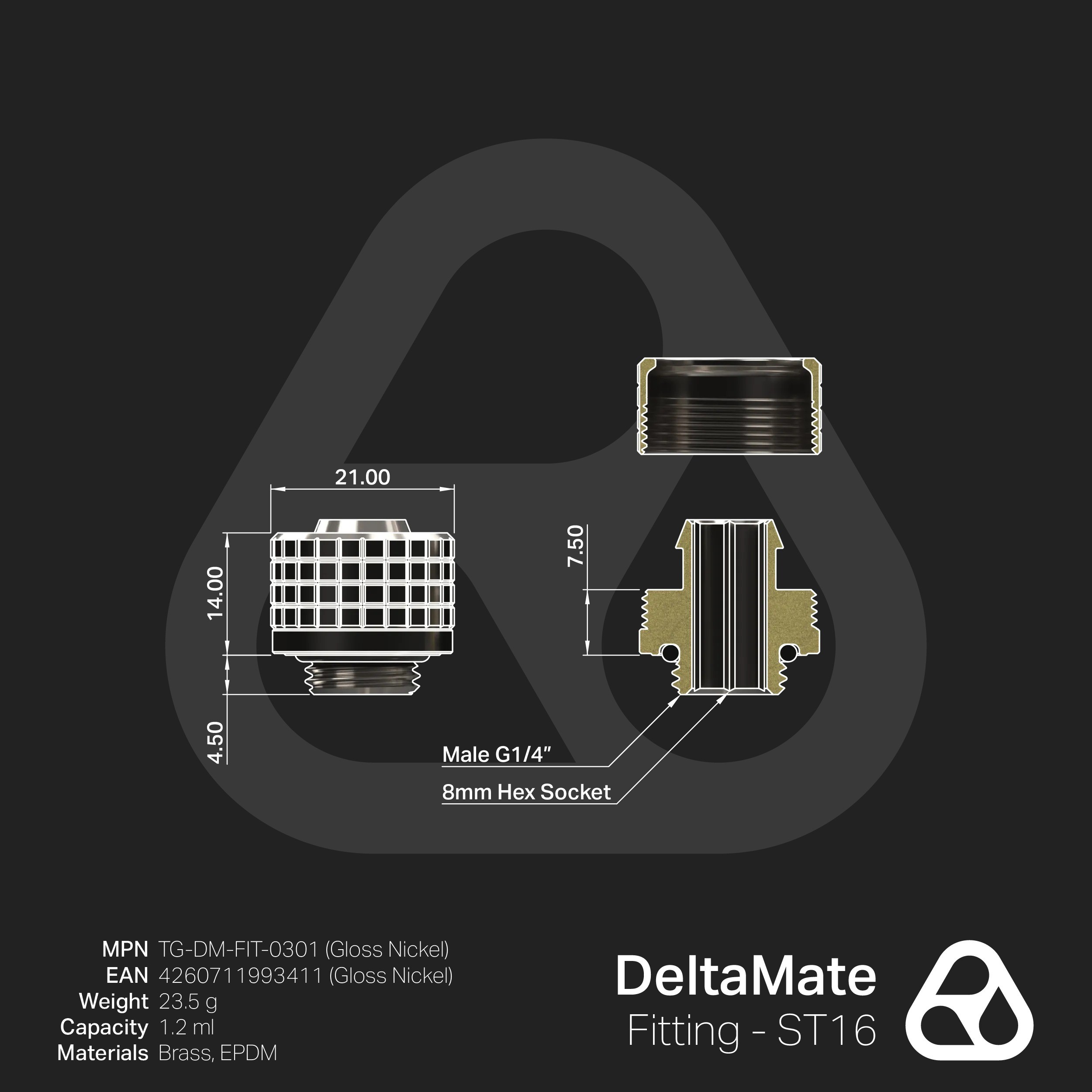

Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
