Details

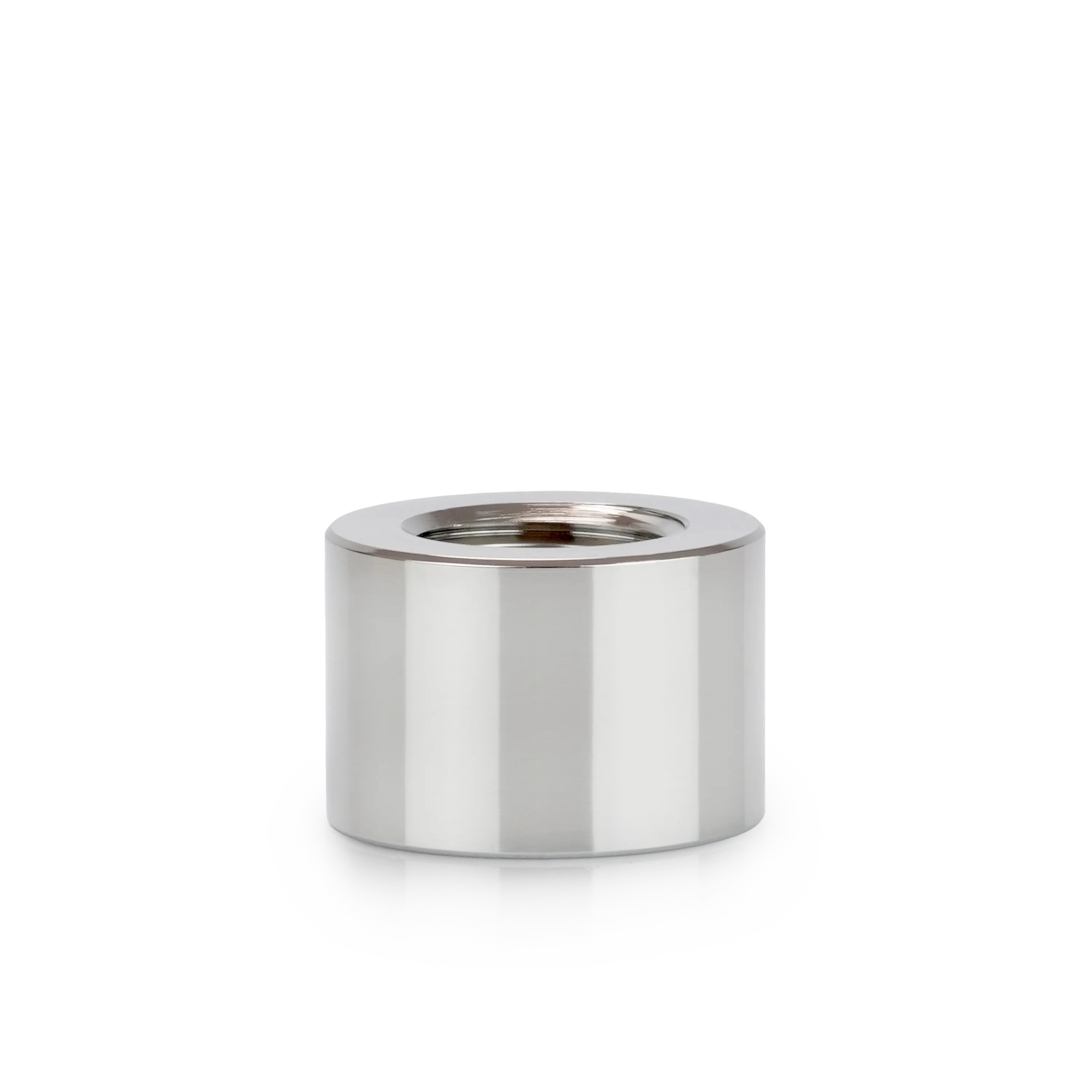

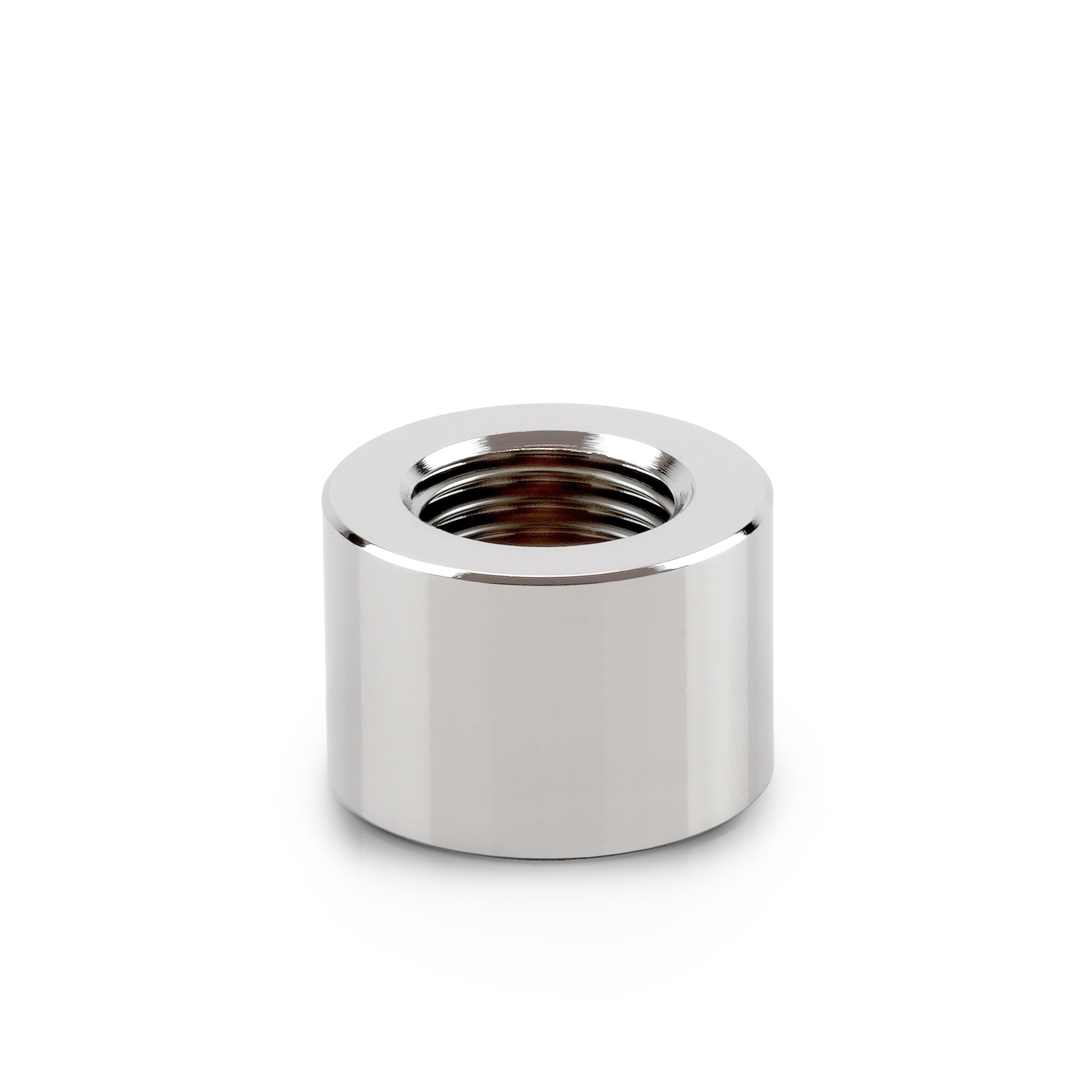

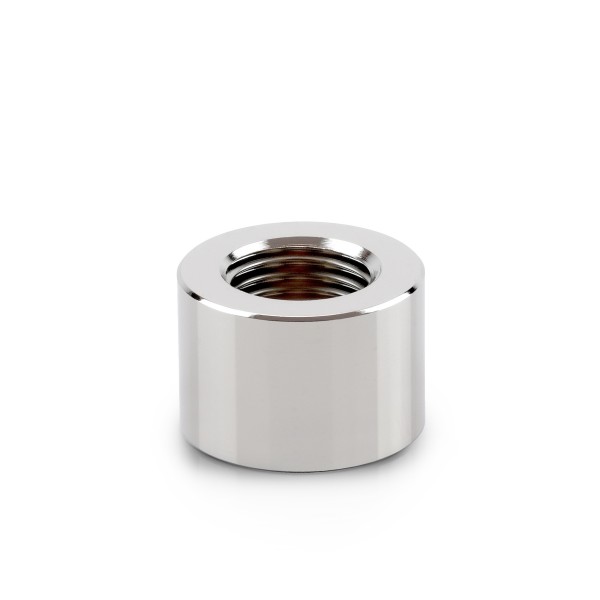

Thermal Grizzly's DeltaMate 14mm Female to Female Extender Fitting (FF14) in Gloss Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 14 mm. The same extender comes in black and matte nickel.
Properties
- Added spacing
- 14 mm, fixed length
- Threads
- G1/4" female, both ends
- Material
- Brass, glossy nickel plating
- O-rings
- EPDM
- Install
- 8mm hex key
- Thread depth
- 4.5 mm maximum

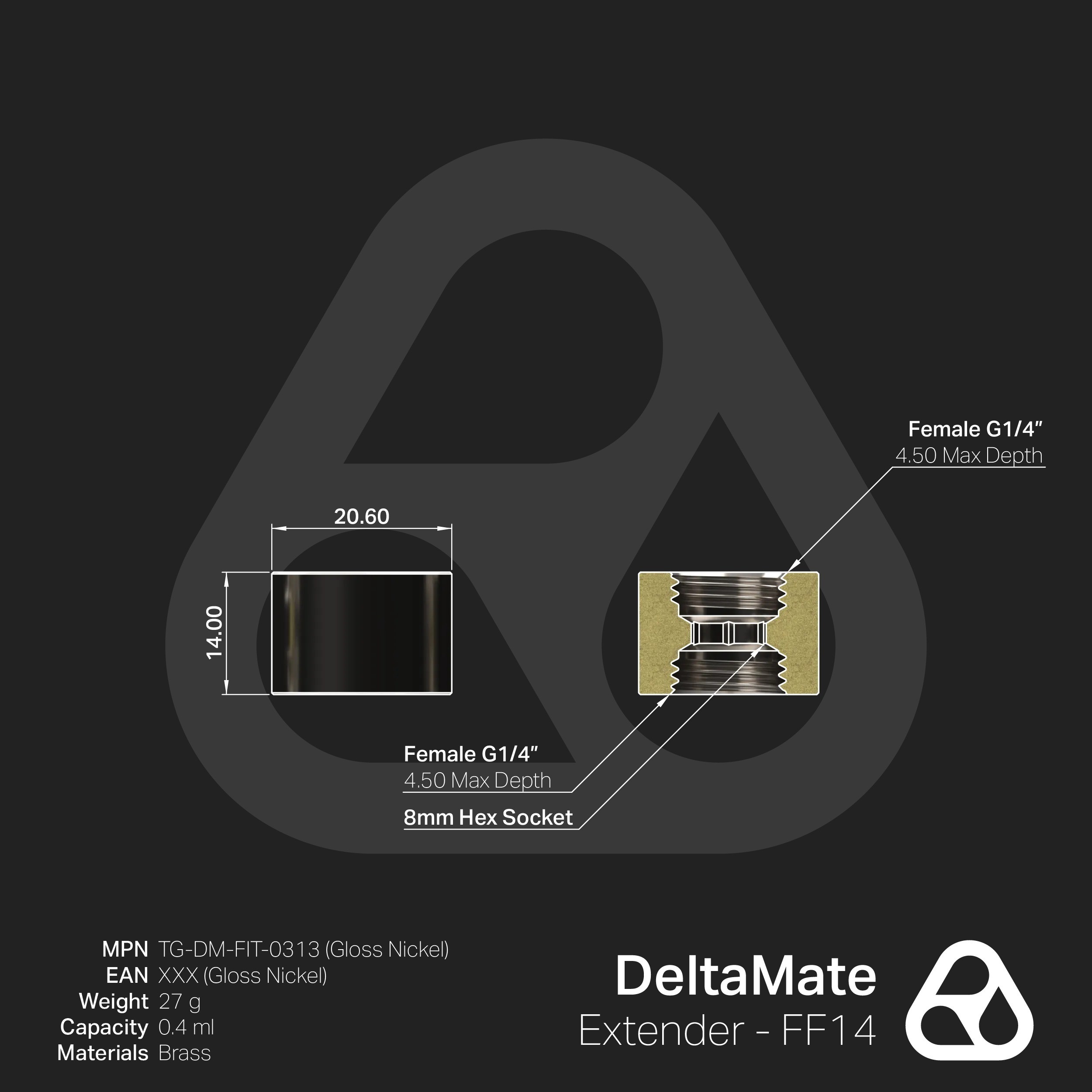

Threads and spacing
The FF14 features two G1/4" female threads. It is a practical way to increase the distance between ports and fittings by a set 14mm. Note the maximum thread depth: 4.5mm!
General information
DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a glossy nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.
In the box
- 1x DeltaMate FF14 extender fitting, gloss nickel
Thermal Grizzly's data sheet for the DeltaMate fittings is a PDF.
