Details

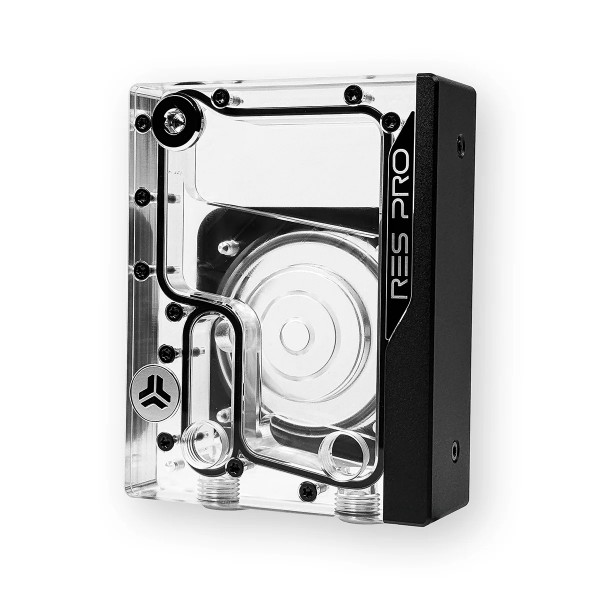

The SC ResPro 95 D5/DDC D-RGB is a versatile pump/reservoir combo in a modern flat design.
It supports both D5 and DDC pumps and offers a total of 5x G1/4" ports, providing flexible integration options for various water cooling setups.
Mounting the ResPro Series
The ResPro series models 95 mm, 120 mm, 240 mm, and 360 mm are mounted using standardized 120 mm fan holes (105 mm hole spacing). The 140 mm and 280 mm ResPro models use standardized 140 mm fan mounting holes (125 mm hole spacing). This ensures easy installation and compatibility with most cases – whether on radiators, case walls, or using special mounting brackets.
Made from precisely milled acrylic. The front panels of the ResPro series are crafted from 8 mm cast acrylic (GS) to prevent stress cracks. On the side, a high-quality black anodized aluminum cover conceals the D-RGB lighting. The SC ResPro 95 combines clean aesthetics with robust functionality.
The integrated addressable D-RGB lighting ensures even illumination without disturbing LED hotspots, and can be easily serviced or replaced if needed.
A specially designed EPDM gasket ensures reliable long-term sealing. The flat form factor and thoughtfully placed ports make the ResPro 95 an ideal choice for space-saving builds or demanding custom loops.
Whether you're planning a minimalist show build or a performance-oriented workstation setup – the SC ResPro 95 D5/DDC D-RGB is the perfect choice.
Coolant Notice
For safe and long-lasting operation, only compatible coolant should be used. This especially protects the distro plate from material damage and reliably safeguards all water cooling components from corrosion, deposits, and leaks. A list of recommended compatible coolants is available for reference.
Technical Specifications of the ResPro 95
- CNC-milled and hand-assembled in Germany
- Product dimensions (W x H x D): 95 x 120 x 33 mm
- Color: transparent acrylic, black anodized aluminum cover
- Material: acrylic glass, anodized aluminum cover
- Reservoir volume: approx. 75 ml (chamber + channel)
- D-RGB cable length: 500 mm
- Ports: 5 x G1/4"
- Mounting: 4 x M4 screws for installation in a 120 mm fan slot (Recommended: SK-UNI mounting bracket 60 mm (120 mm fan) for D5 pumps & SK-UNI mounting bracket 28 mm (120 mm fan) for DDC pumps)
Scope of Delivery
- 1x SC ResPro 95 D5/DDC D-RGB (without pump)
- 4x M4 mounting screws
- 3x G1/4 plugs
Important Notice
- Compatible with any case that supports a 120 mm fan mount.
- D5 or DDC pump is not included.
- Using incompatible coolant can damage acrylic components.
- DDC and D5 pumps are water-lubricated and must not run dry, otherwise permanent bearing damage may occur.
- Do not use alcohol-based cleaning or solvent products on the reservoir or distro plates, as they can damage the acrylic.
Additional Information
| Manufacturer | Stealkey Customs |
|---|---|
| Overall Dimensions | 95 x 120 x 33 mm |
| Color | Black / Clear |
| Reservoir Size | 75ml |
| Reservoir Type | Other |
| Tube Diameter | N/A |
| Number of Ports | 5x G1/4 |
| Pump Included | No |
| Material | Acrylic |
| Pump Compatibility | D5/DDC |
| Included | 1x SC ResPro 95 D5/DDC D-RGB (without pump) 4x M4 mounting screws 3x G1/4 plugs |
