Details

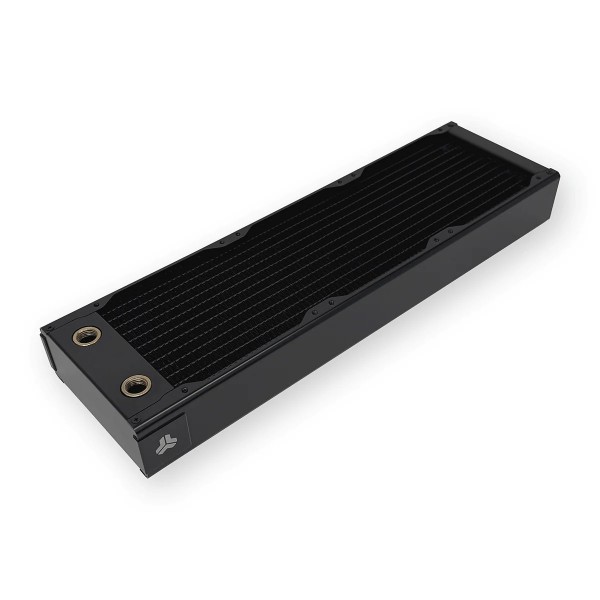

The Stealkey Customs RadPro L360 H48 is a 360 mm radiator for three 120 mm fans, 48 mm thick. Inside is a copper core with brass end chambers, and the frame around it is coated stainless steel in black. Logo plates on both ends can be swapped so the Stealkey logo stays upright however you mount it, and the whole radiator comes apart for modding.
Properties
- Type
- 360 mm radiator (3x 120 mm fans)
- Thickness
- 48 mm
- Dimensions
- 404 x 122 x 48 mm
- Fans
- Up to 6x 120 mm (push/pull)
- Ports
- 2x G1/4"
- Materials
- Copper core, brass chambers, coated stainless steel frame
- Color
- Black
Copper core with brass chambers
The fins are 99.9% copper and the end chambers are brass. Stealkey says the brass chambers and copper channels spread the heat quickly and evenly and reduce hot spots in the loop. Copper and brass together make the RadPro a good match for loops built from copper, brass and nickel parts.
Coated stainless steel frame
The side rails, end covers and logo plates are stainless steel with a black coating. Stealkey says the steel gives the radiator a stable structure, reliable corrosion protection and an even, high-quality look.
Quiet at low speed, more with push/pull
- Stealkey says the core already cools very well at low fan speed and that performance rises almost linearly as the fans speed up.
- Low speed: efficient cooling with very little noise.
- Medium speed: a balance between noise and temperature.
- High speed or push/pull: the most heat removed, with up to six 120 mm fans on both sides.
Easy on the pump
Stealkey says the RadPro has low air and water resistance, so it adds little load to the pump. Several RadPro radiators can be run in series on one D5 or DDC pump without overloading it.
Fitting it in your case
The two G1/4" ports sit side by side on one end, 60 mm apart, and take any standard fitting without special adapters. At 122 mm wide the radiator fits standard 120 mm fan mounts without changes to the case. The box has two sets of M4 screws: M4 x 30 mm screws to fix 25 mm thick fans to the radiator, and short M4 x 5 mm screws to fix the radiator directly to the case or a fan grill. Stealkey says a screw that is too long only touches the fins and not the water channels, but stay with the supplied lengths anyway.
Logo plugs and a modular build
Each end of the radiator has a removable logo plug. To turn the logo the right way up for a top or bottom mount, slide both plugs forward, swap them left to right and push them back on until they click. The rest comes apart too: the side plates are held by Torx screws, and with them off the copper core can be taken out for custom paint, engraving or other mods. The logo plugs have a free area of 31.5 x 30.5 mm that can be laser engraved; Stealkey sells engraved plugs separately.
Technical data
| Article number | 11483 |
| Size | 360 mm (3x 120 mm) |
| Fan compatibility | 120 x 120 x 25 mm fans |
| Fan positions | Up to 6x 120 mm (push/pull) |
| Dimensions (L x W x H) | 404 x 122 x 48 mm |
| Ports | 2x G1/4" |
| Port spacing | 60 mm |
| Fins | Copper (99.9%) |
| End chambers | Brass |
| Side rails and end covers | Stainless steel, black coated |
| Fan screw thread | M4 |
| Supplied screws | M4 x 30 mm (black), M4 x 5 mm |
| Pressure tested | 1 bar |
| Weight | 1.4 kg |
| Color | Black |
Notes
- Do not use this radiator in a loop with aluminum parts. Stealkey recommends a coolant with corrosion protection.
- The supplied M4 x 30 mm screws are made for standard 25 mm thick fans.
- Stealkey keeps the paint on the copper fins very thin so it does not hurt heat transfer. Because of that, the fins can show an orange shimmer from some angles.
- Always leak test the loop before you power on the system. The installation manual gives 0.5 bar as the maximum test pressure.
- Stealkey makes the RadPro L360 H48 in black.
In the box
- 1x Stealkey Customs RadPro L360 H48 Radiator - Black
- 12x M4 x 30 mm screws for 25 mm thick fans
- 12x M4 x 5 mm screws for mounting the radiator directly to the case or fan grill
Stealkey's installation manual is a PDF.
