Details

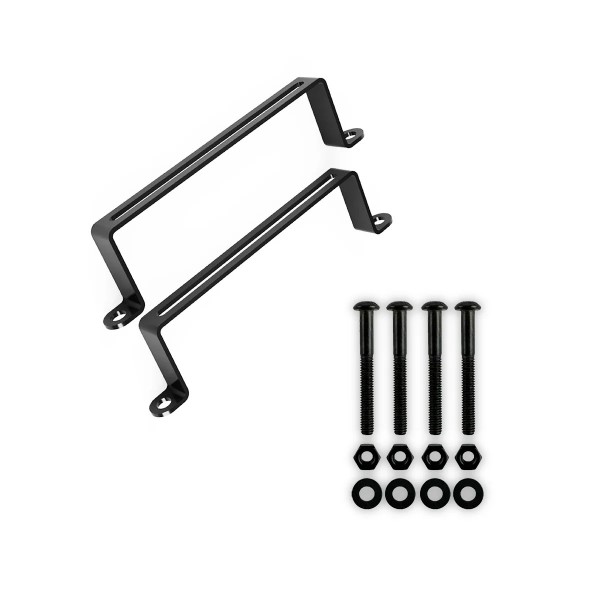

The Stealkey Customs SK-FLEX Mounting Bracket 28 mm is a pair of black steel brackets with rails that hold a Stealkey CubeTube Distroplate 28 mm in front of any 120 mm fan mount (105 mm hole spacing). The rails let you fit the distro plate vertically or horizontally and slide it to the position you want.
Properties
- Type
- Mounting bracket pair with rails for CubeTube Distroplates
- Fan mount
- 120 mm (105 mm hole spacing)
- Distance
- 28 mm
- Material
- Steel, 1.5 mm, black painted
- Color
- Black
- Pieces in the pack
- 1 pair
Mount in front of a fan, grill or radiator
The brackets fix the CubeTube Distroplates to the 120 mm mounting holes of a fan grill, radiator or fan. The brackets are screwed through the fan holes, and the distro plate is fixed to their rails.
Vertical or horizontal
The rails allow the CubeTube Distroplate to be mounted vertically or horizontally, so it can follow the layout of your loop instead of the fan mount.
Airflow behind the plate
Stealkey says the 28 mm distance gives a larger, unhindered airflow through the case when the distro plate sits in front of a radiator or fan.
Folded steel
Each bracket is folded from 1.5 mm steel and painted black, which Stealkey says gives a stable mount.
Compatible Stealkey parts
- Stealkey CubeTube Distroplate 240 mm - Acrylic
- Stealkey CubeTube Distroplate 360 mm - Acrylic
Technical data
| Article number | SW10136 |
| Dimensions per bracket (W x H x D) | 115 x 28 x 13 mm |
| Fan mount | 120 mm (105 mm hole spacing) |
| Distance to the mount | 28 mm |
| Material | Steel, 1.5 mm thick, folded |
| Finish | Black paint |
| Color | Black |
Notes
- For SK-UNI distro plates and reservoirs, and for pump combos with a DDC pump on the back, Stealkey makes the SK-UNI Mounting Bracket 28 mm.
In the box
- 1x pair of SK-FLEX mounting brackets 28 mm (120 mm fan)
- 4x M4 washers
- 4x M4 x 35 mm mounting screws
- 4x M4 x 6 mm mounting screws
- 4x M4 nuts
