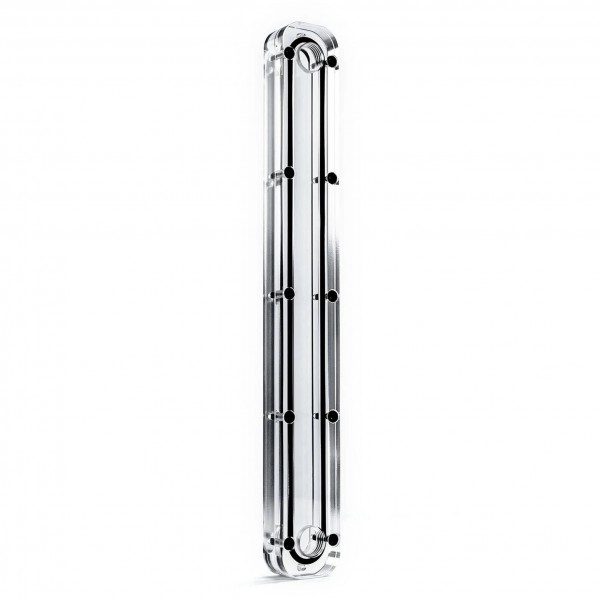

Stealkey Customs CubeTube 240mm - Acryl (SW10117)

The Stealkey Customs CubeTube 240 mm is a clear acrylic block with a milled channel inside that looks like a straight run of hard tube. Two G1/4" ports sit on the front face, 210 mm apart, so it links two components in the loop with a clean, solid look. It measures 240 x 31 x 16 mm and is CNC-milled and hand-assembled in Germany.

Properties

Type

Acrylic hard tube alternative (CubeTube)

Length

240 mm

Ports

2x G1/4" on the front, 210 mm apart

Channel

Like a 12 mm inside diameter hard tube

Material

Acrylic, EPDM seals

Color

Clear

A hard tube look without bending

Stealkey made the CubeTube as its first joint product with LiquidHaus. It has the character of a hard tube and can lift the look of a new or existing loop, without the work of cutting and bending acrylic tube. The channel inside matches a hard tube with a 12 mm inside diameter.

Made to keep the coolant moving

Stealkey says the channel is shaped so that coolant does not collect and stand in it, so the CubeTube does not disturb the flow through the loop.

Clear milled acrylic, sealed with EPDM

The milled surfaces are almost fully transparent, which gives the part its high-quality look. The halves are sealed with EPDM gaskets, which Stealkey says stay tight even under high loads.

Mounting

Two mounting holes on the back, 232.8 mm apart, take the two M3 x 5 mm screws from the box, so the CubeTube can be fixed to a panel or bracket instead of hanging in the loop.

Technical data

Notes

• Stealkey makes the CubeTube in 60, 120, 140, 240, 280 and 360 mm lengths, plus a 60 mm version with diagonal ports. This listing is the 240 mm version.
• Clean acrylic parts with water only. Alcohol-based cleaners and solvents can cause stress cracks in acrylic, and Stealkey warns that incompatible coolants can damage acrylic parts as well.

In the box

• 1x Stealkey Customs CubeTube 240mm - Acryl
• 2x M3 x 5 mm mounting screws
