Details

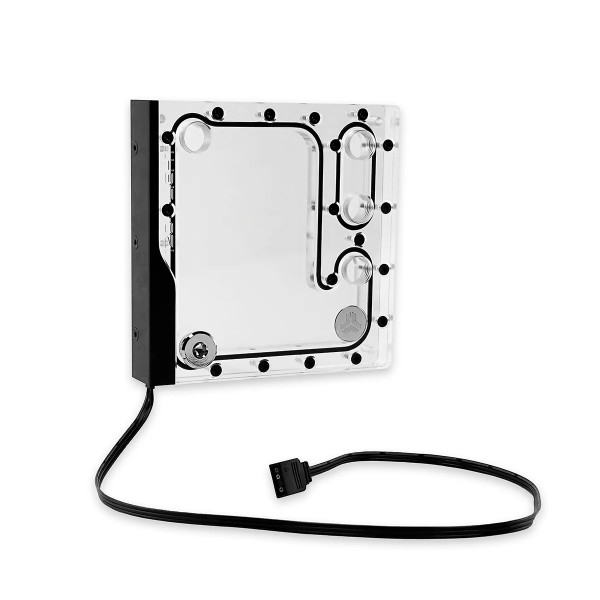

The Stealkey Customs SC 120 Light Distroplate D-RGB is a compact distro plate for the rear 120 mm fan position of a case, above the PCIe slots. It measures only 120 x 120 x 23 mm, holds about 60 ml in its chamber and channel, and connects the CPU block directly, with more ports for a GPU block or radiators. A powder-coated steel plate hides the D-RGB strip.
Properties
- Type
- Distro plate for the rear 120 mm fan position
- Size
- 120 x 120 x 23 mm
- Ports
- 5x G1/4"
- Volume
- approx. 60 ml
- CPU port spacing
- 28 mm
- Lighting
- D-RGB, 3-pin 5V
- Color
- Transparent, matte black steel plate
Made for the rear fan position
The 120 Light takes the place of the rear 120 mm fan above the PCIe slots and is screwed to the case with the four included M4 x 5 mm screws through the 105 mm fan hole pattern. Inside, a chamber and a channel hold about 60 ml of coolant.
Five ports, straight to the CPU
The plate has 5x G1/4" ports: 1x CPU IN, 1x CPU OUT, 2x FILL/GPU/RAD and 1x DRAIN. CPU IN and CPU OUT are exactly 28 mm apart, so a CPU block with the same port spacing connects with straight tubes. The other ports bring in a GPU block or a radiator, or serve to fill the loop. The plate has no pump mount, so the pump sits elsewhere in the loop.
Clear acrylic, visible machining
Stealkey mills the plate to be as transparent as possible. The inner milling marks are left visible on purpose and are not polished, which shows the CNC machining and gives a clear view of the flowing coolant. A fine "120 Light" engraving on the acrylic completes the look.
D-RGB behind a steel plate
On the left side a powder-coated steel plate in matte black hides the D-RGB strip. The lighting connects to a 3-pin 5V ARGB header on the motherboard with the included 500 mm cable.
Coolant and care
Stealkey asks for a coolant that is compatible with acrylic, because an unsuitable coolant can damage the acrylic parts; Stealkey keeps a coolant compatibility list on its website. Clean the acrylic only with a microfiber cloth and never with alcohol-based cleaners or solvents, which cause stress cracks. Stealkey recommends rinsing the part before installation to remove any last machining residues.
Technical data
| Model | SC 120 Light Distroplate D-RGB (SW10164) |
| Type | Distro plate |
| Dimensions (W x H x D) | 120 x 120 x 23 mm |
| Reservoir volume | approx. 60 ml (chamber and channel) |
| Ports | 5x G1/4" (CPU IN, CPU OUT, 2x FILL/GPU/RAD, DRAIN) |
| CPU IN to CPU OUT | 28 mm |
| Connects | CPU block, GPU block or radiator |
| Material | Acrylic, powder-coated steel plate |
| Color | Transparent, matte black |
| D-RGB cable | 500 mm |
| D-RGB connector | 3-pin 5V ARGB |
| Mounting | 4x M4 x 5 mm screws, 120 mm fan position (105 mm hole spacing) |
| Made in | Germany, CNC-milled and hand-assembled |
Notes
- Screw fittings into the acrylic hand-tight only and do not use a wrench; an overtightened fitting can crack the acrylic and leak.
- Leak-test the loop before you power the rest of the system; Stealkey says to test with no more than 0.5 bar.
In the box
- 1x Stealkey Customs SC 120 Light Distroplate D-RGB
- 4x M4 x 5 mm hex socket mounting screws
- 1x SK-Plug G1/4 sealing plug, silver
Stealkey's installation manual is a PDF.
