Details

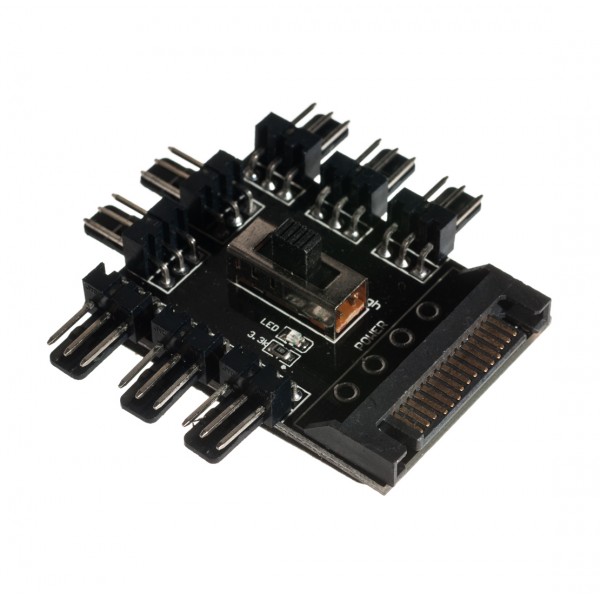

The SATA Power Distribution PCB 8-Way Block is a tidy way to power a large number of 3-pin fans, made for modders, water cooling builders and other power users with many fans in a system or server. A SATA power plug of the power supply feeds the board directly, and eight 3-pin fan headers share the power, so you need no chains of Y splitters.
Properties
- Type
- Fan power distribution board
- Input
- SATA power
- Outputs
- 8x 3-pin fan header
- Output power
- 12V DC at up to 4A draw
- Color
- Black PCB and connectors
- Mounting
- Adhesive backing
- Pieces in the pack
- 1
One point for all your fans
Why use clumsy Y splitters that add to cable clutter when you can have one clean point that distributes power to all your 3-pin fans? Plug a SATA power cable of the power supply into the board and connect up to eight fans to the headers around it.
Mount it anywhere
The small board has an adhesive backing, so you can mount it almost anywhere in the case, including the hidden places behind the motherboard tray where modders like to route cables. The black PCB and connectors keep it discreet.
Switch and LED

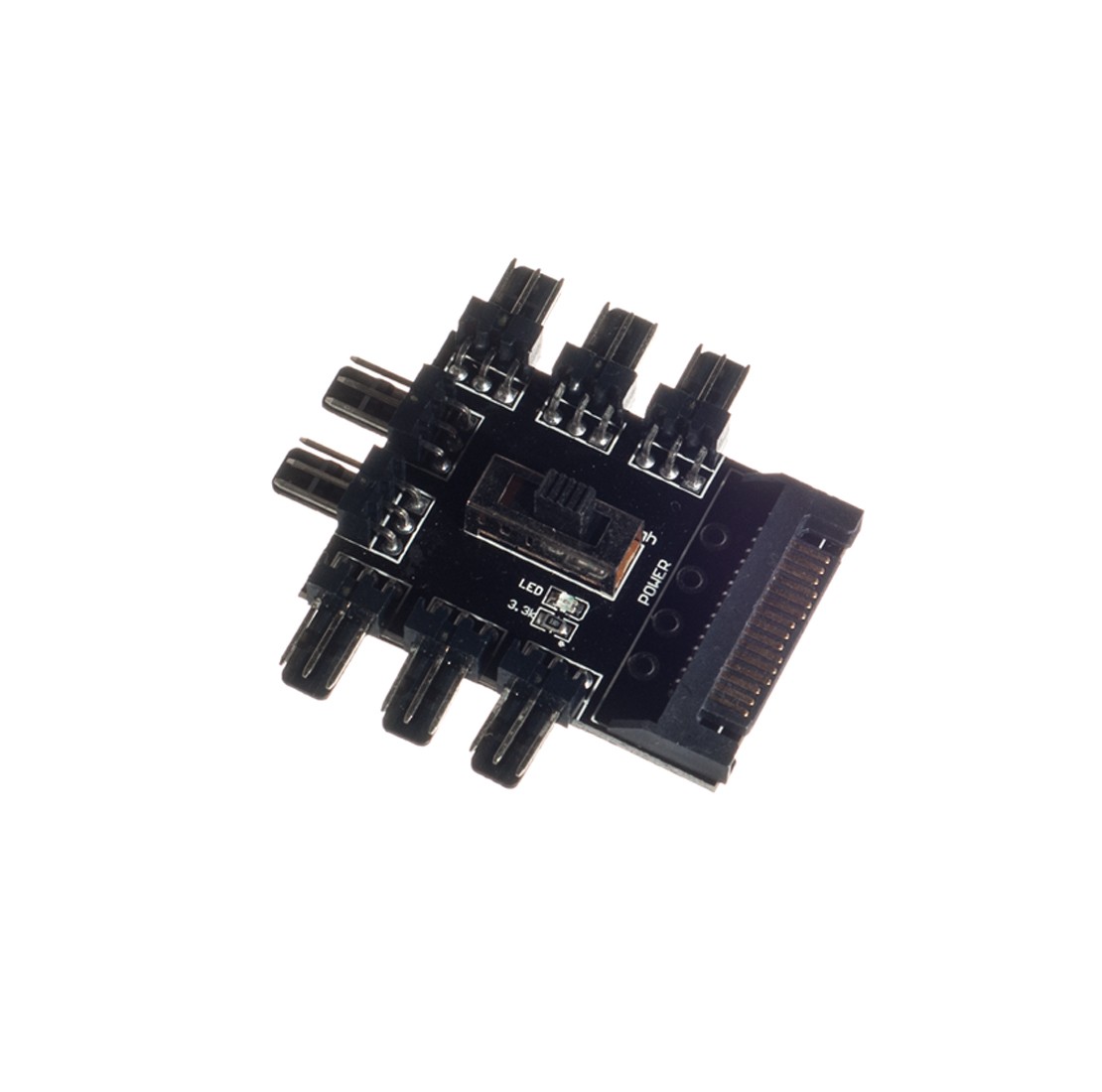

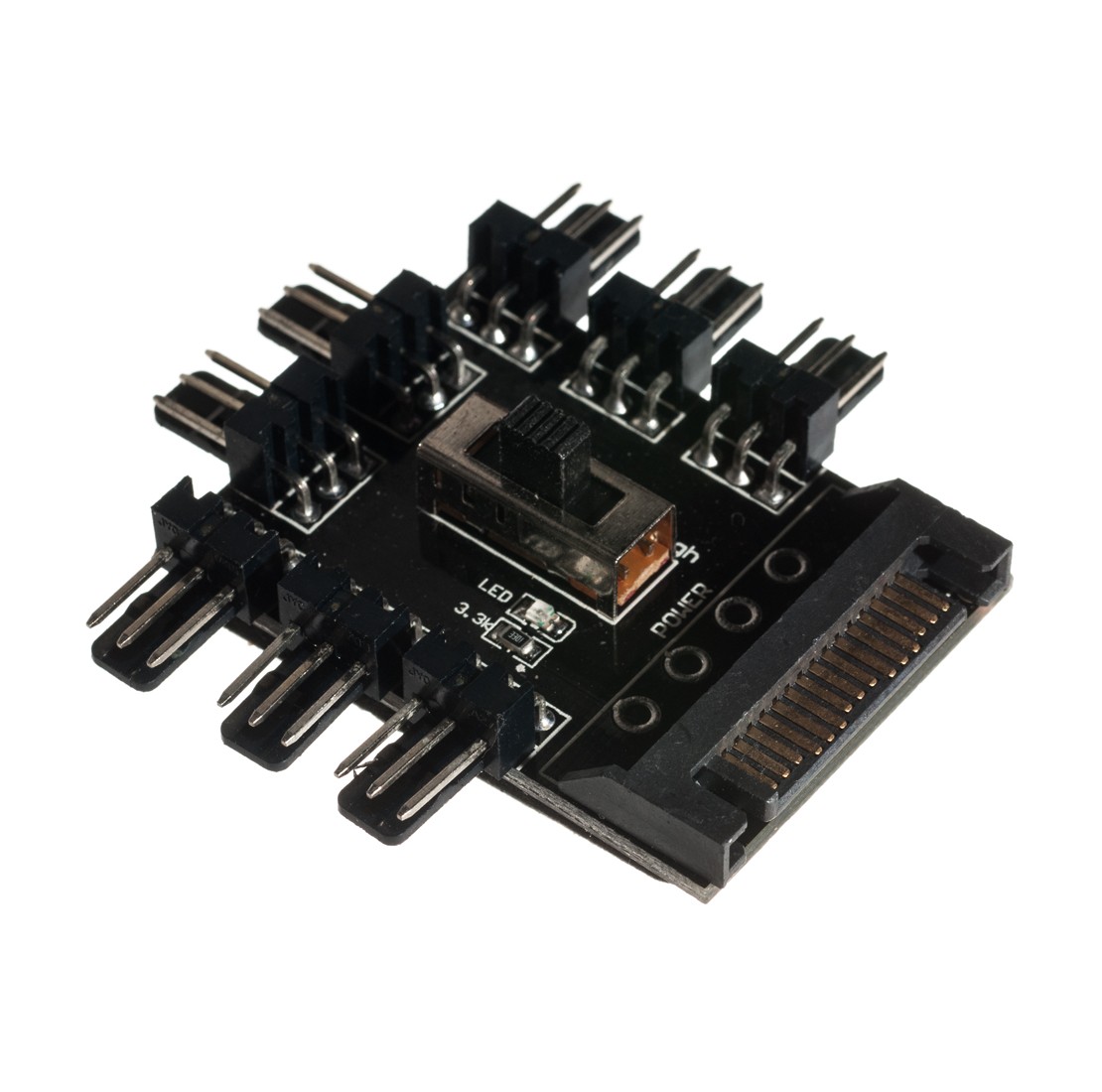

The board carries a slide switch next to the SATA connector and a status LED, both marked on the PCB.
Technical data
| Part number | CAB297 |
| Type code | SATA-3PF-8W |
| Input power | SATA |
| Output power | 8x 3-pin fan |
| Output | 12V DC at up to 4A draw |
| PCB adhesive backing | Yes |
| Color | Black |
Notes
- The fans take their power from the power supply, not from the motherboard, so the motherboard does not control their speed.
- Keep the total current of all connected fans within 4A.
In the box
- 1x SATA Power Distribution PCB 8-Way 3-Pin Block Fan Hub Power Splitter
