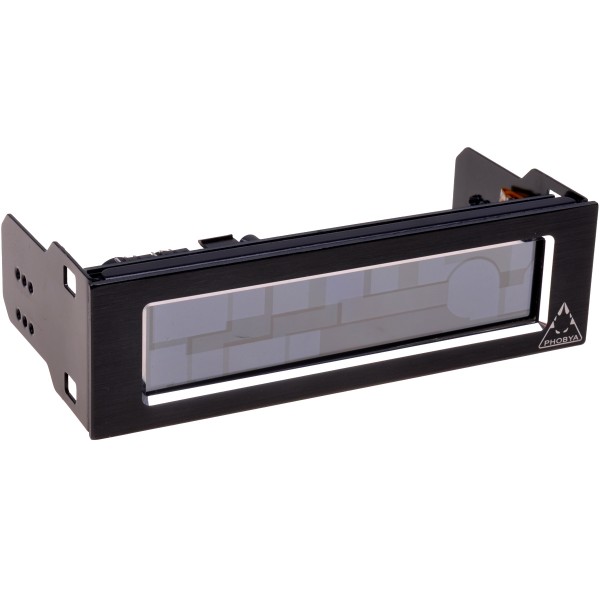

Phobya Touch 530 - Fan Controller - Single Bay 5,25" (70225)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Phobya Touch 530 - Fan Controller - Single Bay 5,25" (70225)

Availability: In stock - Available Now

Sku: 70225

$27.25

Quick Overview

Phobya presents the "Touch 530" an innovative fan controller, which satisfies both, the high technical demands of high-end cooling systems as well as looking great in your modded PC.

OR

Details

Phobya presents the "Touch 530" an innovative fan controller, which satisfies both, the high technical demands of high-end cooling systems as well as looking great in your modded PC. These features makes the Phobya Touch 530 - Fan controller to an attractive building block in particular for users of water cooling. Even the budget-conscious users will be happy because there are hardly any comparable fan controllers that provide at this price level, this abundance of power.


The Phobya Touch 530 has an easy to use touch panel. It can easily adjust the speed with your finger for each channel. Particularly suitable for computer water cooling, as can be driven up to 30 watts per channel, which means depending on the performance of the fan that even 9 fans can be controlled via a channel (at <3W per fan). The fan controllers 5 temperature sensors, a 4-pin connection cable and 5 3-pin extension cable are included.

The Phobya Touch 530 - Fan Controller is characterized by the following features:
-Front is black anodized aluminium
-Monitoring and display of fan speed
-monitoring and display of temperature (° C or ° F) of the sensors
-Manual touch control
-fits mounting in a 5.25 drive bay
-With On / Off switch
-powered by 1 x 4-Pin Molex
-Connection for up to 5 fans via 3Pin

Technical details
Color: black
Manufacturer: Phobya
Design: 1x 5,25" Drive bay
Display: Yes
Max. Power / Channel: 30W
Number of outputs: 5x 3Pin Molex
Number of sensors: 5x 2Pin (10kOhm)
Material front: Aluminium
Power supply: 4Pin Molex 12V DC
Output voltage: 4 - 12V DC
Dimensions: 149 x 42,7 x 70mm


Additional Information

Manufacturer Phobya
Compatibility Single 5.25" Bay
Product Type Fan Controller
Color Black
Voltage 12V
Channels 5
Watts Per Channel 30W
Included 1x Phobya Touch 530 5x 60cm 3Pin Fan connector extensions 5x 50cm sensors 1x 4Pin Molex cable -Mounting Screws -Instructions
Material No
