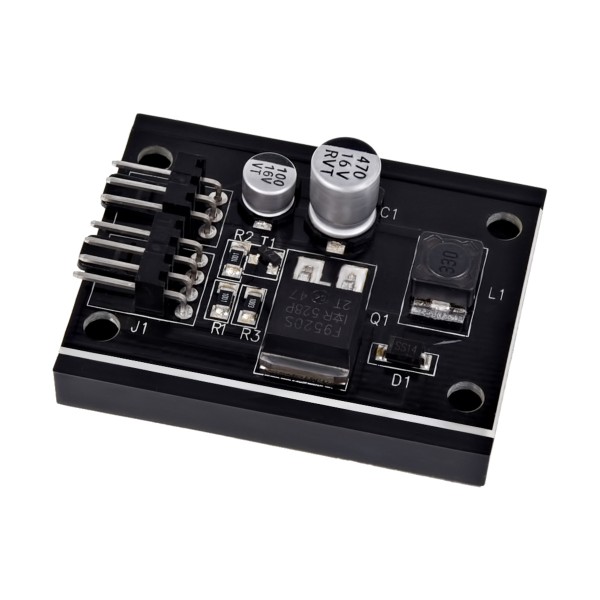

Phobya 4Pin PWM to 3Pin Transformer Single (1011749)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Phobya 4Pin PWM to 3Pin Transformer Single (1011749)

Availability: In stock - Available Now

Sku: 1011749

$3.25

Quick Overview

Convert your 3-Pin fans to have PWM function!
OR

Details

Controlling 3-pin fans through a PWM signal was an unsolvable problem – until now. Phobya has tackled this problem and now presents an elegant, simple solution with the 4-pin PWM to 3-pin converter.

With the 4-pin PWM to 3-pin transformer, all 3-pin fans can now be controlled with a normal PWM signal. The converter is connected to your motherboard or PWM fan control, while the fans are connected to the converter. Now your 3-pin fan can be controlled like any other PWM fan.

The converter detects the PWM signal and controls the 3-pin fan with the corresponding voltage. This makes controlling your fan simple. The converter is capable of outputting a voltage of 1A, which equals 12W. This means you can use a Y-splitter to control several fans simultaneously through the converter.

Technical Details:

  • Dimensions (LxWxH): 50 x 39 x 18mm
  • Plug: 1x 4Pin / 1x 3Pin
  • Power connection: 4Pin plug
  • Mounting: Double-sided tape for attaching at/in the case
  • 4Pin PWM to 4Pin PWM cable: black sleeved 50cm

Additional Information

NE US Item # 9SIA9F94X20727
NE CA Item # 9SIAA5K4X20757
Amazon ASIN NA
Manufacturer Phobya
Product Type Breakout PCB
Power Connector N/A
Length N/A
Color Black
UV Reactive No
Included 1x Phobya 4Pin PWM to 3Pin Transformer Single 1x 4Pin PWM to 4Pin PWM cable: black sleeved 50cm
Material No
