Details

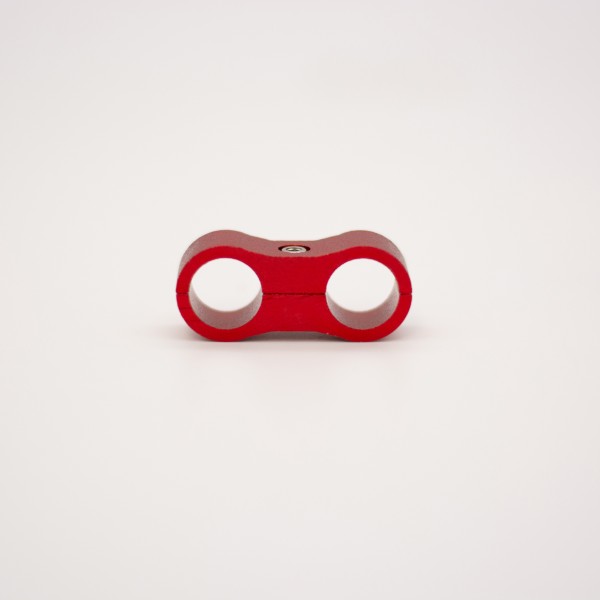

The ModMyMods ModClamp is a tubing management clamp for two tubes with an outer diameter of 13 mm (1/2"). It holds two runs side by side, keeps them parallel and gives long tube runs extra support, much like a cable comb does for wires. The clamp is made of aluminum, anodized red, and comes with a foam liner strip for the inside of the openings.
Properties
- Type
- Tubing management clamp, two openings
- Tube size
- 13 mm (1/2") outer diameter
- Size class
- AN 6
- Tube types
- Soft and hard tubing
- Material
- Aluminum, anodized
- Color
- Red
- Pieces in the pack
- 1
Tidy, parallel tube runs
The two openings sit side by side, so two tubes that run next to each other stay at the same spacing along the whole run. Use one clamp on a short run or several along a long one. On soft tubing the clamps also add support to runs that would otherwise sag or flop around.
Match the clamp to your tube OD
ModClamp comes in four sizes for the most common tube sizes of PC water cooling. Pick the clamp by the outer diameter of your tube: this one is for 13 mm (1/2") OD tube. A typical tube for this size is 3/8" ID x 1/2" OD (13/10 mm) soft tube. The clamp works on soft tubing as well as hard tubing.
Foam liner against scratches
Every clamp comes with a self-adhesive foam liner strip. Cut the strip into 4 pieces and stick them to the inside of both clamp halves. The liner protects the tube surface from scratches, which matters most on hard tube, and gives a little extra room for tubing whose outer diameter is slightly off the nominal size. Using the liner is optional.
Fitting the clamp
Remove the set screw in the center of the clamp and separate the two halves. Place the halves around the two tubes, bring them back together and refit the set screw to close the clamp.
Safe in any loop
The clamp sits on the outside of the tube, so the aluminum never touches the coolant. That makes it safe to use in loops with any metal mix of blocks and radiators.
Technical data
| Product | ModClamp tubing management clamp |
| Tube outer diameter | 13 mm (1/2") |
| Size class | AN 6 |
| Number of tube openings | 2 |
| Closure | Two halves joined by a center set screw |
| Liner | Self-adhesive foam strip, cut into 4 pieces |
| Material | Aluminum, anodized |
| Color | Red |
Notes
- ModClamp comes in 11 mm (7/16"), 13 mm (1/2"), 16 mm (5/8") and 19 mm (3/4") sizes, each in black, silver, red, blue, purple and gold. This listing is the red 13 mm version.
In the box
- 1x ModMyMods ModClamp - 13mm (1/2") AN 6 Tubing Management Clamp
- 1x Inner Foam Liner Strip
