Details

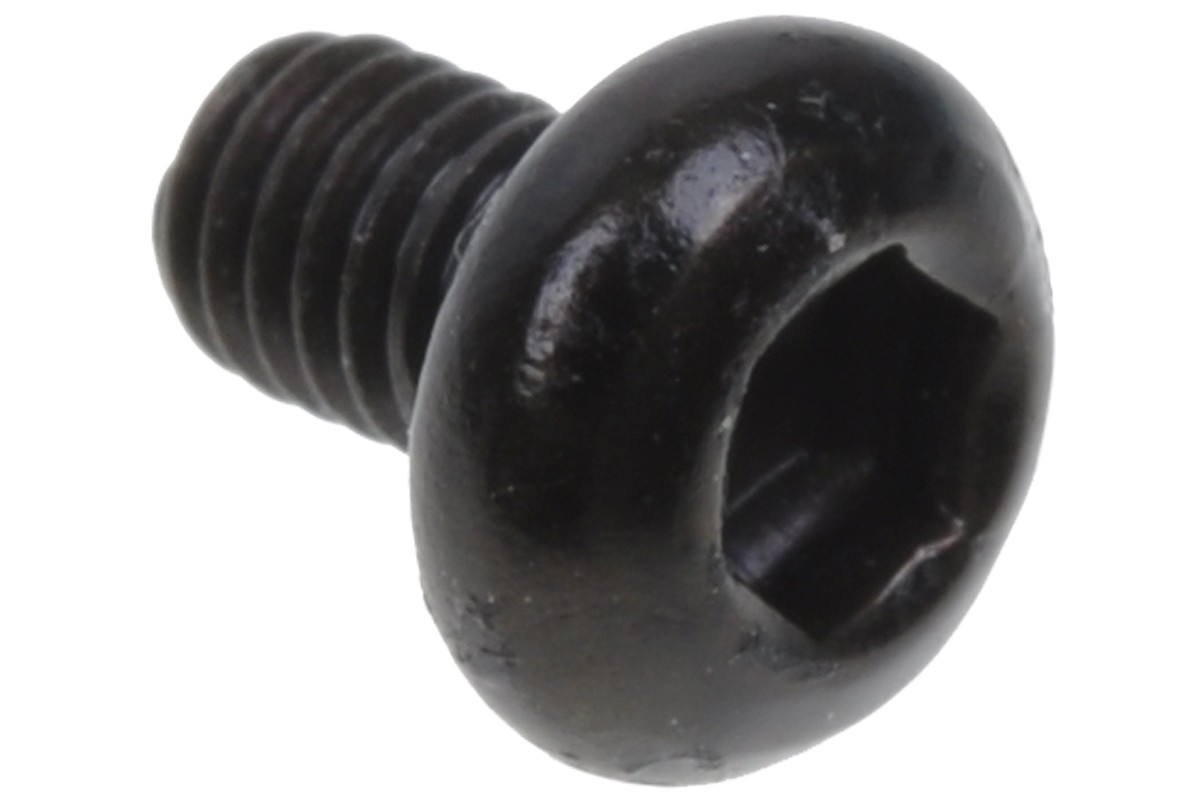

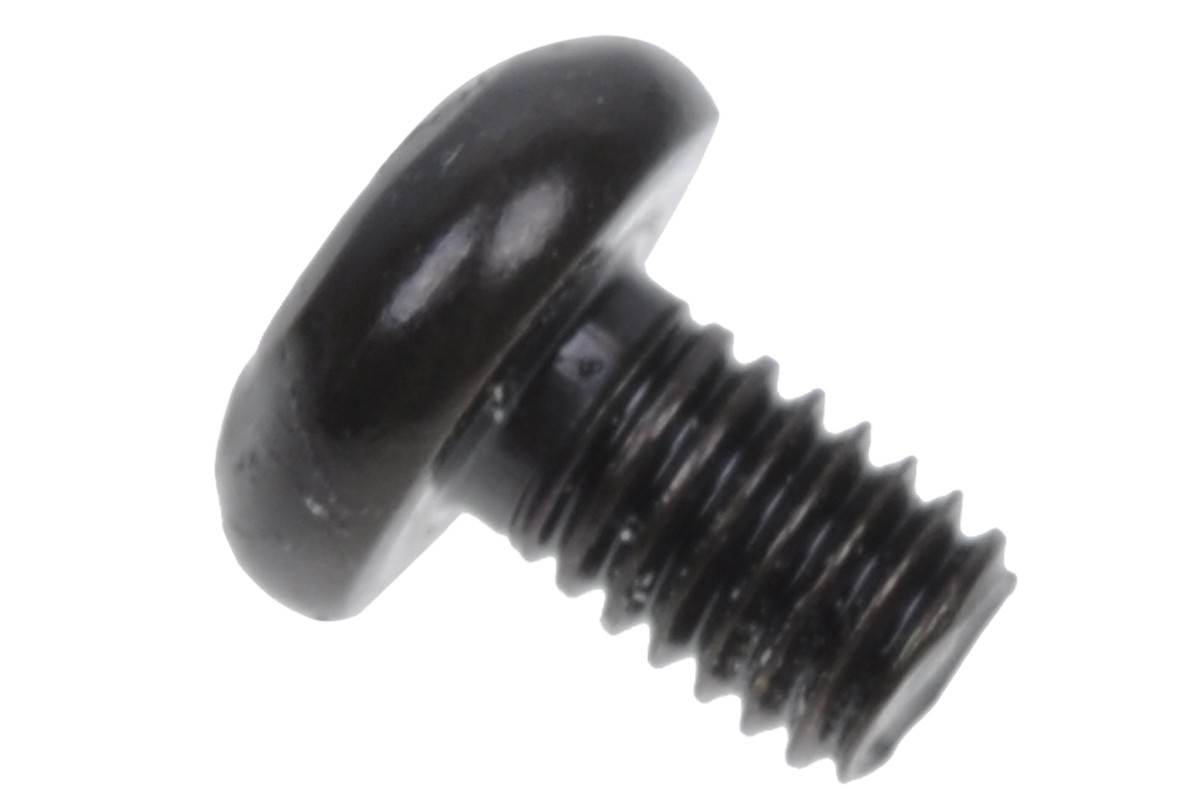

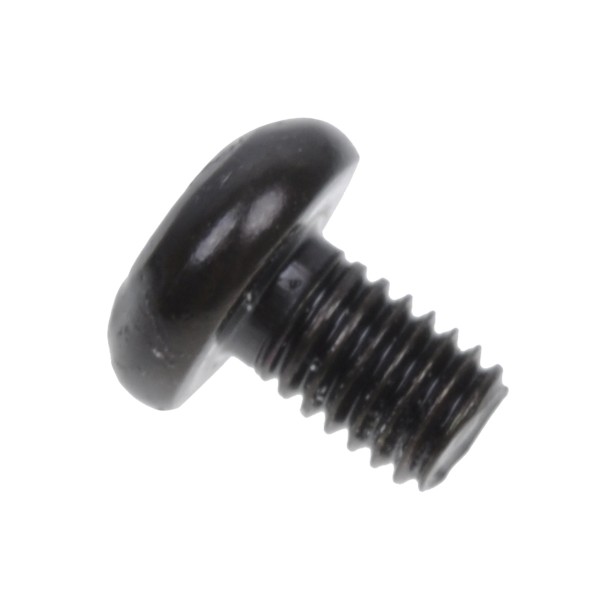

The ModMyMods M3 x 4 Hex Button Head Screw, Black is an M3 button head screw with a hex socket, made of black galvanized steel to DIN 7380. It has 4 mm of thread and is 6 mm long overall, with a low, domed head of 5 mm diameter.
Properties
- Type
- Button head screw, hex socket
- Thread
- M3 x 0.5
- Thread length
- 4 mm
- Total length
- 6 mm
- Material
- Galvanized steel, black
- Color
- Black
- Pieces in the pack
- 1
Small parts around the loop
Short screws like this one hold the parts around a loop: radiator grills and faceplates, pump mounts, waterblock brackets, acrylic windows and your own fabricated parts.
Hex socket drive
The hex socket takes a hex key, which grips the screw firmly, so the tool does not slip out and the head does not get chewed up when you tighten it. That makes clean work easy, even in tight spots. The low, rounded button head sits neatly on grills and panels.
Made to DIN
The screw is made to DIN 7380, the standard for hex socket button head screws, so it fits any part with a standard M3 thread.
Check thread and depth first
Radiators and other parts use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a size. On a radiator, a screw that is too long can reach the core and puncture a water channel, so always make sure the screw stops short of the fins.
Technical data
| Thread | M3 x 0.5 |
| Thread length | 4 mm |
| Total length | 6 mm |
| Head diameter | 5 mm |
| Drive | Hex socket |
| Quality grade | DIN 7380 |
| Material | Galvanized steel, black |
| Color | Black |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
- ModMyMods black hex button head screws come in M3 x 4 and 6 mm and in M4 x 8, 12, 25 and 40 mm.
In the box
- 1x ModMyMods M3 x 4 Hex Button Head Screw, Black
