Details

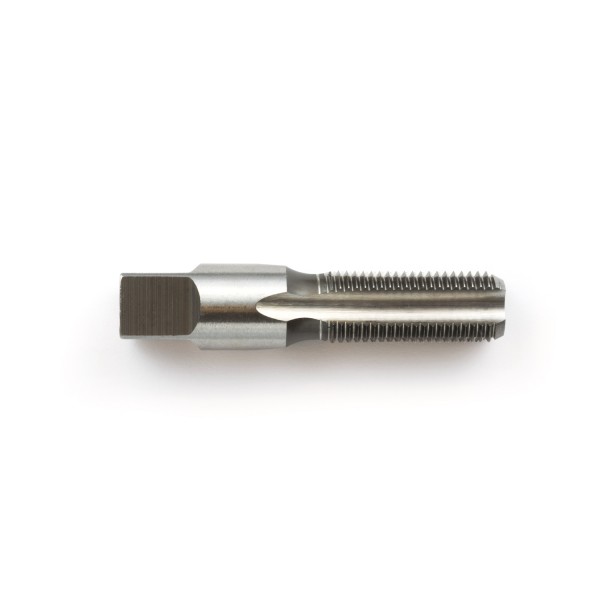

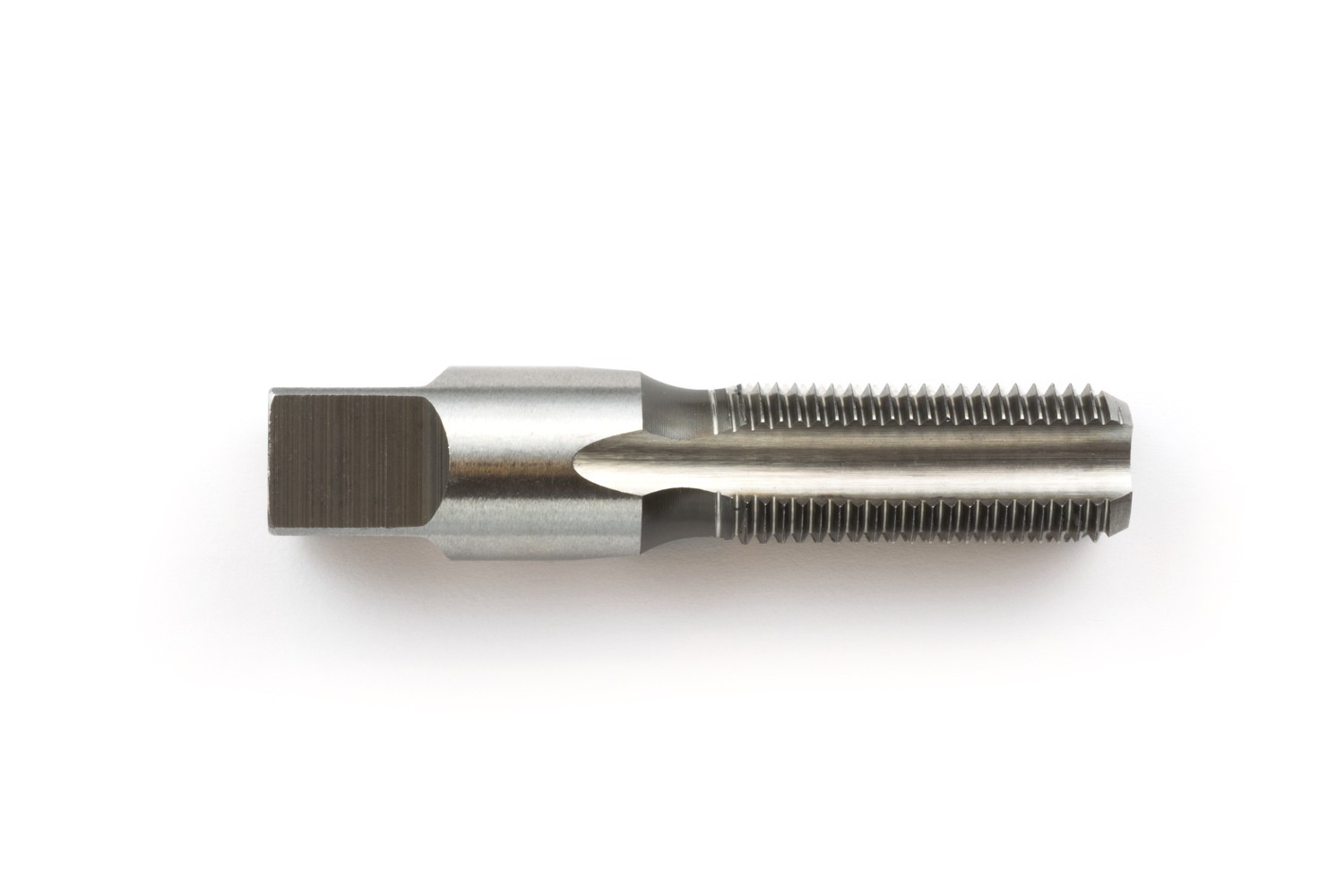

Want to make your own custom G1/4" threaded port, or does a G1/4" port need to be re-threaded? This industrial high-speed steel thread tap cuts the 1/4"-19 BSPP (British Standard Pipe Parallel) thread, which is the G1/4" thread used on PC water cooling components. It has a right-handed thread direction and an overall length of 2-7/16".
Properties
- Type
- Thread tap
- Thread
- 1/4"-19 BSPP (G1/4")
- Direction
- Right hand
- Material
- High-speed steel
- Recommended drill
- 11.8 mm
- Pieces in the pack
- 1
Cut your own G1/4" ports
With this tap you can add a G1/4" port to a reservoir, a block, a distribution plate or any custom water cooling part, so standard fittings screw straight in. It also cleans up and re-cuts a damaged G1/4" thread.
1/4"-19 BSPP is G1/4"
G1/4" and 1/4" BSPP describe the same parallel pipe thread with 19 threads per inch. That is the thread on almost every fitting, radiator, block and reservoir in PC water cooling.
Drill first, then tap
Drill the hole with an 11.8 mm drill, the recommended drill size for this tap. Then hold the tap in a tap wrench by its square end, start it straight into the hole and turn it clockwise.
High-speed steel
The tap is made of industrial high-speed steel, so it keeps its cutting edges through many threads.
Technical data
| Part number | MOD-0005 |
| Type | Thread tap |
| Thread | 1/4"-19 BSPP (G1/4") |
| Thread direction | Right hand |
| Overall length | 2-7/16" |
| Recommended drill size | 11.8 mm |
| Material | High-speed steel |
Notes
- Turn the tap back a little every turn or two to break the chips, and use cutting fluid in metal.
- Keep the tap square to the surface; a slanted thread will not seal on the O-ring of a fitting.
In the box
- 1x ModMyMods High-Speed Steel British Standard Thread Tap - 1/4"-19 BSPP
