ModMyMods Dual Ended Universal Molex Removal Tool (PR-MOLEX)

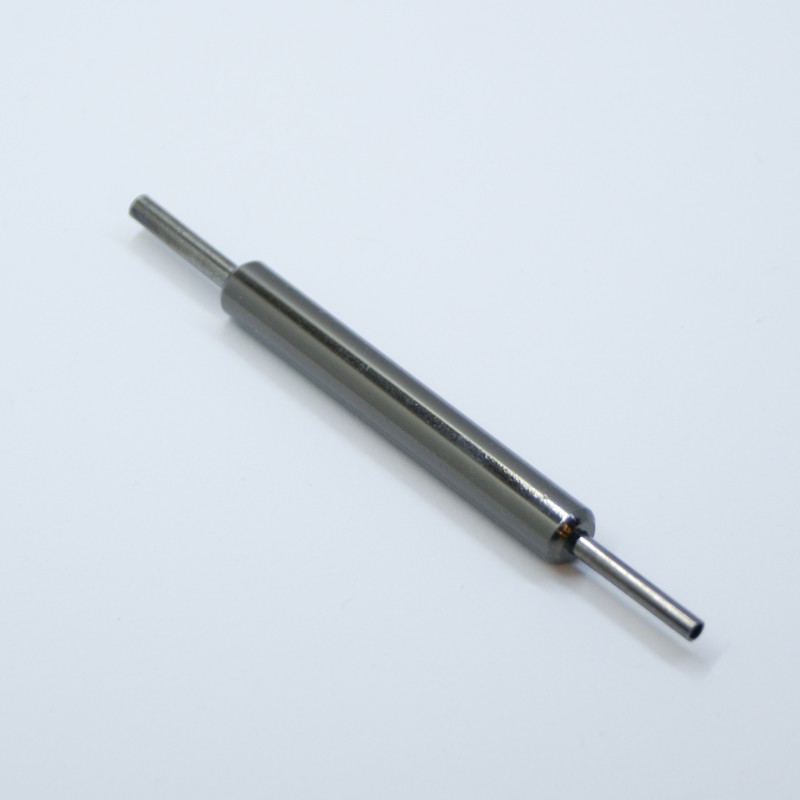

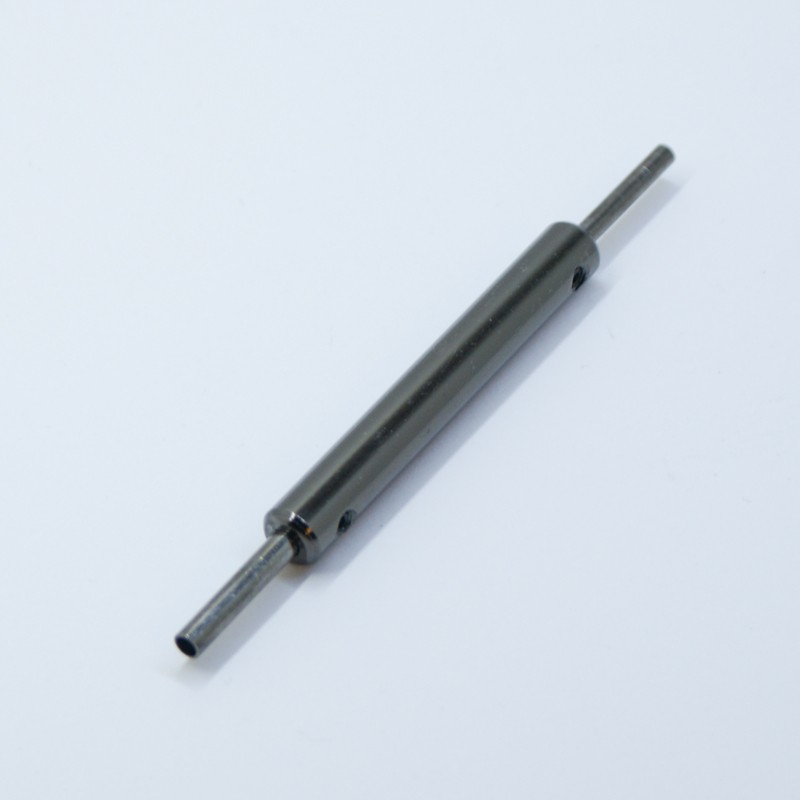

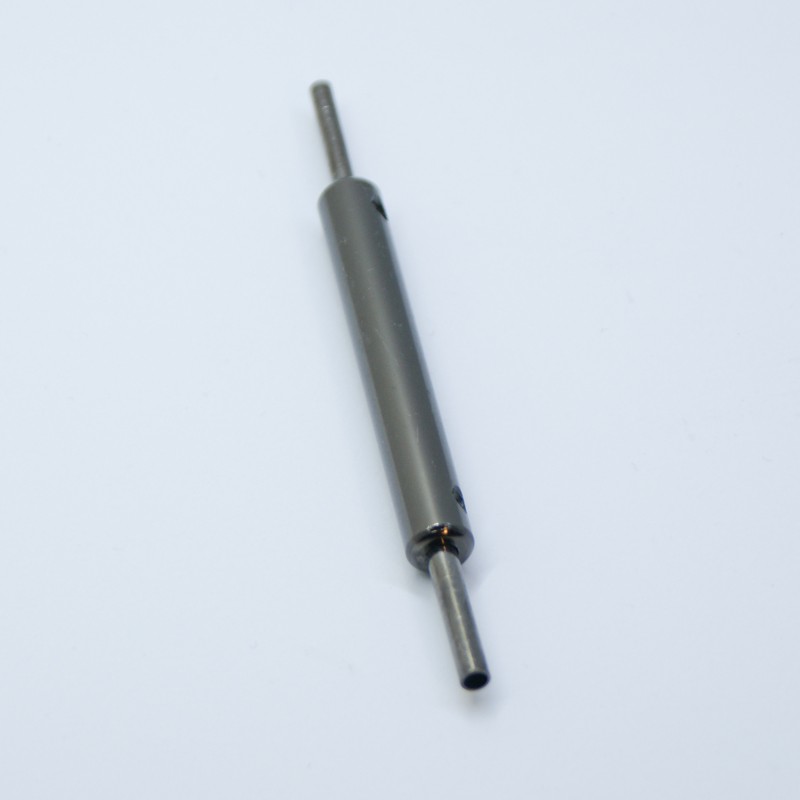

This dual ended universal Molex removal tool takes the pins out of 4-pin Molex power connectors without breaking the pin tabs or bending the pins. One end fits over the male pins, the other end fits over the female pins, so one tool handles both halves of the connector.

Properties

Type

Molex pin removal tool, dual ended

For

Male and female pins of 4-pin Molex connectors

Material

Metal

Color

Silver

Pieces in the pack

1

Made for 4-pin Molex connectors

The 4-pin Molex power connector is one of the hardest connectors to de-pin by hand. The tubular ends of this tool slide over the round pin and press its retaining tabs in, so the pin can be pushed out of the housing intact.

How to use it

Pick the end that matches the pin: one end for male pins, the other for female pins. Slide that end over the head of the pin from the front of the connector, push it in all the way, and pull the wire gently out of the back of the connector. The pin comes out in one piece and can be used again.

Part of the sleeving tool kit

The same tool is also included in the ModMyMods Pin Extractor PC Sleeving Tool Kit together with the ATX / Mini-Fit Jr, Fan / JST / SL and ATX3.0 / 12VHPWR pin extractors.

Technical data

Notes

• If a pin does not come out, push the tool in a little farther and try again rather than pulling hard on the wire.

In the box

• 1x Dual Ended Universal Molex Removal Tool
