Details

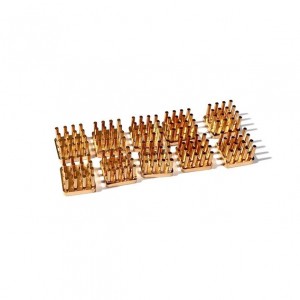

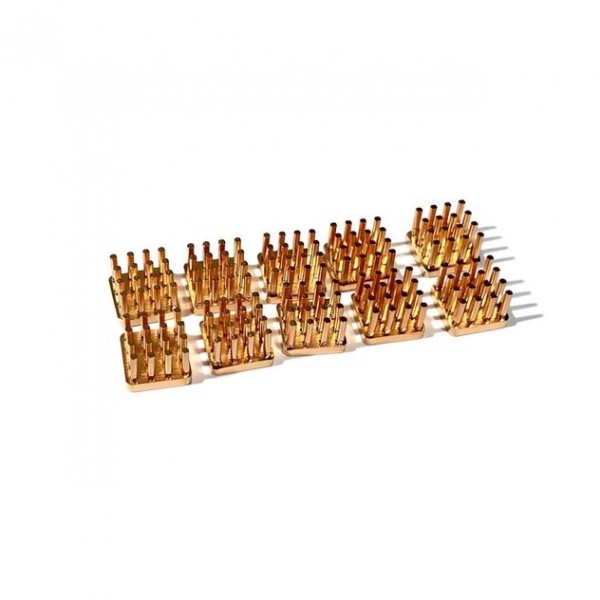

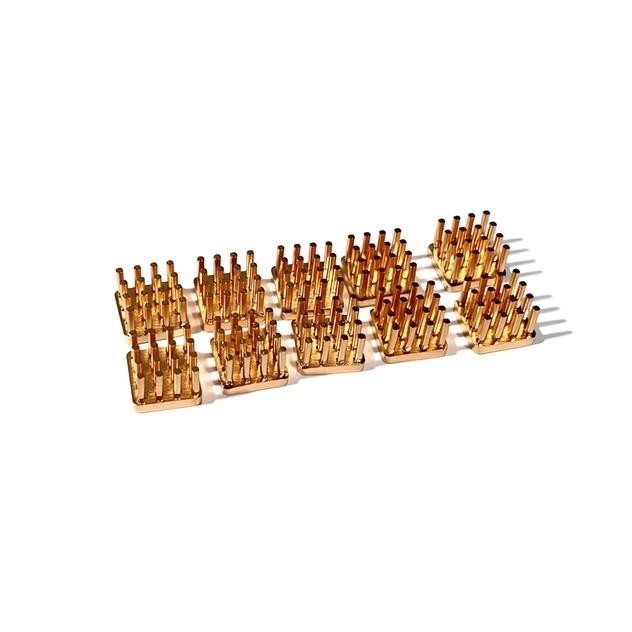

This 10 pack holds ten ModMyMods Cold Forged Copper Heatsinks measuring 10 x 10 mm with a height of 7 mm, plus a 100 mm x 60 mm thermal adhesive pad to fix them. Each small pin heatsink has a flat copper base carrying an array of square pins that give off heat to the surrounding air. The pack is made for boards with many small chips and for tight spaces in custom builds.
Properties
- Type
- Pin heatsinks, cold forged
- Size
- 10 x 10 x 7 mm each
- Material
- Copper
- Color
- Copper
- Pieces in the pack
- 10 heatsinks + 1 thermal adhesive pad
Copper pins for small chips
Copper conducts heat very well, so the heat of the chip spreads quickly from the flat base into the pins. Air can pass between the pins from any side, which suits the mixed airflow inside a case or around a small board.
Cold forged
Each heatsink is cold forged: the base and pins are formed from one piece of copper under pressure, so there is no joint between pin and base.
Pick the size
ModMyMods carries this heatsink in several footprints and in 4 mm and 7 mm heights. Choose a footprint that covers the chip without overhanging onto nearby parts, and check that the height fits under covers, cards or fans close by.
Mounting with the included pad
The pack includes a 100 mm x 60 mm thermal adhesive pad. Cut a piece to the size of each heatsink base, clean the chip and the base, stick the pad on and press the heatsink down firmly.
Technical data
| Product | Cold forged copper pin heatsinks, 10 pack |
| Dimensions (L x W x H) | 10 x 10 x 7 mm each |
| Material | Copper |
| Mounting | Thermal adhesive pad, 100 mm x 60 mm (included) |
| Pieces in the pack | 10 heatsinks + 1 thermal adhesive pad |
Notes
- The same heatsink is also sold as a single piece without the adhesive pad.

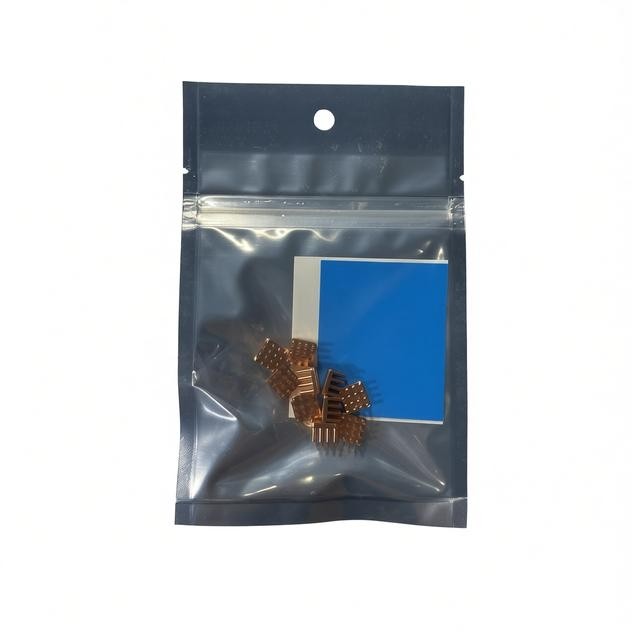

In the box
- 10x ModMyMods Cold Forged Copper Heatsink - 10mm x 10mm x 7mm
- 1x ModMyMods Thermal Adhesive Pad - 100mm x 60mm
