Details

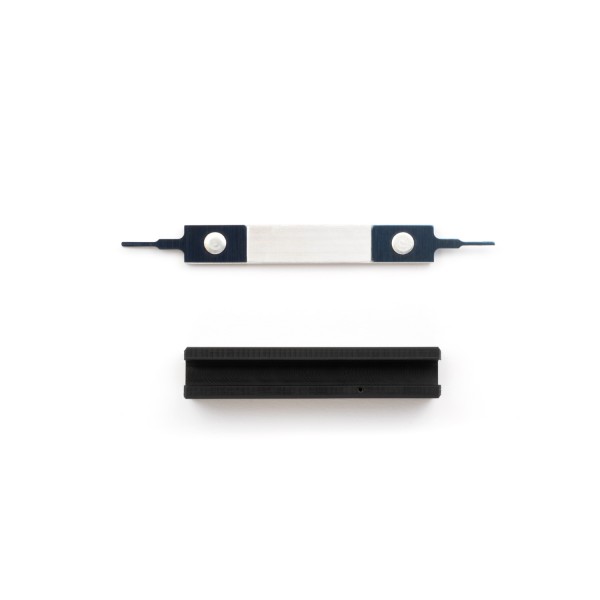

This universal dual ended pin removal tool has a dual pronged ATX removal head on one end and a single pronged fan pin removal head on the other. ModMyMods has used this same locally produced modding tool for many years. It is made from aluminum, steel and sturdy ABS plastic, and a plastic safety handle slides over whichever end you are not using.
Properties
- Type
- Dual ended pin removal tool
- Ends
- Dual pronged ATX head | single pronged fan pin head
- Material
- Aluminum, steel and ABS plastic
- Handle
- Slide-on plastic safety handle
- Pieces in the pack
- 1 tool, 1 handle
Two heads, one tool
The dual pronged ATX head releases both male and female ATX pins from their connectors. Slide the plastic handle to the other side of the tool and the single pronged fan pin head is ready for male and female fan connector pins. The pins and wires come out undamaged and can be used again.
ATX pin removal
Insert the dual pronged end of the tool around the outside of the male or female ATX pin and push gently until you hear a soft click. The pin and wire then slip out of the connector port. If the small metal tabs of the pin bend out of shape while you remove it, bend them back gently with the dual pronged end of the tool or carefully with the tip of a hobby knife blade.
Fan pin removal
Insert the single pronged end of the tool into the pin slot of the male or female fan connector and push gently against the metal tabs that hold the pin in place. The pin and connector then come apart for further use. If the metal tabs of the fan pin are bent after de-pinning, bend them back with the dual pronged ATX end of the tool or carefully with the tip of a hobby knife.
Safety handle
The plastic handle covers the end you are not using, so you hold the tool by the handle and not by a sharp tip. Swap it to the other end when you change from ATX pins to fan pins.
Technical data
| Part number | MOD-0001 |
| Type | Dual ended pin removal tool |
| ATX end | Dual pronged, for male and female ATX pins |
| Fan end | Single pronged, for male and female fan pins |
| Material | Aluminum, steel, ABS plastic |
| Handle | Plastic, slides onto either end |
Notes
- Warning: this tool is not a toy. The tips are sharp and can stab into your skin. Never throw the tool or point it at people or animals.
In the box
- 1x Dual Sided ATX/Fan Pin Removal Tool
- 1x Plastic Safety Handle
