Details
Take the strain off your graphics card with the ModMyMods Adjustable Aluminum GPU Support Strut (VH1). Many newer water blocks and aftermarket coolers are heavy and put extra stress on the card and its mounting. This black aluminum strut stands under the card and holds it level, and it adjusts from 68mm to 113mm.
Properties
- Type
- Adjustable GPU support strut
- Length
- 68mm to 113mm
- Material
- Aluminum
- Pads
- Soft pads
- Color
- Black
- Pieces in the pack
- 1 strut, 3 pads

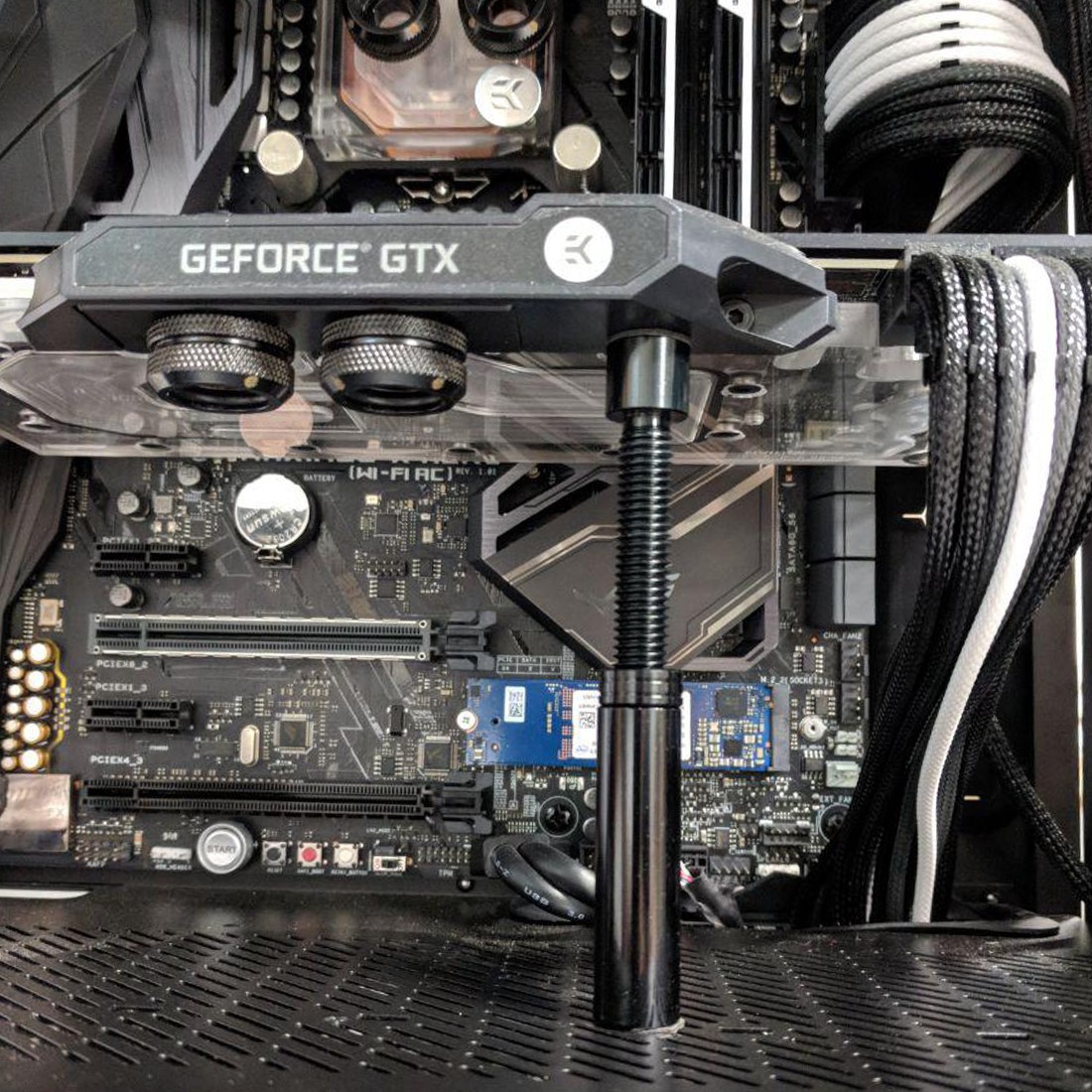

Stops GPU sag
A heavy card held only at the slot bracket and the PCIe slot slowly sags at the far end. That stresses the PCB, the slot and the fittings of a water cooled card. The strut supports the card from below and keeps it straight.

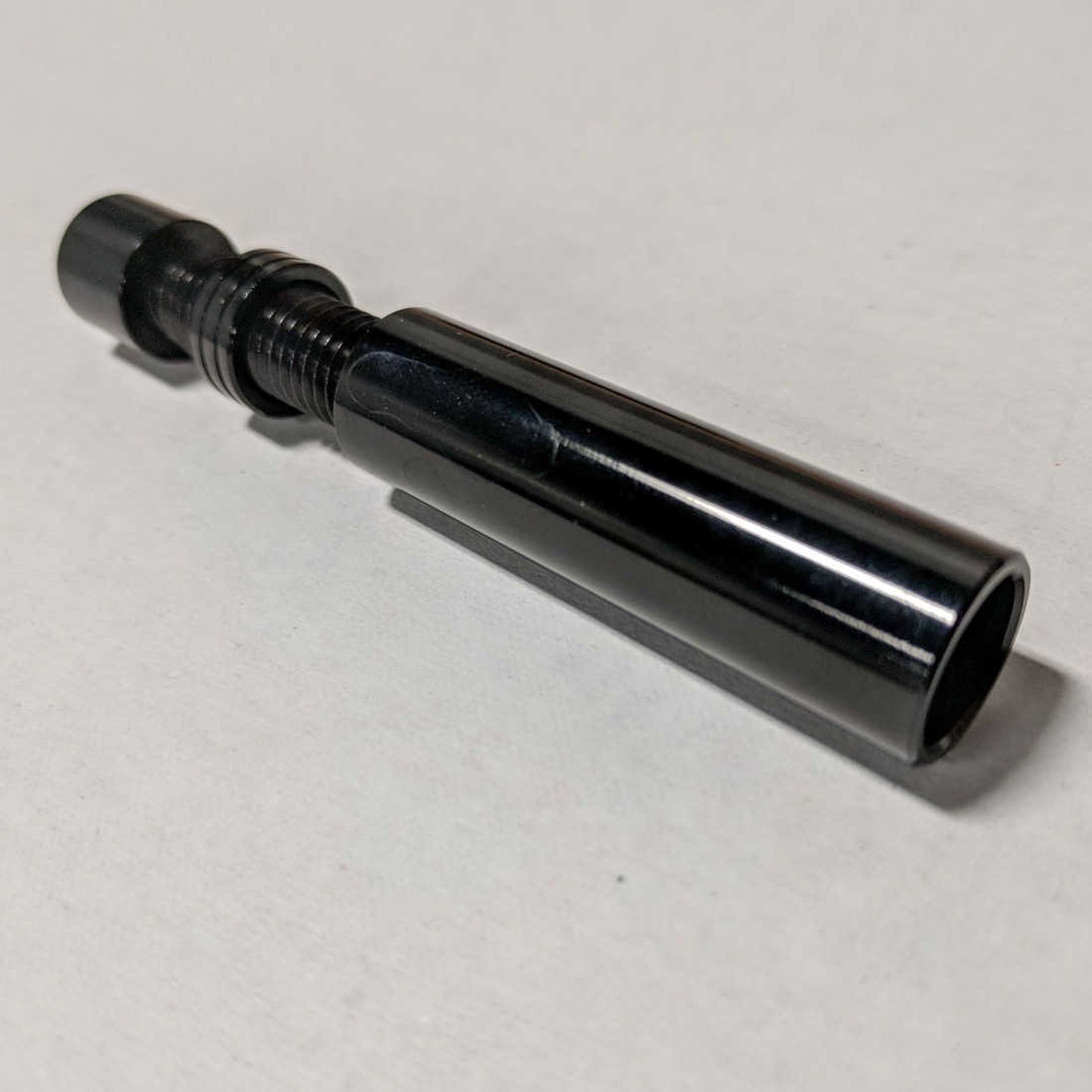

Screw adjustable
The upper part is threaded into the tube; turn it out to make the strut longer and in to make it shorter. The length runs from 68mm to 113mm, so it suits builds big and small, from a short gap above the PSU shroud to a tall gap above the case floor.
Soft pads
The round soft pads sit on the ends of the strut, so the aluminum does not scratch the case or the card and the strut does not slide.
Fits nearly any case and card
The strut stands on its own anywhere under the card, so there is nothing to screw to the case or the card. It works in nearly any case and with any GPU.
Technical data
| Model | VH1 |
| Type | Adjustable GPU support strut |

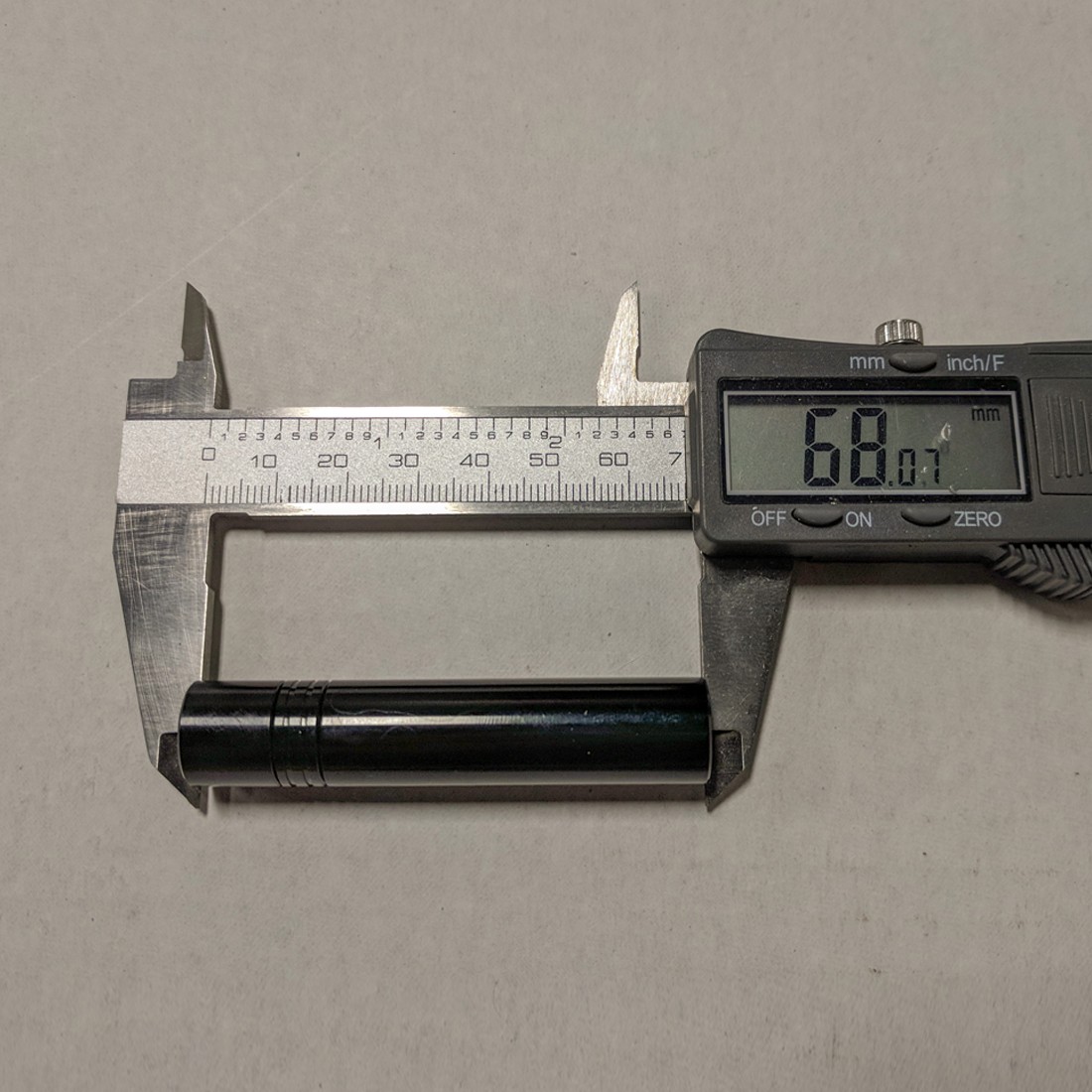

| Minimum length | 68mm |

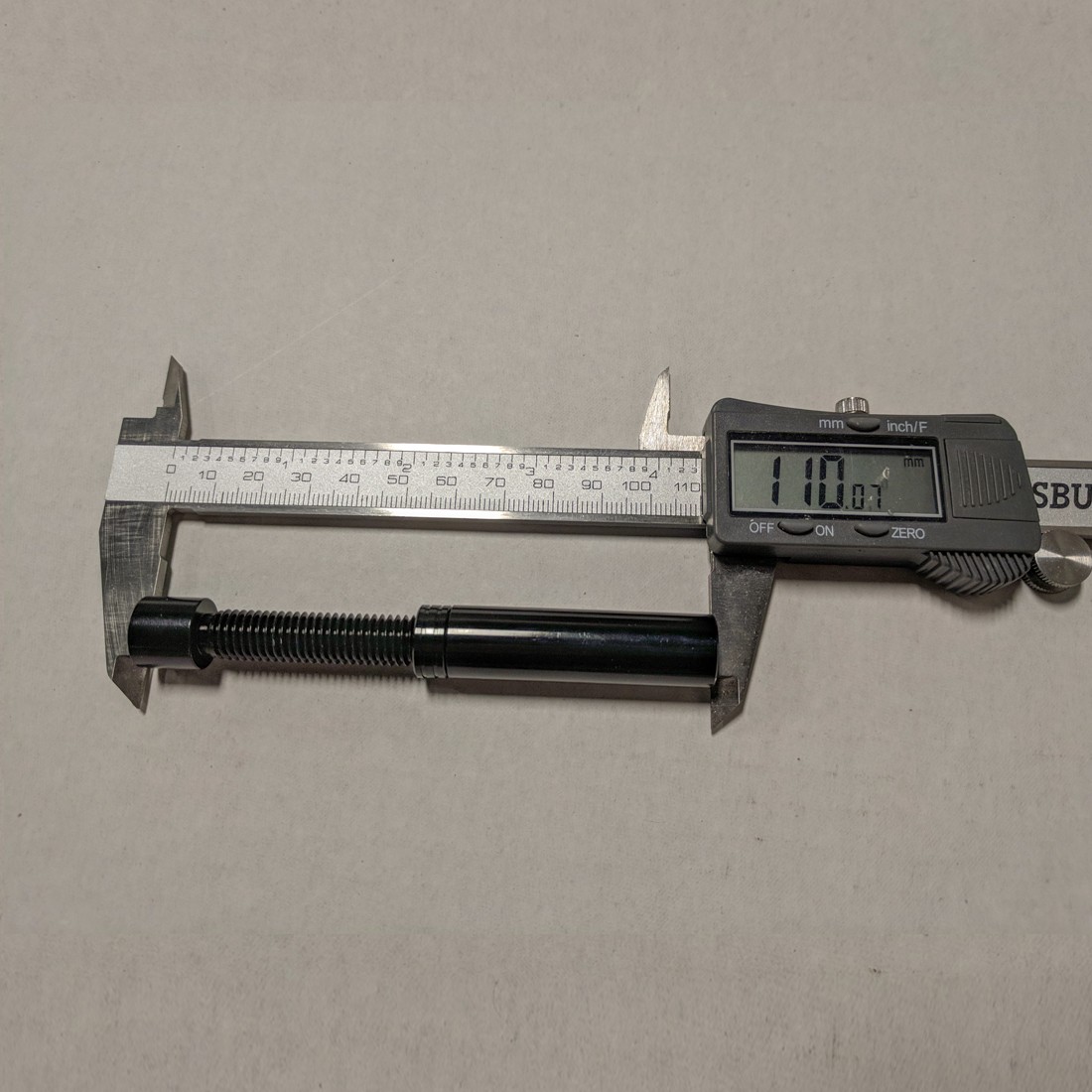

| Maximum length | 113mm |
| Adjustment | Threaded |
| Material | Aluminum |
| Color | Black |
Notes
- Set the length so the strut lifts the card just to level; too much force can bend the card the other way.

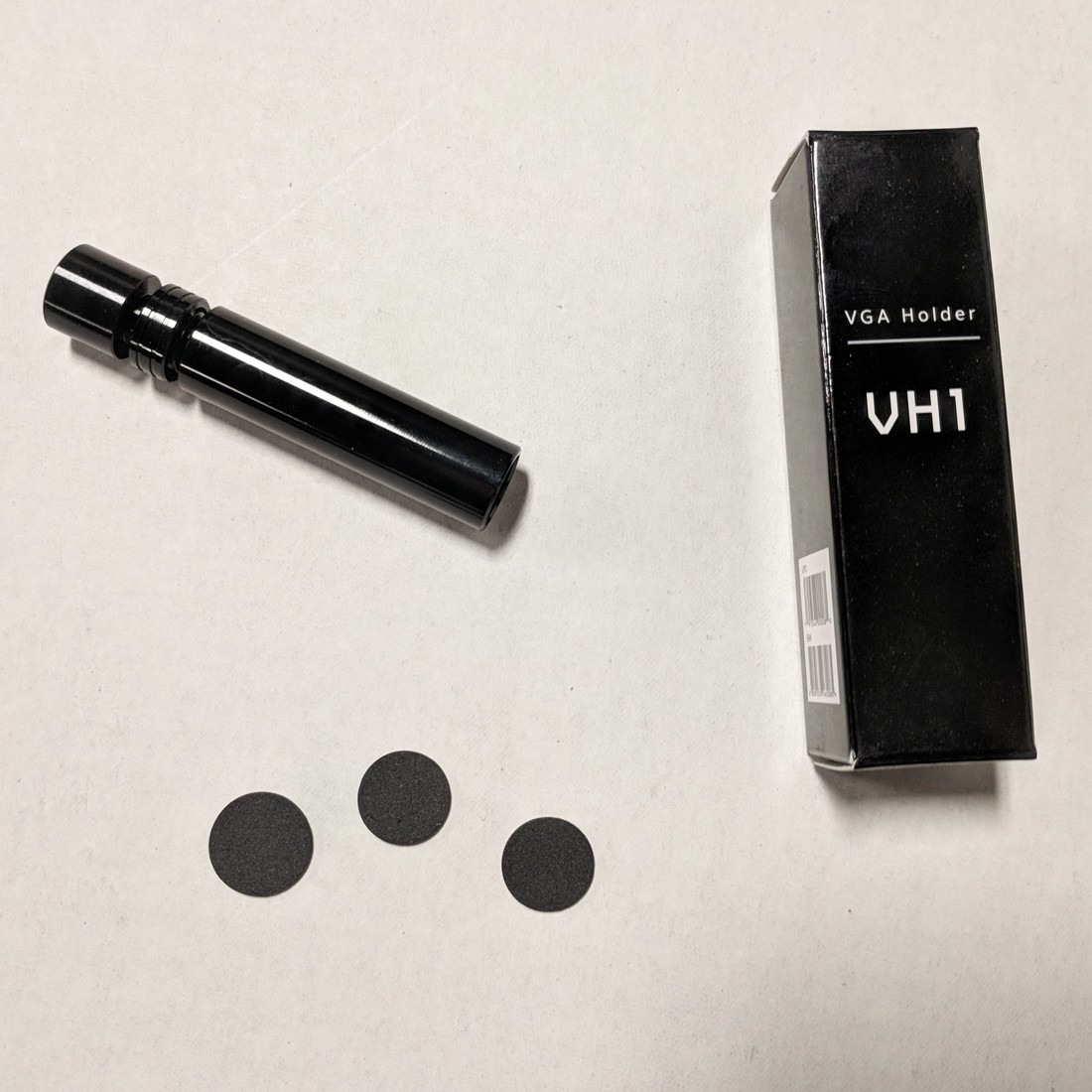

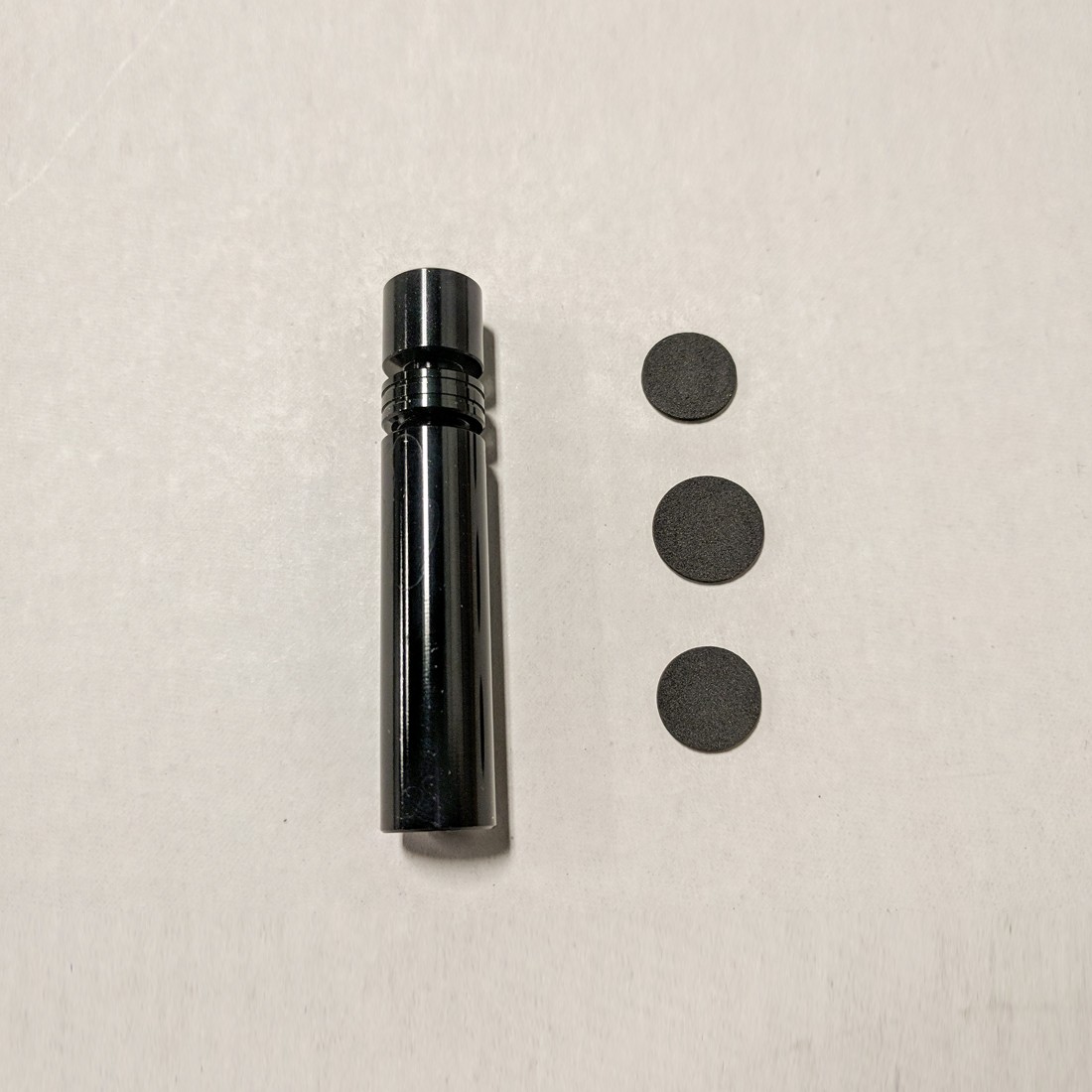

In the box
- 1x ModMyMods Adjustable Aluminum GPU/VGA Support Strut - Black
- 3x Soft Pads
