Details

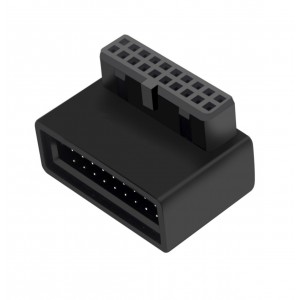

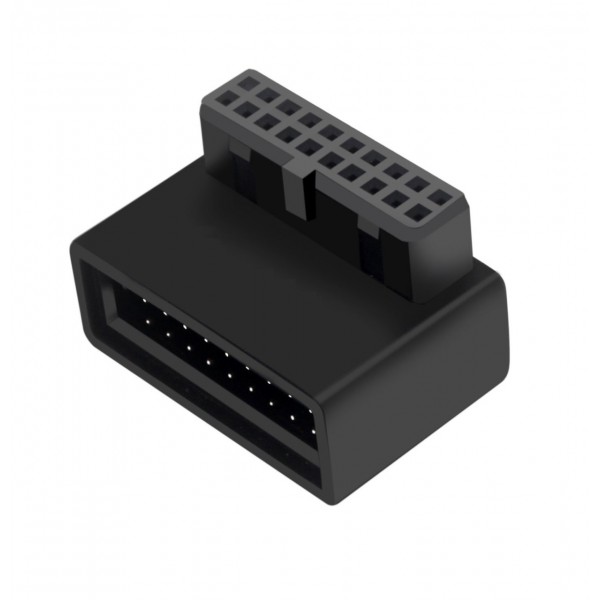

This small 90° adapter turns the USB 3.0 19-pin header of the motherboard by a right angle. The socket on top plugs onto the header, and the front panel cable plugs into the side of the adapter instead of straight down onto the board. The housing is all black. This listing is the Type B version.
Properties
- Type
- 90° internal USB header adapter
- Fits
- USB 3.0 19-pin (20-pin) motherboard header
- Version
- Type B
- Housing
- Plastic, black
- Pieces in the pack
- 1
Change the angle of the USB header
The thick USB 3.0 front panel cable needs room above the header. With the adapter, the cable plugs in from the side and can run flat along the board, which helps when a graphics card, a cooler or the case sits close to the header, and gives a cleaner cable path.
Type A or Type B
The two versions differ in the position of the key on the socket, so on the same header the cable side points in opposite directions. The pictures show both versions next to a motherboard header: compare the key of your header with them before you order.
For USB 3.0, 3.1 and 3.2 headers
The adapter fits the common 19-pin (20-pin) internal USB header, which boards may label USB 3.0, USB 3.1 Gen 1 or USB 3.2 Gen 1.
Technical data
| Part number | CAB284 |
| Type | 90° USB 3.0 19-pin header adapter |
| Version | Type B |
| Header | USB 3.0 / 3.1 / 3.2 19-pin (20-pin) |
| Housing | Plastic, black |
Notes
- ModMyMods sells this adapter as Type A (MOD-0347) and Type B (MOD-0348). This listing is Type B; the Type A version is MOD-0347.
In the box
- 1x ModMyMods 90 Degree Angle USB 3.0 19 Pin Internal Header Connector with Housing - TYPE B
