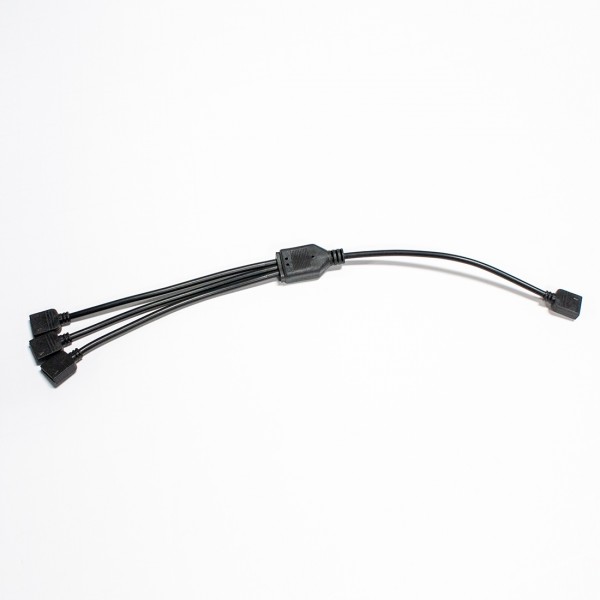

ModMyMods 3-Pin Female Addressable RGB LED Strip 3-Way Splitter Cable - Black (MOD-0283)

This 3-way splitter cable runs three addressable RGB lighting parts from one 3-pin addressable RGB (ARGB) header. The single 3-pin female connector plugs onto the header of the motherboard or controller, and the three 3-pin female connectors on the other side take the LED strips, fans or other lighting parts. All of them then show the same colors and effects.

Properties

Type

3-pin addressable RGB (ARGB) splitter cable

Input

1x 3-pin female

Outputs

3x 3-pin female

Cable color

Black

Pieces in the pack

1

More lighting on one header

Motherboards and controllers have only a few addressable RGB headers. The splitter shares one header between three parts, so you do not have to choose between a strip and a fan when the headers run out.

Same effect on every output

All three outputs are wired in parallel to the input, so every part on the splitter follows the same color and effect as set in the software of the motherboard or controller.

Female on all ends

All connectors of the splitter are female. To join an output to a lighting part that also ends in a female plug, use the ModMyMods Male to Male Addressable RGB Connector (MOD-0285); it pushes into a female end and turns it into a male plug.

Compatibility

The splitter fits any 3-pin 5V addressable (digital) RGB connection: ARGB headers of motherboards, ARGB controllers, LED strips, fans and other ARGB lighting.

Part of a matched set

ModMyMods makes 3-pin addressable RGB (ARGB) extension cables in 30 cm and 50 cm, 2-way, 3-way and 4-way splitter cables and a male to male connector, all in black with the same connectors, so they can be combined in one build.

Technical data

Notes

• All parts on the splitter share the current of the one header; check the rating of the header or controller channel before you connect many LEDs.
• The arrow on each connector marks its orientation; line it up with the arrow or pin 1 mark of the header or the other plug.
• 3-pin addressable RGB (ARGB) and 4-pin RGB connections are different systems; plug ARGB parts only into 5V 3-pin ARGB headers.

In the box

• 1x ModMyMods 3-Pin Female Addressable RGB LED Strip 3-Way Splitter Cable - Black
