Details

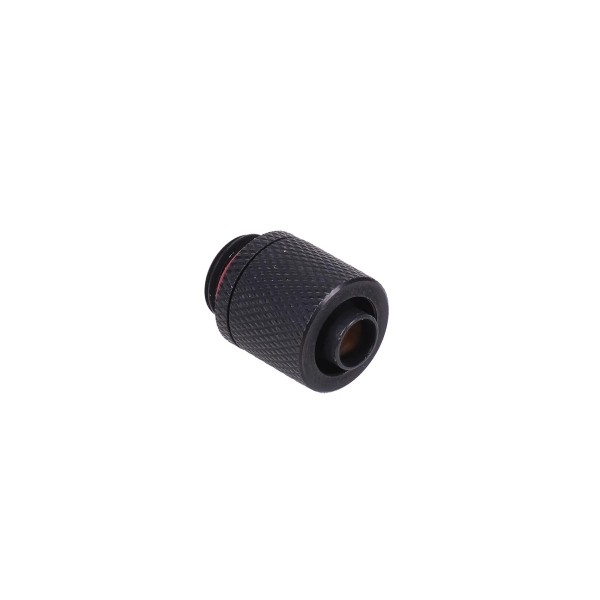

The ModMyMods 11/8mm G1/4" Compression Fitting connects soft tubing with an 11 mm outer diameter and an 8 mm inner diameter to any standard G1/4" port. It is made for small water cooling builds such as embedded devices, single-board computers and other system on a chip (SOC) projects, chipset or graphics card cooling, and other places with little room. This version has a matte black finish.
Properties
- Type
- Compression fitting
- Tube size
- 11/8mm (11 mm OD, 8 mm ID)
- Thread
- G1/4"
- Material
- Brass, matte black
- Size
- 24 x 17.1 mm
- Pieces in the pack
- 1
Easy, leak-free connection
Push the tube onto the barb of the fitting and screw down the knurled union nut. The nut clamps the tube and seals it right away, and it can still be loosened again with one hand. Compression fittings are easy to work with and give a secure connection.
Made for small loops
The 11/8mm size matches the ModMyMods 8mm ID x 11mm OD PVC Tubing (58000). The fittings are used in the ModMyMods Raspberry Pi Mini Water Cooling Kit: thread the G1/4" end into the port by hand, slide the union nut over the tube, seat the tube on the fitting and tighten the nut.
Two finishes
ModMyMods sells this 11/8mm G1/4" compression fitting in black nickel (62259) and in matte black (62434). This listing is the matte black version.
Technical data
| Type | Compression fitting |
| Tube size | 11/8mm (11 mm OD, 8 mm ID) |
| Thread | G1/4" (cylindrical) |
| Material | Brass |
| Finish | Matte black |
| Dimensions | 24 x 17.1 mm |
| Thread length | 5 mm |
Notes
- Tighten the fitting by hand only, to avoid stripping threads or cracking the port it is screwed into.
In the box
- 1x ModMyMods 11/8mm G1/4" Compression Fitting - Black
