Details

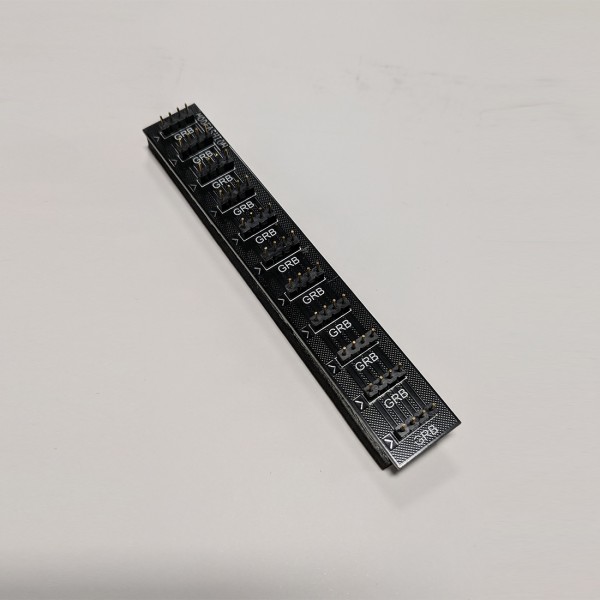

The ModMyMods 10-Way RGB PCB Splitter Hub connects up to ten 4-pin RGB devices to one RGB header. It is a slim black circuit board, 113 mm long, with ten 4-pin male RGB headers in a row and an adhesive pad on the back, so it mounts anywhere in the case and keeps the RGB cables of fans, strips and other lighting off the motherboard.
Properties
- Type
- RGB splitter hub, PCB
- Headers
- 10x 4-pin RGB, male
- Length
- 113 mm
- Mounting
- Adhesive pad on the back
- Color
- Black
- Pieces in the pack
- 1
Ten RGB connections on one header
Motherboards have only a few RGB headers. Connect one header of the hub to the RGB header of the motherboard or controller with a female to female 4-pin RGB cable, such as the ModMyMods 4-pin RGB extension cables, and plug up to nine more RGB devices into the other headers. All of them follow the same colors and effects.
Cut it to size
The board can be cut down to the number of headers your build needs. The parts you cut off still work as smaller RGB hubs of their own.
Clean mounting
The adhesive pad on the back holds the hub on the case wall, behind the motherboard tray or on any flat surface. Like a fan power distribution block, it gathers the RGB cables in one place instead of a tangle of splitter cables.
Clear marking
Every header is marked GRB with an arrow on the board, so each plug goes on the right way round.
Technical data
| Part number | MOD-0273 |
| Type | 10-way RGB splitter hub |
| Headers | 10x 4-pin RGB, male |
| Board length | 113 mm |
| Board width | About 14 mm |
| Marking | GRB with arrow at every header |
| Mounting | Adhesive pad |
| Color | Black |
Notes
- RGB cables are not included.
- All devices on the hub share the current of the one header that feeds it; check the rating of the header or controller channel before you connect many LEDs.
- 4-pin RGB and 3-pin addressable RGB (ARGB) connections are different systems; plug only 4-pin RGB parts into the hub.
In the box
- 1x ModMyMods 10-Way RGB PCB Splitter Hub
