Details

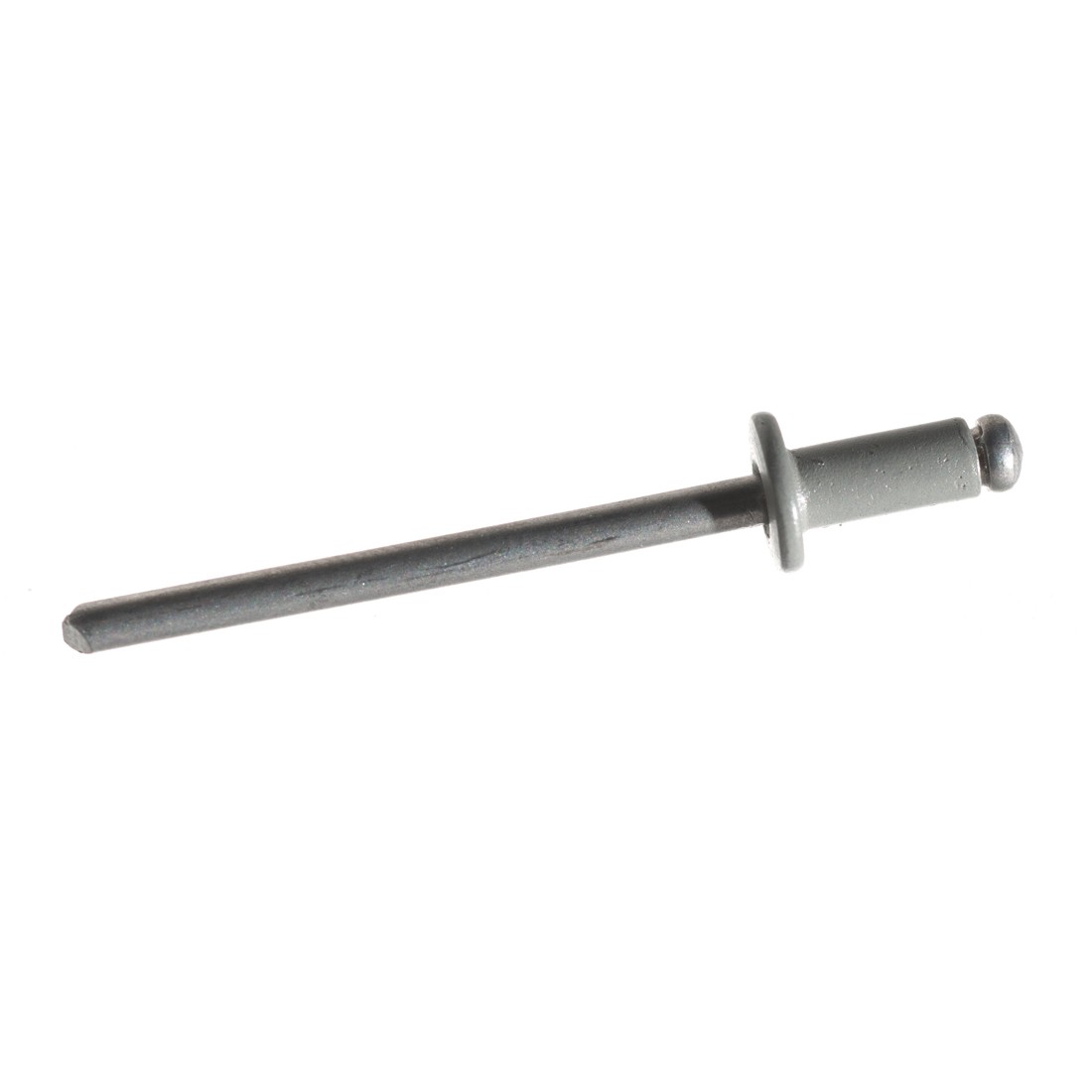

The ModMyMods 1/8" (3mm) Domed Aluminum Rivets - Gray - 10 Pack is a pack of ten 1/8" (3 mm) blind rivets with a domed head, made of aluminum with a gray head. They are what you need to put a computer case back together after a custom paint or powder coat job, and they have a myriad of other uses.
Properties
- Type
- Blind rivet, domed head
- Diameter
- 1/8" (3 mm)
- Material thickness
- 0.063" to 0.125"
- Material
- Aluminum
- Color
- Gray
- Pieces in the pack
- 10
Case modding and more
Many computer cases are riveted together. When you strip a case for paint or powder coat, you drill out the old rivets and set new ones when the parts come back. ModMyMods rivets come in a multitude of colors to match your project.
Aluminum body
The aluminum rivet body is corrosion resistant and nonmagnetic. With a shear strength of 120 lbs. and a tensile strength of 150 lbs., the rivets are strong enough for demanding jobs outside the PC as well.
Setting the rivets
These are blind rivets: you set them from one side with a hand rivet tool for 1/8" rivets. Drill a hole that matches the rivet diameter, push the rivet through the parts, and squeeze the tool until the mandrel snaps off. The parts you join must add up to 0.063" to 0.125" in thickness.
Technical data
| Rivet diameter | 1/8" (3 mm) |
| Head | Domed |
| Head diameter | 0.25" |
| Head height | 0.04" |
| Rivet length | 0.275" |
| Material thickness range | 0.063" to 0.125" |
| Shear strength | 120 lbs. |
| Tensile strength | 150 lbs. |
| Material | Aluminum |
| Color | Gray |
Notes
- ModMyMods 1/8" domed aluminum rivets come in black, blue, gray, red, white, yellow and plain aluminum; the countersunk rivets come in plain aluminum. Each pack holds ten rivets.
In the box

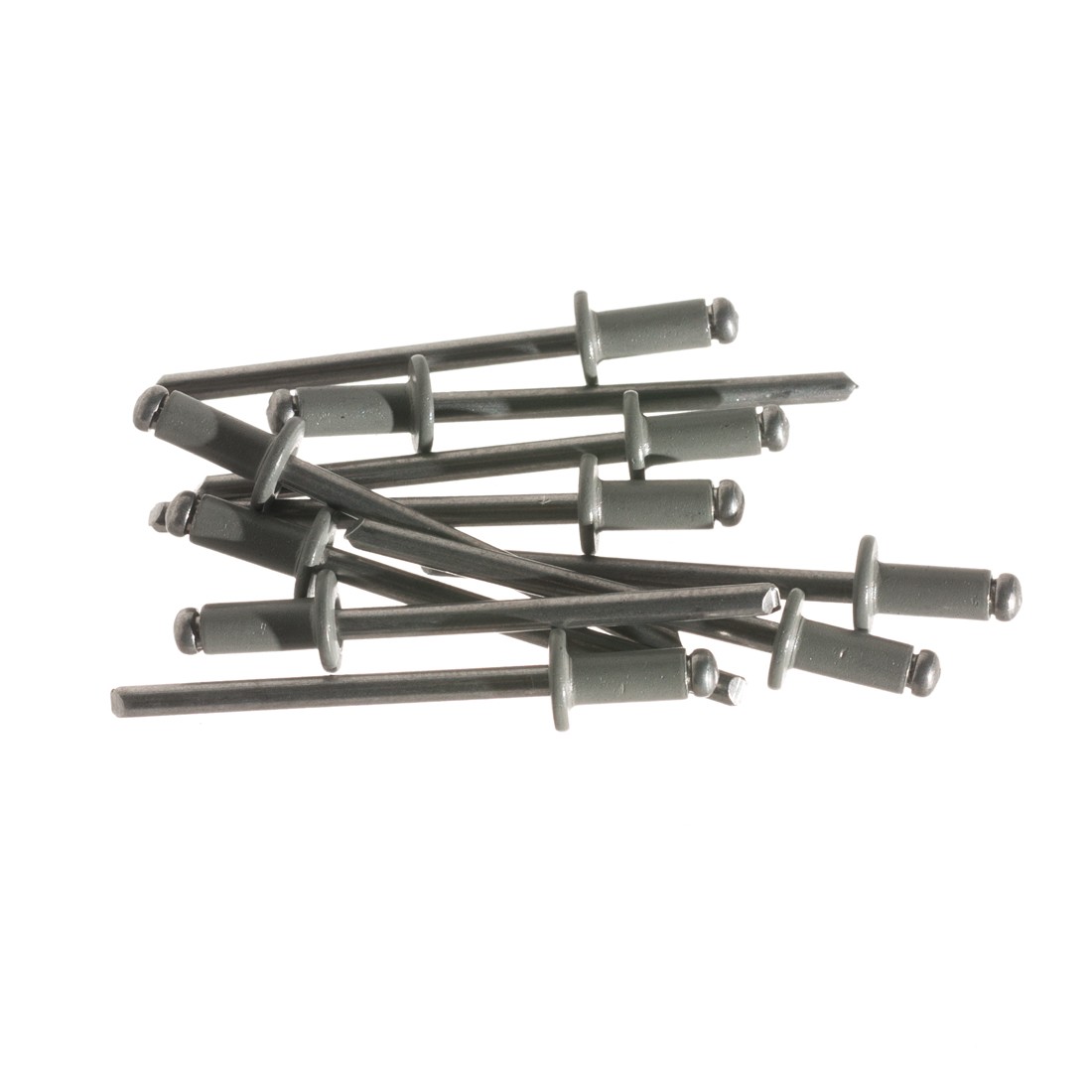

- 10x 1/8" (3mm) Domed Aluminum Rivet - Gray
