Details

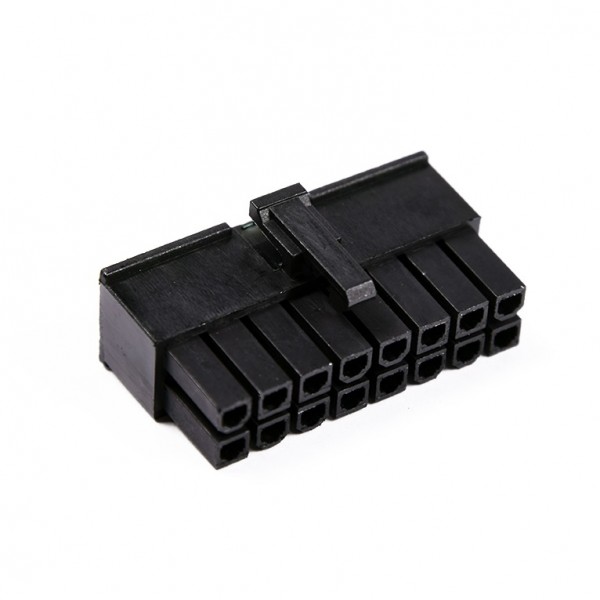

The MMM 16-Pin Female Connector - Black is a bare black 16-pin female connector housing for building or repairing custom power cables. The 16-pin housing is for custom ATX motherboard cables that use proprietary connectors, such as those of Dell and HP systems. ModMyMods chose housings without side wings for a clean, slim look on sleeved cables. The housing takes Female ATX terminal pins.
Properties
- Type
- Female connector housing, 16-pin
- Layout
- Two rows of 8
- Use
- Custom ATX motherboard cables with proprietary connectors (for example Dell, HP)
- Pin type
- Female ATX terminal pins
- Style
- Without side wings
- Color
- Black
- Pieces in the pack
- 1
Made for custom cables
Replace dull beige or faded connectors on a power supply cable set, or build a new cable from scratch: crimp Female ATX terminal pins onto your wires and push them into the housing until they lock. The housing lets you sleeve each wire individually and finish the cable with a matching black connector.
Clean, wingless housing
Many replacement housings have small wings on the sides. ModMyMods looked for connectors without them, so the finished connector has straight sides and sits neatly next to other cables.
Tools and pins
Female ATX terminal pins are available as MMM ATX Female Pin - 5 Pack. To move or remove a pin that is already locked in the housing, use a pin extractor such as the ModMyMods ATX / Mini-Fit Jr Pin Extractor Tool.
Technical data
| Article | MOD-0245 |
| Type | Female connector housing |
| Pins | 16 |
| Layout | Two rows of 8 |
| Terminal pins | Female ATX (sold separately) |
| Use | Custom ATX motherboard cables with proprietary connectors (for example Dell, HP) |
| Color | Black |
Notes
- Check the pinout of your power supply or motherboard before you load the pins. Modular power supply pinouts differ between makers and models, and a wrong pinout can damage your hardware.
In the box
- 1x MMM 16-Pin Female Connector - Black
