Details

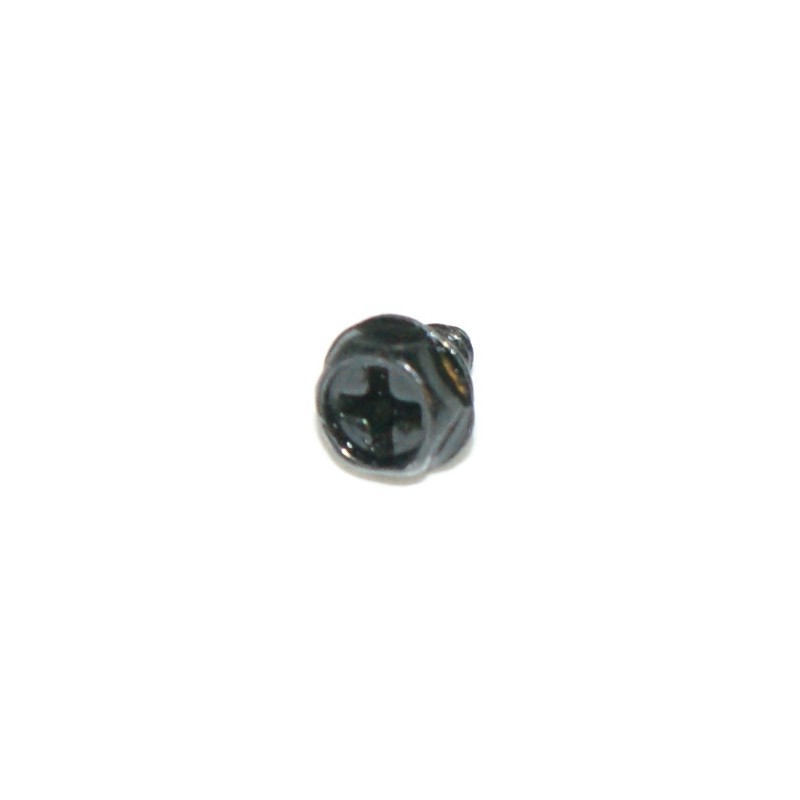

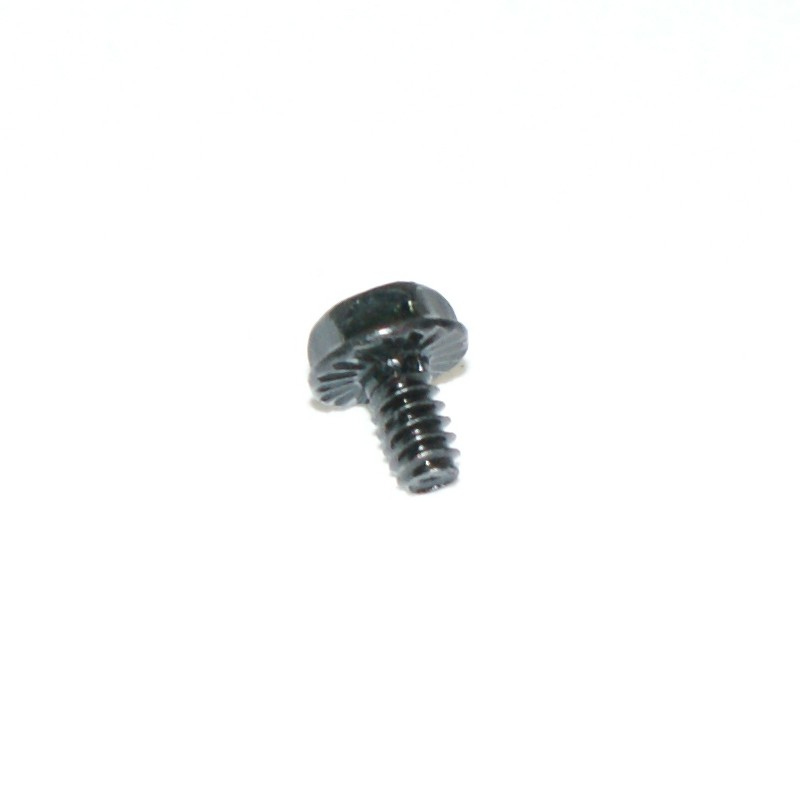

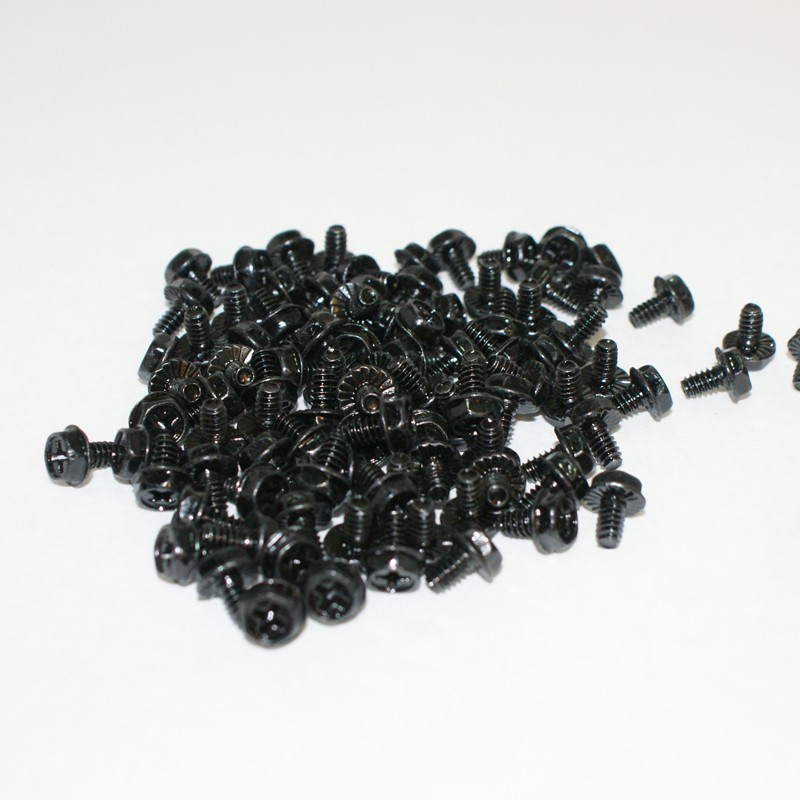

The 6#-32x6 is a short black screw with a 6-32 thread (sold as M3.5) and a 6 mm long shank. The head is a hex washer head with a Phillips recess and a serrated flange underneath, so it can be turned with a screwdriver or a nut driver and bites into the surface as it tightens. It is made of C1018 carbon steel.
Properties
- Type
- Hex washer head screw, Phillips drive
- Thread
- M3.5 (6-32)
- Length
- 6 mm
- Material
- C1018 carbon steel
- Color
- Black
- Pieces in the pack
- 1
The 6-32 thread
6-32 is an inch thread (number 6 size, 32 threads per inch) of about 3.5 mm diameter, which is why it is often sold as M3.5. It is the common thread of PC cases, power supplies and drive mounts. Many radiators also use 6-32 holes.

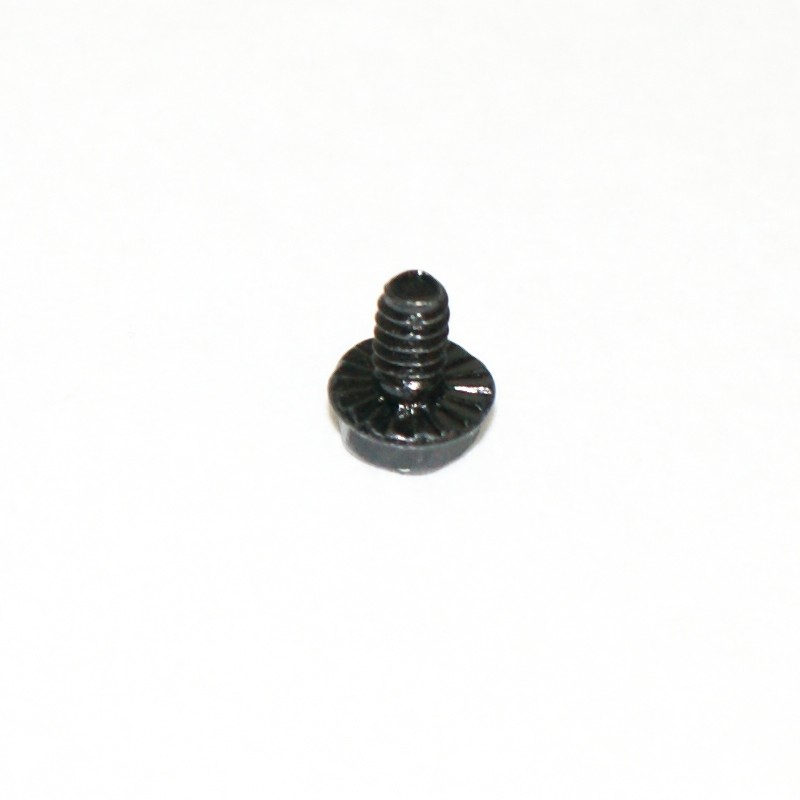

Serrated flange
Ridges under the flange grip the surface when the screw is tightened, which helps the screw stay put under vibration.
Check thread and depth first
Radiators use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your part takes before you choose a screw. On a radiator, a screw that is too long can reach the core and puncture a water channel.
Technical data
| Part number | 6#-32x6 |
| Thread | 6-32 UNC (M3.5) |
| Length | 6 mm |
| Head | Hex washer head with serrated flange, Phillips drive |
| Material | C1018 carbon steel |
| Color | Black |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
In the box
- 1x M3.5 (6-32) x 6mm Black Screw
