Details

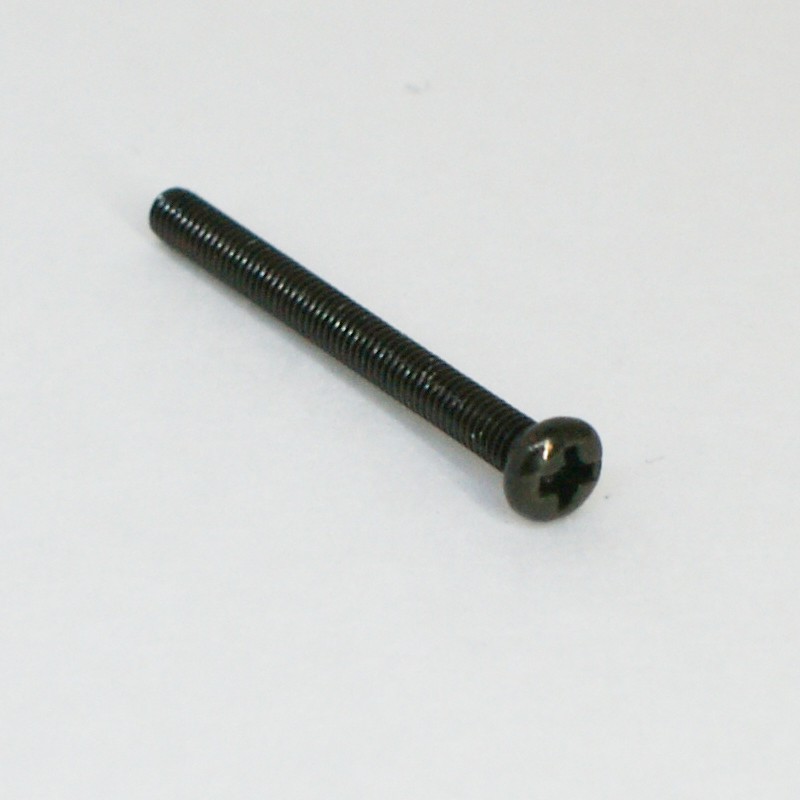

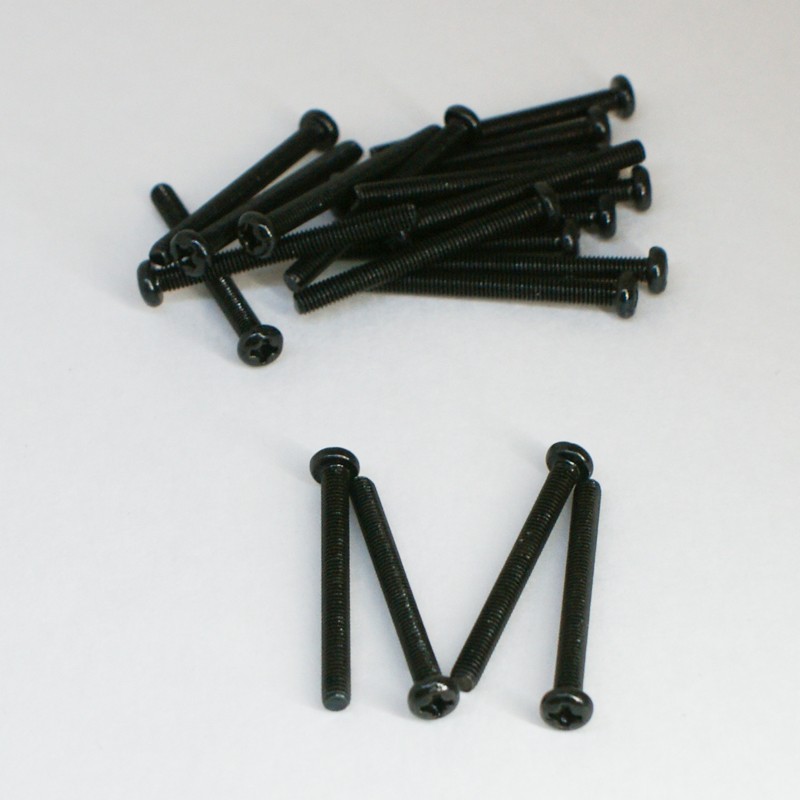

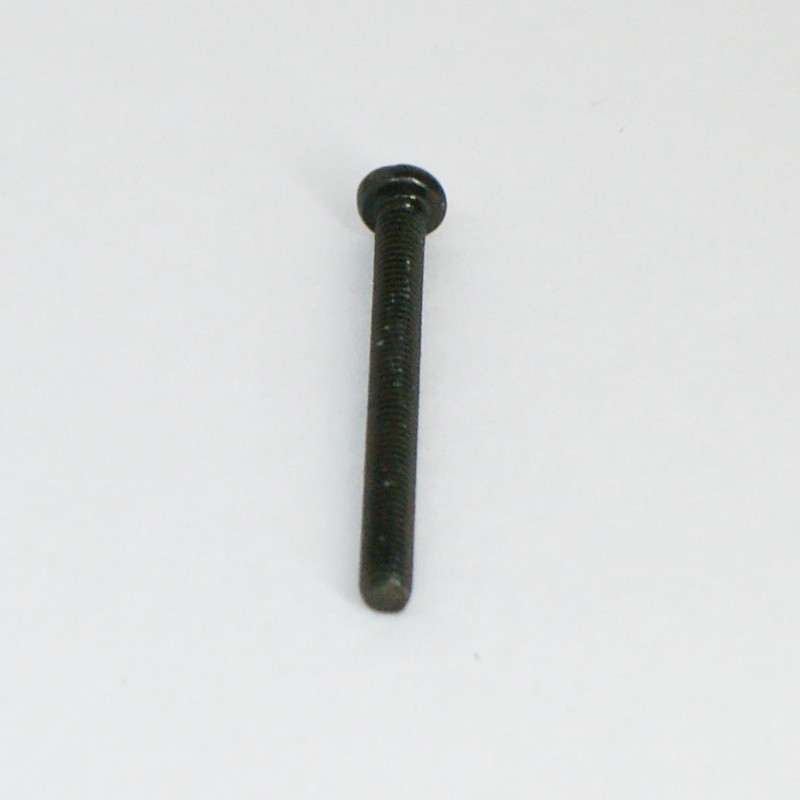

The PM3X30 is a black M3 x 30 mm machine screw with a Phillips pan head. At 30 mm long it is made for fastening fans to radiators: it passes through the mounting hole of a fan frame and screws into the threaded holes of a radiator with M3 thread.
Properties
- Type
- Machine screw, Phillips pan head
- Thread
- M3 x 0.5
- Length
- 30 mm
- Color
- Black
- Pieces in the pack
- 1
Fans onto radiators
Most radiators have threaded holes along each fan position, and the fans are held by long screws that go right through the fan frame. A 30 mm screw passes through a standard 25 mm thick fan and leaves about 5 mm of thread to engage in the radiator.
Check thread and depth first
Radiators use different threads (M3, M4 and 6-32 are the common ones) and different usable thread depths. Check what your radiator takes before you choose a size. A screw that is too long can reach the radiator core and puncture a water channel, so always make sure the screw stops short of the fins.
Black finish
The black screw head blends in with black fans and radiators, so the screws do not stand out in a dark build.
Technical data
| Part number | PM3X30 |
| Thread | M3 x 0.5 |
| Length | 30 mm |
| Head | Pan head, Phillips drive |
| Color | Black |
Notes
- This listing is for one piece. Add the quantity you need to the cart.
In the box
- 1x M3.0 x 30mm Black Screw
