Details

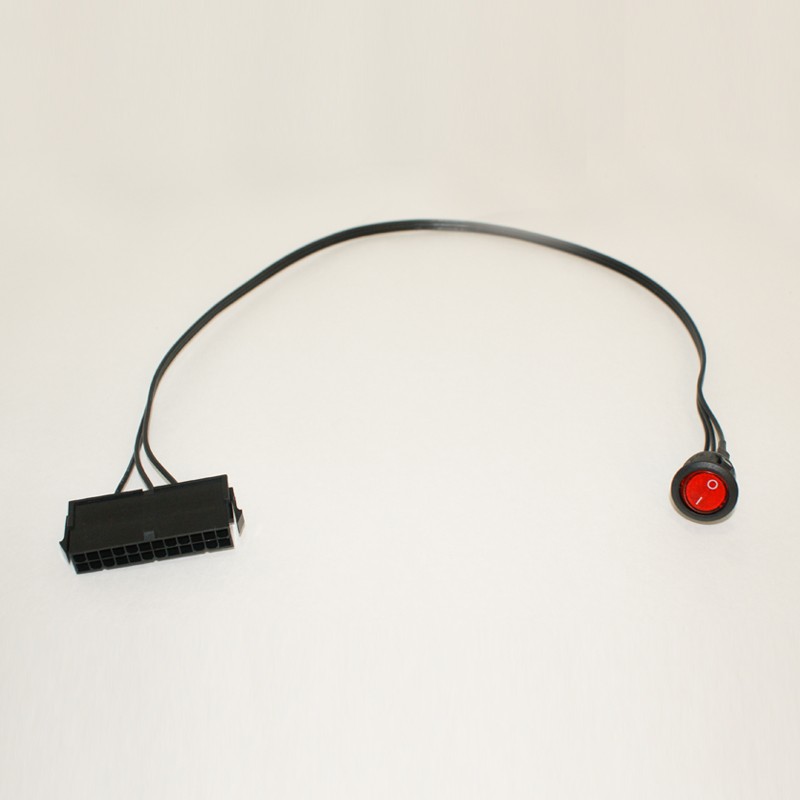

Do you need to turn on an ATX power supply without a motherboard? This jump start switch replaces the paperclip and other rigged methods. It has a 24-pin female Molex connector that plugs onto the main cable of the power supply and spoofs the motherboard connection, and a round red rocker switch on a cable that turns the power supply on and off. The switch has a built-in red light.
Properties
- Type
- Power supply jump start switch
- Connector
- 24-pin female Molex (EPS/ATX)
- Switch
- Round red rocker switch, marked I/O
- Light
- Red light
- Pieces in the pack
- 1
Start a power supply without a motherboard

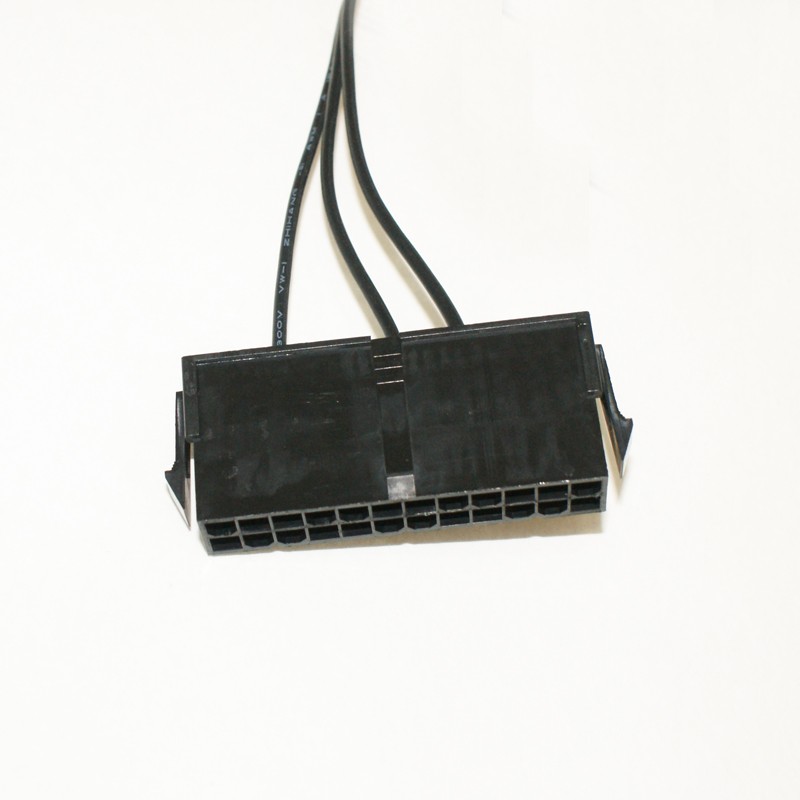

Plug the 24-pin connector onto the main cable of the power supply, flip the switch to I and the power supply starts. Flip it back to O to turn it off. This is the clean way to run a power supply on its own, without bridging pins by hand.
Made for water cooling and testing
The switch is handy for leak testing a new water cooling loop: power only the pump (and fans) from the power supply while the rest of the PC stays off, so a leak cannot reach powered parts. It also helps when you test a power supply, run a pump to fill and bleed a loop, or power fans and lighting on a bench.
Rocker switch on a cable

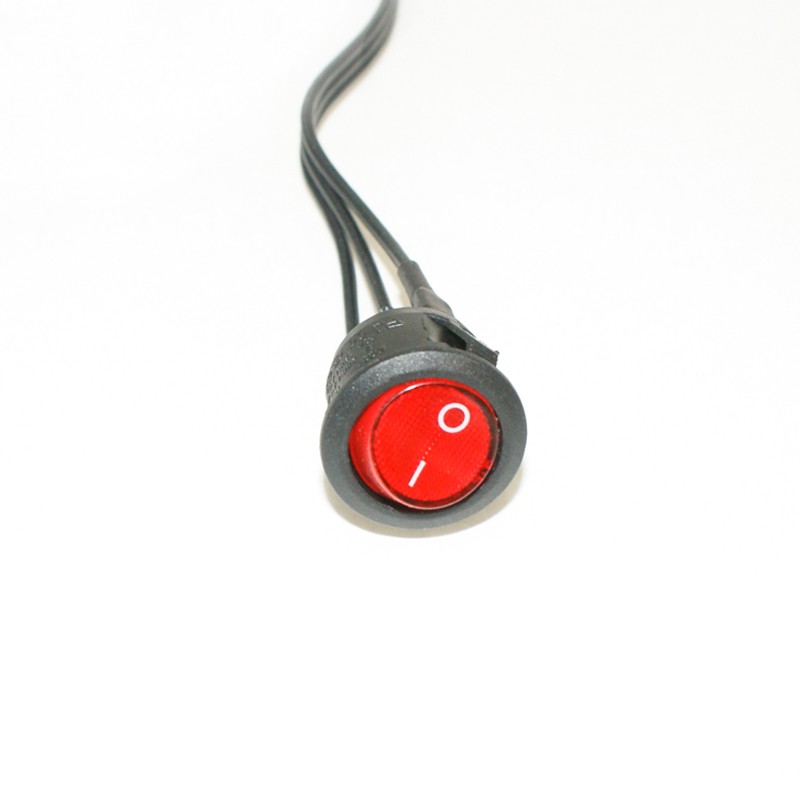

The round rocker switch sits at the end of a three-wire black cable, so you can keep it outside the case or on the bench while the 24-pin connector stays on the power supply cable. This version is the one with a red light.
Technical data
| Part number | JS24-RL |
| Type | EPS/ATX jump start switch |
| Connector | 24-pin female Molex |
| Switch | Rocker switch, round, red, marked I/O |
| Light | Red light |
| Cable | Three wires, black |
Notes
- Switch the power supply off at its rear switch before you connect or remove the jump start switch.
- The jump start switch comes with a red light (MOD-0045) or without a light (MOD-0271). This listing is the version with a red light.
In the box
- 1x Jump Start EPS/ATX 24 Pin Power Supply Jumper On/Off Switch - Red Light
