Details

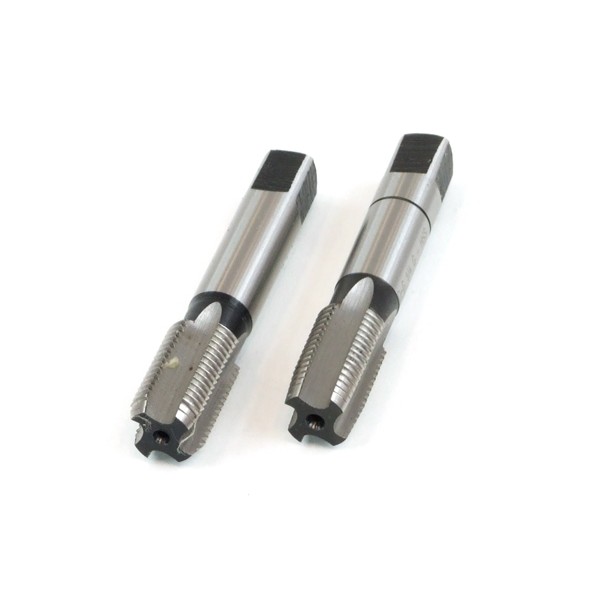

The FORUM G1/4 hand tap set cuts the standard G1/4 thread of PC water cooling, the port thread of blocks, radiators, reservoirs and fittings. The set has a pre-tap and a finishing tap to DIN 5157, for through holes and blind holes. FORUM is a German tool brand.
Properties
- Type
- Hand tap set, 2 pieces
- Thread
- G1/4 (19 threads per inch)
- Standard
- DIN 5157, thread to DIN ISO 228-1 (DIN 259)
- Core hole
- 11.8 mm
- Length
- 70 mm
- Material
- Steel
Pre-tap and finishing tap
The pre-tap is marked with a ring on the shank and cuts first; the finishing tap has no marking and brings the thread to its full size. Together they cut clean threads in through holes and blind holes.
Steam-tempered steel
The taps are steel with a steam-tempered surface, which prevents the tap from cold welding to the workpiece. The shank is reinforced, so the tool stays sharp after repeated use.
How to cut a G1/4 thread
- Drill a core hole of 11.8 mm.
- Cut with the pre-tap (ring marking) first, then with the finishing tap.
- Use a tap wrench on the 9 mm square (not included), a little cutting oil, and back the tap off now and then to break the chips.
Technical data
| Article | 32036 |
| Thread | G1/4, 19 threads per inch |
| Thread standard | DIN ISO 228-1 (DIN 259) |
| Tap standard | DIN 5157 |
| Overall length | 70 mm |
| Shank diameter | 11.0 mm |
| Square | 9.0 mm |
| Required core hole | 11.8 mm |
| Material | Steel, steam-tempered |
| Pieces | 2 (pre-tap with ring marking, finishing tap without marking) |
In the box
- 1x Pre-tap (ring marking)
- 1x Finishing tap (no marking)
