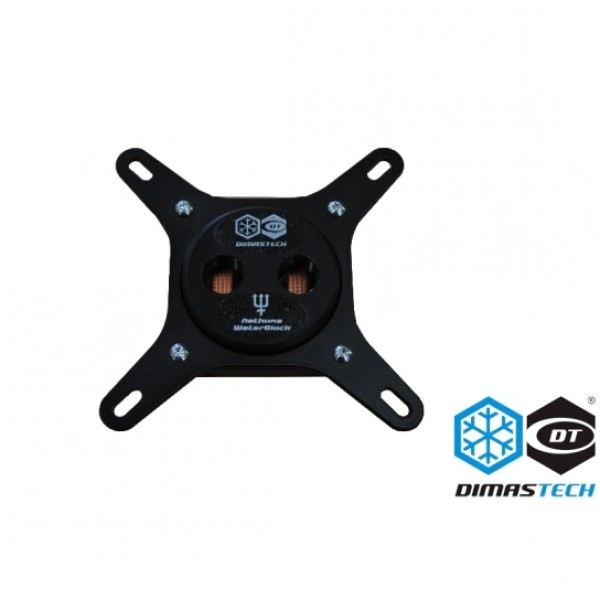

Dimastech® Nethuns WaterBlock

Keeping with the Dimastech® tradition the Dimastech Nethuns offers excellent performance, refined aesthetics, customization and an excellent price to performance ratio.

Key Features:

• Dimastech Nethuns® Water Block comes complete with universal bracket 775/1156/1366 and AM2/AM3 (coming soon), screws and springs.
• Base structure: matrix Micropin
• Optimal operating range: 100 to 500 l / h
• All parts of our Water Block are removable and interchangeable to ensure, if necessary, easy maintenance and cleaning, or a fast substitution of a broken part.

Technical Specifications of Dimastech Nethuns® Water Block

Base:

• Matrix Micropin
• Material: Pure Electrolytic Copper C110 (Size: 55x55mm)
• Inner Workings: Precision micro milling
• External Processing: Grinding, brushing, polishing and lapping Base
• Secured with stainless steel screws
• Manual Final Finishing

Cover:

• Made of Black Delrin
• Internal work carried out by numerically controlled milling
• Outside processing through CNC milling and polishing the final aesthetic
• Custom O-Ring
• Base secured by 8 steel screws
• Finishing with logos & Nethuns Dimastech ® Water Block in white

Compatibility Connections:

• Compatibility compression fittings: maximum diameter of the outer ring of each ring: 25 mm, maximum depth permissible for the thread: 5 mm
• Possibility of mounting fittings tube holder, quick release and compression hose 3 / 8 id 1 / 2 OD up to 25 mm in diameter and maximum depth permissible for the thread: 5 mm

Mounting Bracket:

• Galvanized steel, thickness 1.5 mm
• Precision Laser Cutting
• Phosphate
• Powder Coating

Compatible Processors:

• Intel Socket 775
• Intel Socket 1156 I5
•  Intel Socket 1366 I7
• AM2/AM3 (Coming Soon)

Mounting Hardware :

• Steel length 50mm threaded M4
• Nylon insulating washers (2 sizes)
• Stainless steel bolts  M4
• Knurled nuts M4
• Spring realized in harmonic stainless steel burnished

FITTINGS ARE NOT INCLUDED
