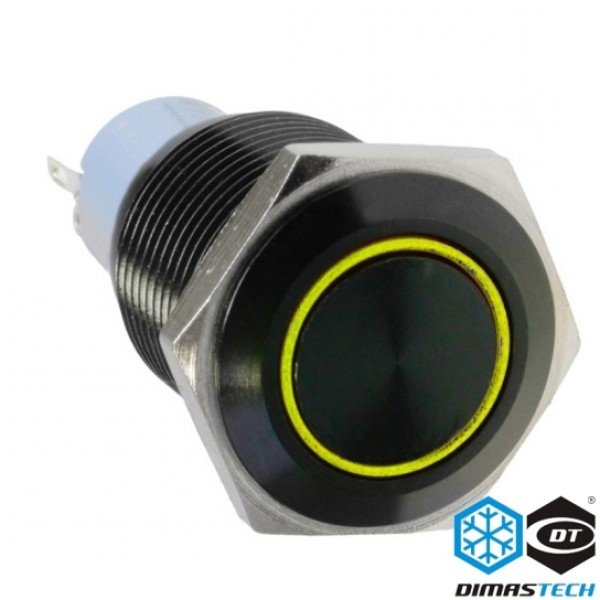

DimasTech® 19mm Vandal Resistant "Momentary" Bulgin Switch - Black Housing - Yellow LED (PD048)

Availability: In stock - Available Now

Sku: PD048

Regular Price: $11.99

Special Price $9.00

Quick Overview

Ring Illuminated Switch
OR

Details

Sick of using the stock power and reset buttons on your custom PC?

Our momentary "Bulgin" style switches are ideal as replacement "Power" or "Reset" switches in your custom PC. Our momentary switches feature an illuminated yellow LED ring that is easy to see both during the day and night and can easily be installed into a 5.25" bay.

These switches are rated for 12V so we cannot accept returns on burnt out switches due to user error.



Techincal Data:

Switch Rating: 5A/250VAC

Contact Resistance: < 50

Insulation Resistance: >1000MΩ

Tempurature Rating: -20°C ~ +55°C

Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

LED Life: 40,000 hours

Panel Thickness: 1 ~ 10mm

Connection Material: Silver Alloy

Protection Rating: IP67, IK10



Switch Configuration:

  • 1 Contact NO
  • 1 Contact NC
  • 1 Contact Power LED



Note: Latching switches are not for power or reset. They only turn a device "ON" when press, then turns "OFF" when pressed again. Example: LED Lighting

Warning: LED is only rated for 12V

Additional Information

Manufacturer Dimastech
Color Black
Switch Type Momentary
Switch Style Vandal Resistant Bulgin
Switch Face Style LED Ring
Switch Size 19mm
Switch Material Stainless Steel
LED Color Yellow
Switch Hole Diameter 19mm
Maximum Switch Voltage 5A / 250V
Material No
Included 1x DimasTech® 19mm Vandal Resistant "Momentary" Bulgin Switch - Black Housing - Yellow LED
