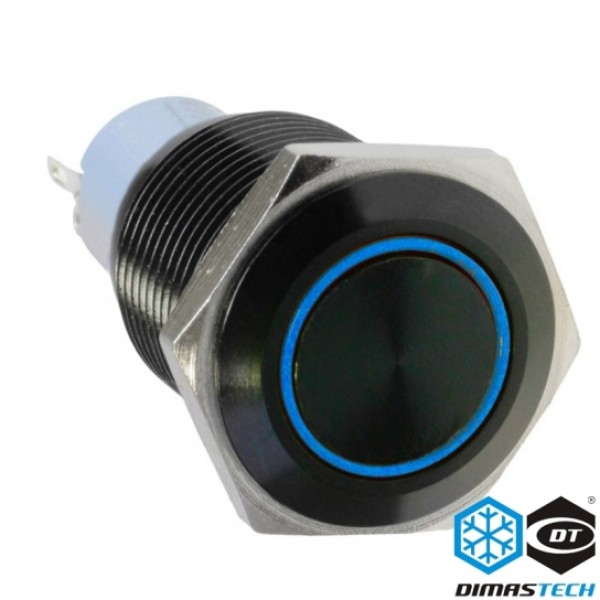

DimasTech® 19mm Vandal Resistant "Latching" Bulgin Switch - Black Housing - Blue LED (PD037)

Availability: In stock - Available Now

Sku: PD037

Regular Price: $12.99

Special Price $9.75

Quick Overview

Ring Illuminated Switch
OR

Details

Every PC modder knows that no PC build is complete without LEDs or lights of some kind. But when it's time for bed, that bright and shiny PC can be a major strain on the eyes. Thanks to the miracle of simple electronic circuits, it is now possible to turn on and off your PC's lights with one easy to install switch.

Our "Bulgin" style latching switches are perfect for use in custom PC builds and can be used to turn on or off any 12volt light or peripheral component.

Featuring an easy to operate push button switch  and an aesthetically pleasing blue LED ring; our latching switches are sure to turn you on. Or off....



Techincal Data:

Switch Rating: 5A/250VAC

Contact Resistance: < 50

Insulation Resistance: >1000MΩ

Tempurature Rating: -20°C ~ +55°C

Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

LED Life: 40,000 hours

Panel Thickness: 1 ~ 10mm

Connection Material: Silver Alloy

Protection Rating: IP67, IK10



Switch Configuration:

  • 2 Contact NO
  • 2 Contact NC
  • 1 Contact Power LED



Note: Latching switches are not for power or reset. They only turn a device "ON" when press, then turns "OFF" when pressed again. Example: LED Lighting

Warning: LED is only rated for 12V

Additional Information

Manufacturer Dimastech
Color Black
Switch Type Latching
Switch Style Vandal Resistant Bulgin
Switch Face Style LED Ring
Switch Size 19mm
Switch Material Stainless Steel
LED Color Blue
Switch Hole Diameter 19mm
Maximum Switch Voltage 5A / 250V
Material No
Included 1x DimasTech® 19mm Vandal Resistant "Latching" Bulgin Switch - Black Housing - Blue LED
