Sick of using the stock power and reset buttons on your custom PC?

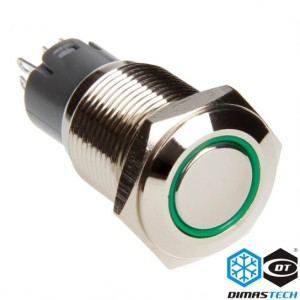

Our momentary "Bulgin" style switches are ideal as replacement "Power" or "Reset" switches in your custom PC. Our momentary switches feature an illuminated green LED ring that is easy to see both during the day and night and can easily be installed into a 5.25" bay.
These switches are rated for 12V so we cannot accept returns on burnt out switches due to user error.
Techincal Data:
Switch Rating: 5A/250VAC
Contact Resistance: < 50mΩ
Insulation Resistance: >1000MΩ
Tempurature Rating: -20°C ~ +55°C
Mechanical Life: 500,000 cycles
Electrical Life: 50,000 cycles
LED Life: 40,000 hours
Panel Thickness: 1 ~ 10mm
Connection Material: Silver Alloy
Protection Rating: IP67, IK10
Switch Configuration:
-
1 Contact NO
-
1 Contact NC
-
1 Contact Power LED
Note: Latching switches are not for power or reset. They only turn a device "ON" when press, then turns "OFF" when pressed again. Example: LED Lighting
Warning: LED is only rated for 12V
Additional Information
Manufacturer | Dimastech |
---|---|
Color | Silver |
Switch Type | Momentary |
Switch Style | Vandal Resistant Bulgin |
Switch Face Style | LED Ring |
Switch Size | 16mm |
Switch Material | Stainless Steel |
LED Color | Green |
Switch Hole Diameter | 16mm |
Maximum Switch Voltage | 5A / 250V |
Material | No |
Included | 1x DimasTech® 16mm Vandal Resistant "Momentary" Bulgin Switch - Silver Housing - Green LED |
