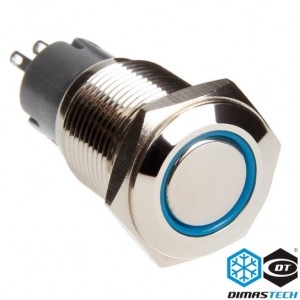

DimasTech® 16mm Vandal Resistant "Momentary" Bulgin Switch - Silver Housing - Blue LED (PD001)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

DimasTech® 16mm Vandal Resistant "Momentary" Bulgin Switch - Silver Housing - Blue LED (PD001)

Availability: In stock - Available Now

Sku: PD001

Regular Price: $8.99

Special Price $6.75

Quick Overview

Ring Illuminated Switch
OR

Details

Sick of using the stock power and reset buttons on your custom PC?

Our momentary "Bulgin" style switches are ideal as replacement "Power" or "Reset" switches in your custom PC. Our momentary switches feature an illuminated blue LED ring that is easy to see both during the day and night and can easily be installed into a 5.25" bay.

These switches are rated for 12V so we cannot accept returns on burnt out switches due to user error.



Techincal Data:

Switch Rating: 5A/250VAC

Contact Resistance: < 50

Insulation Resistance: >1000MΩ

Tempurature Rating: -20°C ~ +55°C

Mechanical Life: 500,000 cycles

Electrical Life: 50,000 cycles

LED Life: 40,000 hours

Panel Thickness: 1 ~ 10mm

Connection Material: Silver Alloy

Protection Rating: IP67, IK10



Switch Configuration:

  • 1 Contact NO
  • 1 Contact NC
  • 1 Contact Power LED



Note: Latching switches are not for power or reset. They only turn a device "ON" when press, then turns "OFF" when pressed again. Example: LED Lighting

Warning: LED is only rated for 12V

Additional Information

Manufacturer Dimastech
Color Silver
Switch Type Momentary
Switch Style Vandal Resistant Bulgin
Switch Face Style LED Ring
Switch Size 16mm
Switch Material Stainless Steel
LED Color Blue
Switch Hole Diameter 16mm
Maximum Switch Voltage 5A / 250V
Material No
Included 1x DimasTech® 16mm Vandal Resistant "Momentary" Bulgin Switch - Silver Housing - Blue LED
