AMD's Zen architecture was a milestone in CPU architecture and a stroke of genius for the Texas chipmaker. But instead of resting on its laurels, AMD has diligently developed the "Zen" processors. With the "Ryzen 3000 and 5000" processor families based on the "Zen2"/"Zen3" architecture, AMD has introduced a chiplet design, for example. For example, the Ryzen 9 5900X consists of a 12 nm I/O die and two CPU dies, which are manufactured in a 7 nm process. However, this chiplet design has also changed the layout of the CPU dies on the package, which has also shifted the thermal center point.
With a processor with only one CPU die under the heatspreader, the "hot spot" is located in the middle of the CPU. However, the chiplet design shifts the "hot spot" to the edge of the processor.
Of course, this also has an influence on the cooling behavior of CPU coolers.
Especially all-in-one water coolers with a round cooling block often do not completely cover the corners of the heatspreader. For an optimal cooling performance, the base plate of the AiO water cooler would have to be moved.
This is where professional overclocker Roman Hartung comes into play to flexibly design the position of the base plate of the AIO water cooling on the processor with the der8auer RYZEN 3000/5000 OC AIO mounting frame.

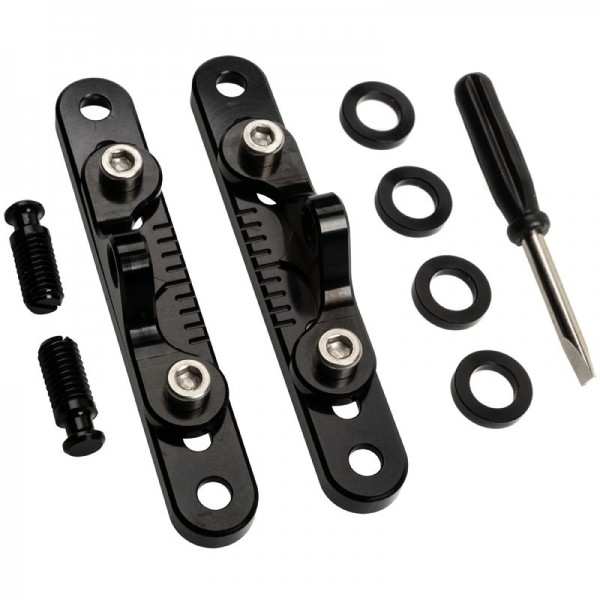

The der8auer RYZEN 3000/5000 OC AIO mounting frame at a glance
- OC-Tool by Roman "der8auer" Hartung
- Temperatures up to 7 °C lower!
- For the AMD Ryzen 3000/5000 processors
- Allows flexible positioning of the CPU cooler
- Replaces the AM4 mount on the motherboard
- Please urgently note the instructions!
der8auer RYZEN 3000/5000 OC AIO mounting frame: Important notes and compatibility
Roman:
name | Manufacturer number | CK article number |
---|---|---|
ASRock X570 Creator | 90-MXBAW0-A0UAYZ | MBAR-308 |
ASRock X570 Phantom Gaming X | 90-MXBAN0-A0UAYZ | MBAR-309 |
ASRock X570 Steel Legend | 90-MXBAR0-A0UAYZ | MBAR-311 |
ASRock X570 Extreme4 | 90-MXBAP0-A0UAYZ | MBAR-312 |
ASRock X570 Phantom Gaming 4 | 90-MXBAU0-A0UAYZ | MBAR-312 |
ASRock X570 Pro4 | 90-MXBAT0-A0UAYZ | MBAR-314 |
ASUS ROG Crosshair VIII Formula | 90MB10Z0-M0EAY0 | MBAS-449 |
ASUS ROG Crosshair VIII Hero | 90MB1100-M0EAY0 | MBAS-450 |
ASUS ROG Strix X570-E Gaming | 90MB1150-M0EAY0 | MBAS-451 |
ASUS ROG Strix X570-F Gaming | 90MB1160-M0EAY0 | MBAS-452 |
ASUS TUF Gaming X570-Plus | 90MB1180-M0EAY0 | MBAS-454 |
ASUS Prime X570-P | 90MB11N0-M0EAY0 | MBAS-457 |
Gigabyte X570 Aorus Xtreme | X570 AORUS XTREME | MBGB-335 |
Gigabyte X570 Aorus Master | X570 Aorus Master | MBGB-336 |
Gigabyte X570 Aorus Ultra | X570 Aorus Ultra | MBGB-337 |
Gigabyte X570 Aorus Pro | X570 Aorus Pro | MBGB-338 |
Gigabyte X570 Aorus Elite | X570 Aorus Elite | MBGB-339 |
Gigabyte X570 Gaming X | X570 Gaming X | MBGB-340 |
Gigabyte X570 UD | X570 UD | MBGB-342 |
MSI MEG X570 Godlike | 7C34-002R | MBMC-347 |
MSI Prestige X570 Creation | 7C36-002R | MBMC-348 |
MSI MPG X570 Gaming Pro Carbon WiFi | 7B93-001R | MBMC-350 |
MSI MPG X570 Gaming Edge WiFi | 7C37-001R | MBMC-351 |
MSI MPG X570 Gaming Plus | 7C37-004R | MBMC-352 |
MSI X570-A Pro | 7C37-003R | MBMC-353 |
In addition, other motherboards are compatible with the der8auer RYZEN 3000/5000 OC AIO mounting frame after a modification. This modification must be carried out by the user himself and it is recommended to carry out this modification only if you have the appropriate know-how and experience. More information on the necessary modifications can be found in the video linked below in the notes.
name | Manufacturer number | CK article number |
---|---|---|
ASUS ROG Crosshair VIII Hero (WI-FI) | 90MB10T0-M0EAY0 | MBAS-448 |
ASUS Pro WS X570-ACE | 90MB11M0-M0EAY0 | MBAS-456 |
Gigabyte X570 I Aorus Pro WiFi | X570 I Aorus Pro WiFi | MBGB-341 |
MSI MEG X570 ACE | 7C35-002R | MBMC-349 |
So far, only X570 motherboards have been tested for compatibility. However, the der8auer RYZEN 3000/5000 OC AIO mounting frame will also be compatible with a variety of older AM4 motherboards in the ATX and E-ATX form factor. With Mini-ITX motherboards, components are often in the way that prevent the kit from being used.
Installation Video
Additional Information
Manufacturer | der8auer |
---|---|
Color | Black |
Included | 1x der8auer RYZEN 3000 OC AIO Mounting Frame |
Material | Aluminum |
