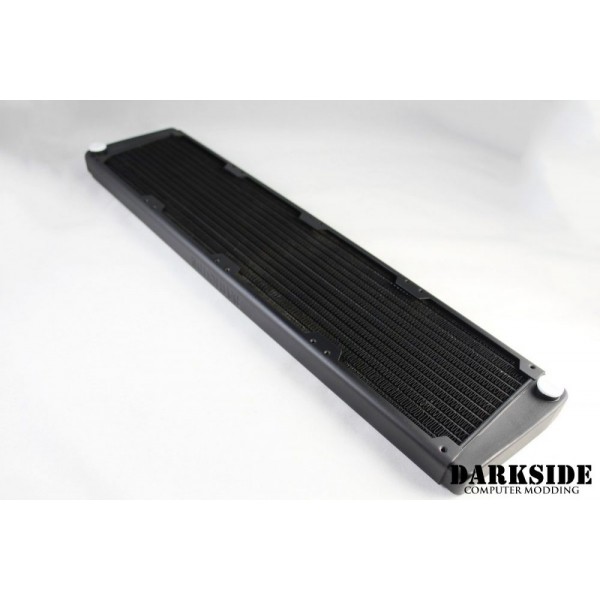

Darkside Cross-Flow Quad LPX480 Extra Slim Radiator (DS-0574)

Name: Darkside Cross-Flow Quad LPX480 Extra Slim Radiator (DS-0574)
Brand: Darkside
SKU: DS-0574
Price: 89.95 USD
Availability: OutOfStock

Availability: Out of stock

Sku: DS-0574

$89.95

Quick Overview

Built for 120mm fans, this radiator is optimized for maximum heat dissipation for both low noise and performance fans.

Be the first to review this product

Email to a Friend

Out of stock. Want an email when it is back? One email when it is back in stock. No account needed, no newsletter.

Specifications

Manufacturer: Darkside
Overall Dimensions: 530 x 121 x 27.5mm (L x W x H)
Color: Black
Radiator Type: 480mm
Radiator Thickness: 30mm
Fan Compatibility: 120mm
Fin Density: 17 FPI
Screw Thread: 6-32
Number of Ports: 2x G1/4
Included: - Radiator
- Mounting 6-32 screws

Details

DarkSide LPX480 is an extreme Low Profile Cross-Flow performance computer water-cooling radiator based on the latest radiator core design. Built for 120mm fans, this radiator is optimized for maximum heat dissipation for both low noise and performance fans.

Radiator features ultra-compact design in two crucial dimensions: radiator thickness and radiator width. Lowered radiator thickness is essential for compact builds with limited clearance, while reduced radiator's width minimizes interference with computer components such as memory.

Radiator side panels are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation if desired. Two ports are ready for any G1/4 threaded fitting to be used.

Specification:
Dimensions: 530 x 121 x 27.5mm (L x W x H)
Liquid Capacity: ~330mL
FPI: 17
Port threads: 2x G1/4
Fan compatibility: any 120x120x25mm fan
