Details

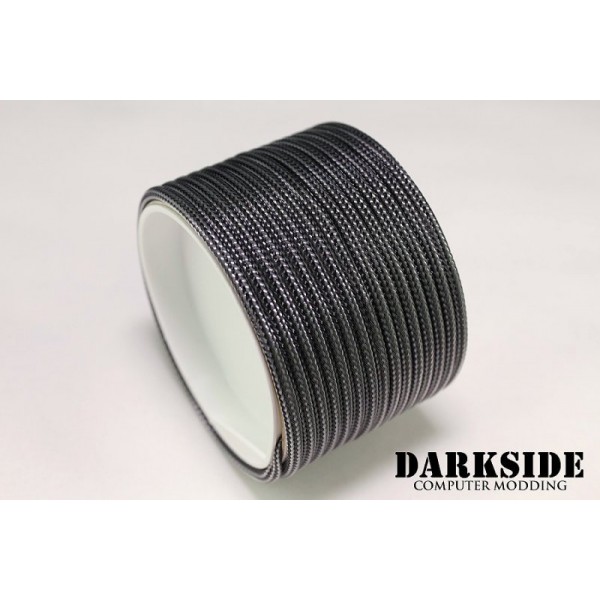

DarkSide 4mm (5/32") high density cable sleeving in Graphite is braided sleeving with an ultra tight weave for custom cable modding. The 4mm size is typically used for single wire sleeving projects or for small bundles, such as the 2-3 wires of a fan cable or LED wires.
Properties
- Type
- High density braided cable sleeving
- Size
- 4mm (5/32")
- Expands to
- about 9 mm
- Typical use
- Single wire projects and small bundles such as 2-3 fan wires or LED wires
- Color
- Graphite
- Sold by
- The foot, custom cut
Ultra tight high density weave
DarkSide high density sleeving is woven with an ultra tight weave for custom cable modding. The dense braid covers the wires underneath, so a cable set of mixed black, red and yellow wires turns into neat, even runs in the color you choose.
Single wires and small bundles
The 4mm size is typically used for single wire sleeving projects or for small bundles, such as the 2-3 wires of a fan cable or LED wires. At rest it measures 4 mm and it opens up to about 9 mm.
Cut to the length you need
ModMyMods custom cuts this sleeving to order and prices it per foot: the length you order is the length you receive. Add up the lengths of all the wires you want to sleeve and order the total.
Working with braided sleeving
- Pushed together, braided sleeving widens; pulled, it narrows and closes around the wire. That is how it slides over a wire and then sits snug.
- For single-wire sleeving, take the terminal out of the connector, slide the sleeve over the wire, finish the ends and put the terminal back in its original position.
- Finish the cut ends so they do not fray, usually with a short piece of heat shrink tubing at each end.
- Plan a little extra length per wire for finishing the ends.
Other sizes
DarkSide high density sleeving is also available in 2mm (5/64") for single AWG18 power supply wires, in 6mm (1/4") for a few power wires or a 4-wire RGB LED cable, and as 10mm (3/8") SATA sleeving for SATA data cables.
Technical data
| Brand | DarkSide (DazMode) |
| Type | High density braided cable sleeving |
| Nominal size | 4 mm (5/32", 0.16") |
| Maximum expanded size | about 9 mm |
| Typical use | Single wire projects and small bundles such as 2-3 fan wires or LED wires |
| Color | Graphite (graphite metallic) |
| Sold by | The foot, custom cut to order |
Notes
- ModMyMods carries DarkSide 4mm high density sleeving in Acid Yellow UV, Aquamarine Blue, Arabica Brown, Arctic Camo, Black, Commando UV, Coral UV, Dark Blue UV, Frosted White, Gold, Graphite, Green UV, Gun Metal, Hot Pink UV, Lava II UV, Metal Jacket, Metallic Red, Opaque Red, Orange II, Purple UV, Red UV, Titanium Gray, White and Yellow II UV. This listing is Graphite.
- Colors on screen can look slightly different from the sleeving in hand, especially the UV colors, which are photographed both in normal light and under UV light.
In the box
- 1x DarkSide 4mm high density cable sleeving, Graphite, cut to the length ordered (per foot)
