Details

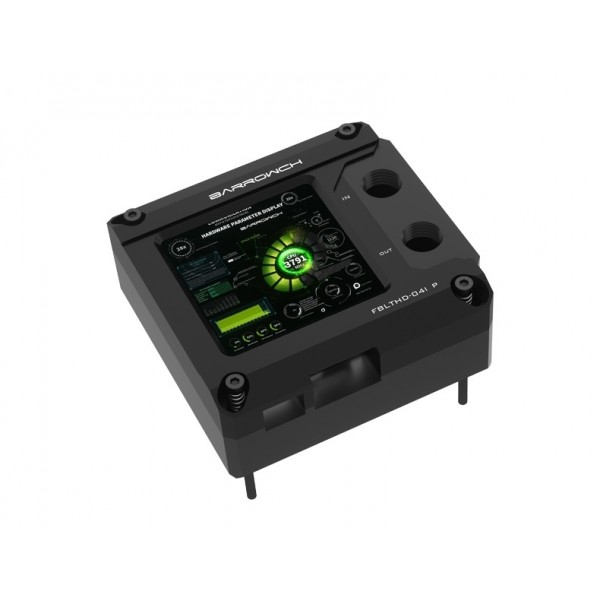

The Barrowch FBLTHD-04I V2 is an Intel CPU water block with a 2.9 inch full-color LCD screen built into the top. The screen takes a standard HDMI video signal, so it can show anything from your computer, such as AIDA64 system monitoring. This is the POM edition: black acetal body, black aluminum panel, nickel-plated copper base and ARGB lighting.
Properties
- Screen
- 2.9 inch LCD, 1440 x 1440 px, 60 Hz
- Video input
- HDMI
- Screen power
- Micro USB, 5V
- Ports
- G1/4", 2 (IN and OUT)
- Size
- 93.2 x 90 x 45 mm
- Material
- Acetal (POM) body, CNC-machined aluminum panel, nickel-plated copper base
- Color
- Black
- Lighting
- ARGB, Barrow LRC 2.0
A screen on your CPU block
Barrow fits this small block with a 2.9 inch full-color LCD at 1440 x 1440 pixels, 1100:1 contrast and a 60 Hz refresh rate. The screen works like a small second monitor: it shows the whole content of the computer video signal you send to it.
Standard HDMI video
The video input is a standard HDMI port, and Barrow includes a 50 cm HDMI cable. You need a free HDMI output on your computer to use the display.
AIDA64 monitoring screens
Barrow says the display is made to work with AIDA64, and that it keeps releasing new monitoring layouts based on the AIDA64 system monitoring software, so you can change what the screen shows.
5V USB power
The screen is powered through a standard Micro USB port at 5V, which Barrow says is safer and can be plugged in while the system runs. The included USB cable connects to a USB power adapter, a power bank or a computer USB port (not included).
ARGB lighting
The block carries Barrow's LRC 2.0 lighting system. Barrow says it supports synchronous and independent control and works with the 5V addressable lighting headers of some motherboards. A Barrow controller is not included.
Machined panel, copper base
The panel around the screen is CNC-machined from one piece and anodized. Under the acetal body, the base is nickel-plated copper with a micro channel structure.
Before you install
- Connect the cables first and then mount the block; Barrow says fitting the cables afterwards can be awkward because of the space around the block.
- If you mount the block turned, rotate the picture in the display settings of your operating system.
- The screen is fragile. Do not press on it.
Technical data
| Model | FBLTHD-04I (POM edition) |
| Platform | Intel |
| Screen type | LCD module |
| Screen size | 2.9 inch |
| Resolution | 1440 x 1440 px |
| Contrast | 1100:1 |
| Refresh rate | 60 Hz |
| Interfaces | HDMI video, Micro USB power (5V) |
| Threads | G1/4" |
| Ports | 2 (IN and OUT, 26 mm apart) |
| Dimensions | 93.2 x 90 x 45 mm |
| Material | Acetal (POM), aluminum, nickel-plated copper |
| Lighting | ARGB, LRC 2.0 |
| Color | Black |
Notes
- Barrow shows this block with a black or silver panel and with a clear acrylic or an acetal (POM) body. This listing is the black POM edition.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrowch FBLTHD-04I V2 CPU water block
- 1x Screw pack
- 1x HDMI video cable (50 cm)
- 1x USB power cable
- 1x Lighting cable
