Details

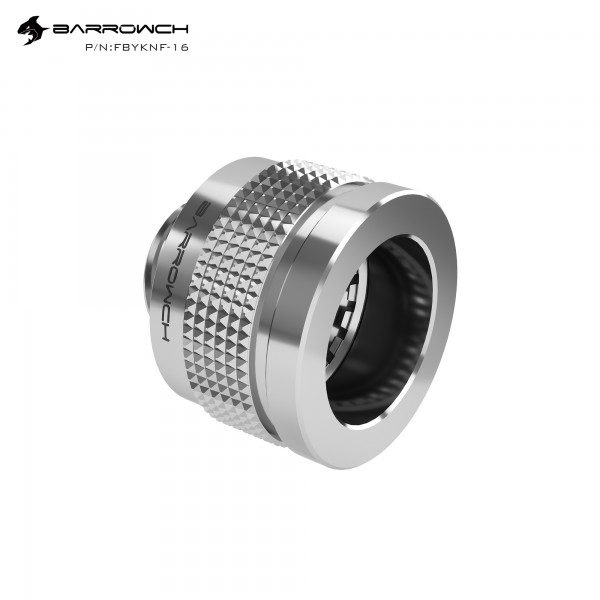

The Barrowch FBYKNF-16 is a Wolverine series compression fitting for 16 mm OD hard tubing, with a standard G1/4" male thread. Barrowch calls it an anti-shedding fitting: it is made to hold the tube so it does not pull out of the fitting. The H59 brass body is finished in shiny silver, with a diamond-knurled grip ring and the Barrowch name on the side.
Properties
- Type
- Hard tube compression fitting
- Tube size
- 16 mm OD hard tube
- Thread
- G1/4" male
- Size
- 24 mm diameter, 17 mm tall plus 5 mm thread
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Made to hold the tube
Barrowch names this the Wolverine anti-shedding fitting. Through the opening you can see a ring of small teeth around the tube seat; Barrowch builds the fitting to keep the hard tube from sliding out once the cap is tightened.
H59 brass with a double-protected finish
Barrowch says it uses high-quality H59 brass for the body and protects the surface with a double electroplating process, which it says gives a fine texture that is solid and durable.
Diamond knurling for grip
The middle ring carries a fine diamond knurl, so the fitting is easy to grip and turn by hand when you screw it into a port and when you tighten the cap on the tube.
Standard G1/4" thread
The 5 mm long G1/4" male thread fits the standard ports of PC water cooling blocks, radiators, reservoirs and pumps from Barrow and other makers.
The same fitting for 14 mm tube
Barrowch makes the same Wolverine fitting for 14 mm OD hard tube as the FBYKNF-14, which is 22 mm wide; the 16 mm version is 24 mm wide.
Technical data
| Model | FBYKNF-16 |
| Series | Barrowch Wolverine |
| Type | Hard tube compression fitting, anti-shedding |
| Tube | 16 mm OD hard tube |
| Thread | G1/4" male |
| Outer diameter | 24 mm |
| Height without thread | 17 mm |
| Thread length | 5 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- This fitting is made for hard tube with a 16 mm outer diameter.
- Barrowch sells this fitting in black and shiny silver. This listing is the shiny silver version.
- Barrowch notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrowch G1/4 16mm Rigid Hardtube Wolverine Anti-Shedding Fitting - Silver
